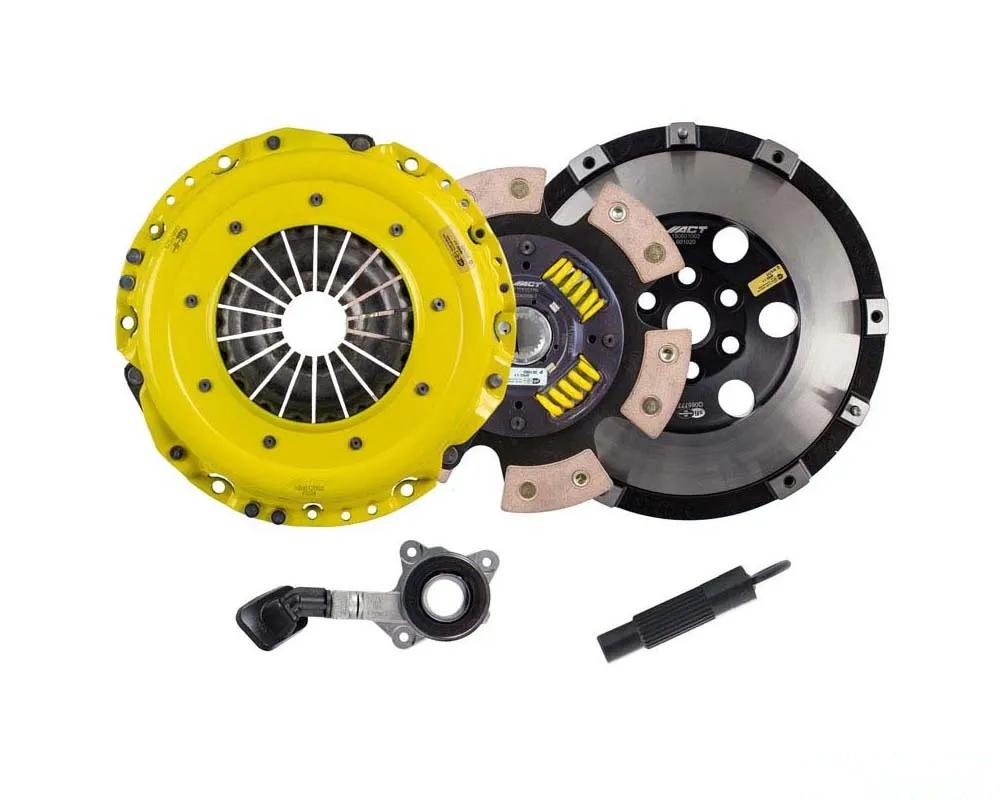

ACT FF5-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT FF5-HDG6 Heavy Duty/Race Sprung 6 Pad Kit is engineered for those who demand precision and performance from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend overall clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring reliability under extreme conditions.

Key Features

• Designed for light to moderate pedal effort, with aggressive engagement and potential for mild gear rattle.
• Moderate friction life is enhanced by ACT's unique diaphragm design, ideal for high horsepower street and race applications.
• Constructed with select ceramic friction materials for superior heat tolerance and performance.
• 100% clamp load tested and dynamically computer balanced, ensuring smooth operation at high RPMs.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Heavy Duty
• Torque Capacity: 640 ft/lbs (0.73 over OE)
• Product Weight: 30.1 lbs

Installation Notes

Installation requires the use of the included ACT flywheel. Expect gear rattle when paired with the ACT single mass flywheel. Pressure plate bolts (M8-1.25 x 20mm) are included for a complete install.

Fitment

This kit is specifically designed for the Ford Focus 2013-2018. Ensure compatibility before installation.

Included Components

• Flywheel: Included (Streetlite type)
• Release Bearing: Included
• Grease: Included
• Alignment Tool: Included
• Pressure Plate Bolts: Included
