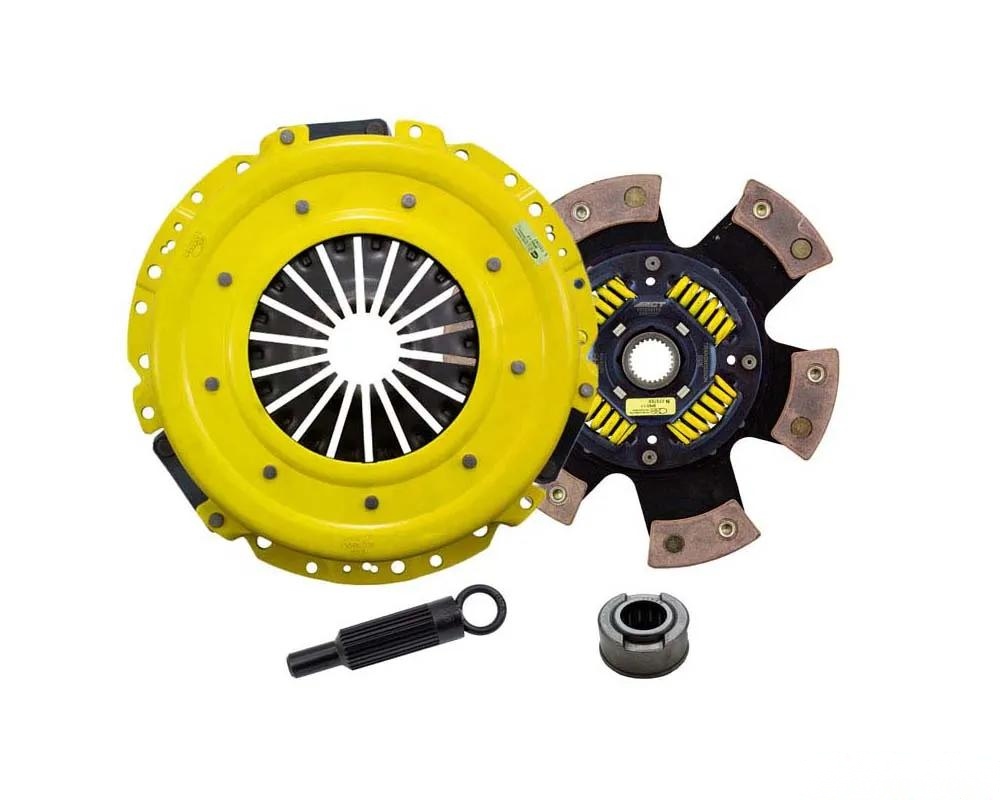

ACT FM5-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT FM5-HDG6 Heavy Duty/Race Sprung 6 Pad Kit is engineered for high-performance applications, providing an ideal solution for those who demand precision and durability from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that enhances clamp load while minimizing deflection, ultimately extending clutch life.

Construction and Design

Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring superior performance and reliability. The precision cover stampings of the pressure plate contribute to its rigidity and consistency, making it a dependable choice for both street and race environments.

Disc Features

The 6-pad, spring-centered race disc is a standout feature of the FM5-HDG6 kit. This design effectively dampens torsional vibrations, providing resilience under extreme conditions. With thicker retainer stampings and wraparound spring windows, the spring retainers offer enhanced support, reducing stress concentrations and boosting overall strength.

Performance Characteristics

• Light to moderate pedal effort with aggressive engagement, resulting in mild gear rattle.
• Moderate friction life, optimized by ACT's innovative diaphragm design.
• Constructed with select ceramic friction materials for high heat tolerance and maximum performance.
• Ideal for high horsepower street or race applications.
• Each unit is 100% clamp load tested and dynamically computer balanced, ensuring smooth operation at high RPMs.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 11 in (280 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 29.4 lbs
• Torque Capacity: 770 ft/lbs
• Torque Capacity Over OE: 0.85

Fitment

This kit is compatible with the following models:

• Ford Mustang 2005-2014
• Ford Mustang GT 2005-2010

Installation Notes

For detailed installation instructions, click here.
