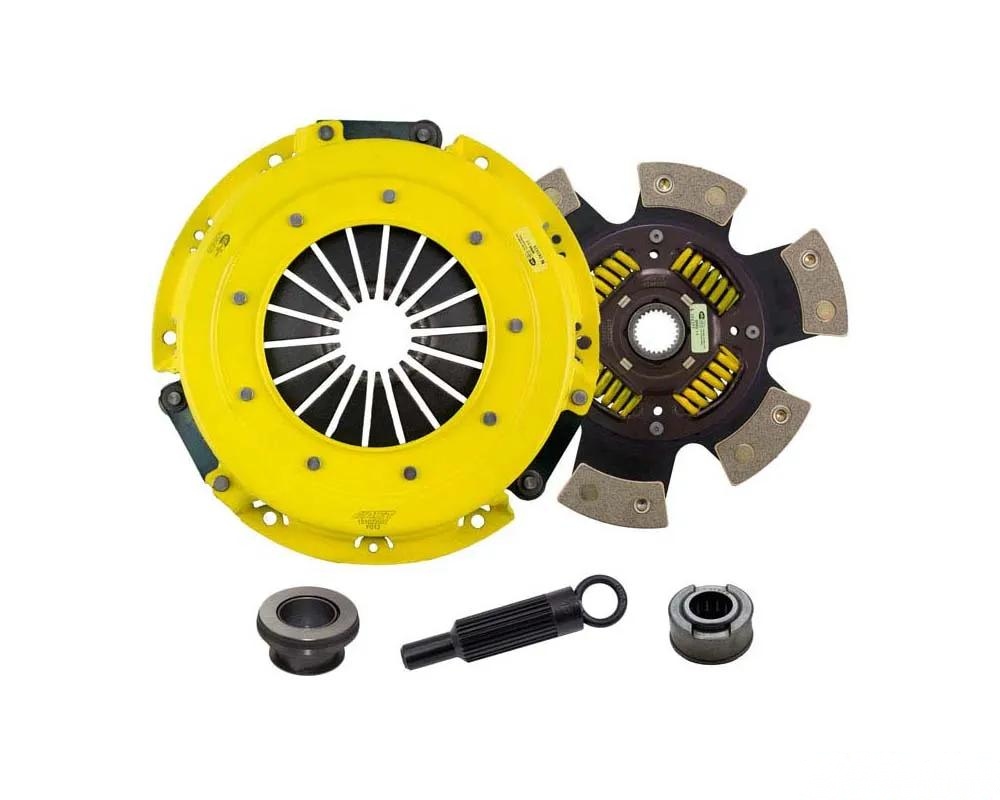

Introducing the FM8-HDG6 from ACT, a robust clutch kit designed for those who demand performance and reliability. This Heavy Duty/Race Sprung 6 Pad Kit features ACT’s renowned pressure plate, known for its superior clamp load and durability. With an exclusive diaphragm design, it minimizes deflection while maximizing clutch life, making it an excellent choice for both street and race applications.

Customers have praised the FM8-HDG6 for its impressive performance. One user noted, "The engagement is aggressive, but it shifts like a dream. I can feel the difference in power delivery!" Another remarked, "After installing this kit, my Mustang feels more responsive than ever. It’s definitely worth the investment."

The FM8-HDG6 kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, ensuring longevity even under extreme conditions. The spring retainers are designed with wraparound spring windows and thicker stampings, enhancing strength and reliability. While the engagement may feel harsher, it allows for quicker shifting, which is especially beneficial for high-performance driving.

Features:

• Light to moderate pedal effort with aggressive engagement.
• Moderate friction life, extended by ACT’s unique diaphragm design.
• Engineered with select ceramic materials for high heat tolerance.
• Ideal for high horsepower street or race use.
• 100% clamp load tested for smooth high RPM reliability.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 10.5 in (266 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 22.1 lbs
• Torque Capacity: 620 ft/lbs
• Torque Capacity Over OE: 0.84

Fitment:
Ford Mustang 1994-2004
Ford Mustang GT 1996-2001
Ford Mustang SVT Cobra 1996-1998

Upgrade your ride with the FM8-HDG6 and experience the difference in performance and reliability that ACT delivers.
