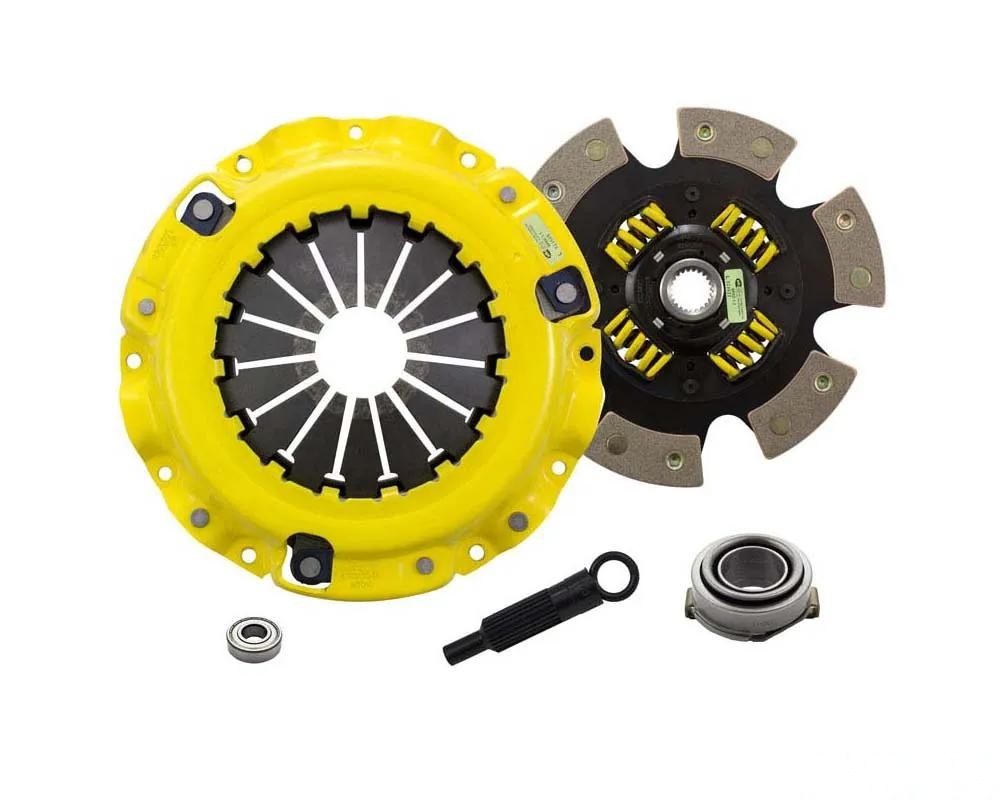

ACT Z64-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT Z64-HDG6 kit is designed for those who demand performance without compromise. This Heavy Duty pressure plate is one of ACT's most popular offerings, engineered to enhance your driving experience whether on the street or the racetrack. With its exclusive diaphragm design, this kit increases clamp load, minimizes deflection, and extends the life of your clutch.

Customers have praised the Z64-HDG6 for its robust performance, often noting how it transforms their driving dynamics. One user shared, "I installed this kit in my Mazda MX-6, and the difference was night and day! The engagement is aggressive, but the shifts are so much quicker now." Another customer mentioned, "Perfect for my Ford Probe—definitely a solid upgrade!"

Features

• Light to moderate pedal effort with aggressive engagement
• Moderate friction life, enhanced by ACT's unique diaphragm design
• Carefully engineered and precisely assembled for maximum reliability
• Ideal for high horsepower applications, both street and race
• 100% clamp load tested and dynamically balanced for smooth high RPM performance

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 16.2 lbs
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 0.72

Compatibility

This kit is confirmed to fit the following vehicles:

• Ford Probe (1989-1992)
• Mazda 626 (1988-1991)
• Mazda MX-6 (1988-1992)

Installation Instructions

For detailed installation instructions, please CLICK HERE.
