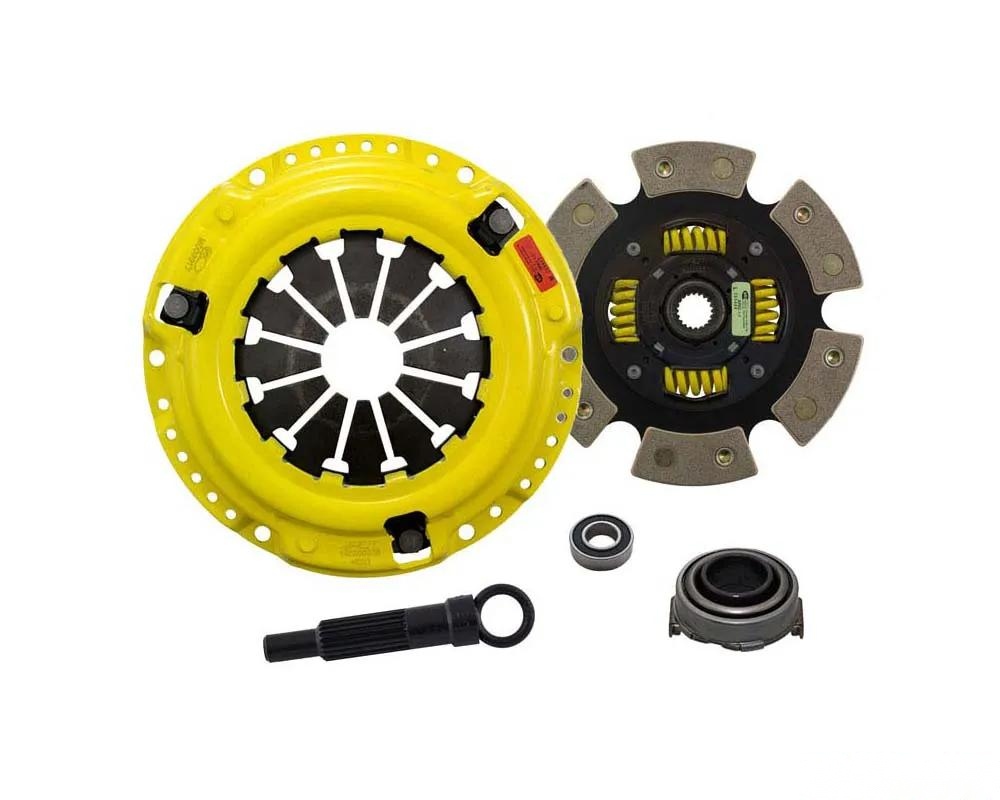

ACT HC5-HDG6 Heavy Duty Clutch Kit

The ACT HC5-HDG6 is a top-tier Heavy Duty/Race Sprung 6 Pad Kit designed for those who demand performance and reliability from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load while minimizing deflection. This thoughtful engineering translates to longer clutch life and improved performance, making it a favorite among enthusiasts.

Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring that it can withstand the rigors of high-performance driving. The precision cover stampings of the pressure plate provide necessary rigidity and consistency, which are crucial for maintaining performance under stress.

The 6-pad, spring-centered race disc is a standout feature of this kit. Designed to dampen torsional vibrations, it offers enhanced resilience in challenging conditions. Customers have noted that while the engagement may feel harsher compared to standard clutches, the trade-off is worth it for the quicker shifts and improved responsiveness. One user remarked, "The HC5-HDG6 transformed my driving experience; the shifts are so much faster and precise!"

Features:

• Light to moderate pedal effort with aggressive engagement and mild gear rattle.
• Moderate friction life, extended by ACT's exclusive diaphragm design.
• Engineered with select ceramic friction materials for high heat tolerance.
• Ideal for high horsepower street or race applications.
• 100% clamp load tested and dynamically computer balanced for reliable high RPM performance.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 11.1 lbs
• Torque Capacity: 300 ft/lbs
• Torque Capacity Over OE: 0.84

Fitment:

This clutch kit is confirmed to fit the following vehicles:

• Acura EL (1997-2005)
• Honda Civic (1992-2005)
• Honda del Sol (1993-1997)

Installation Instructions:

• For detailed installation instructions, CLICK HERE.
