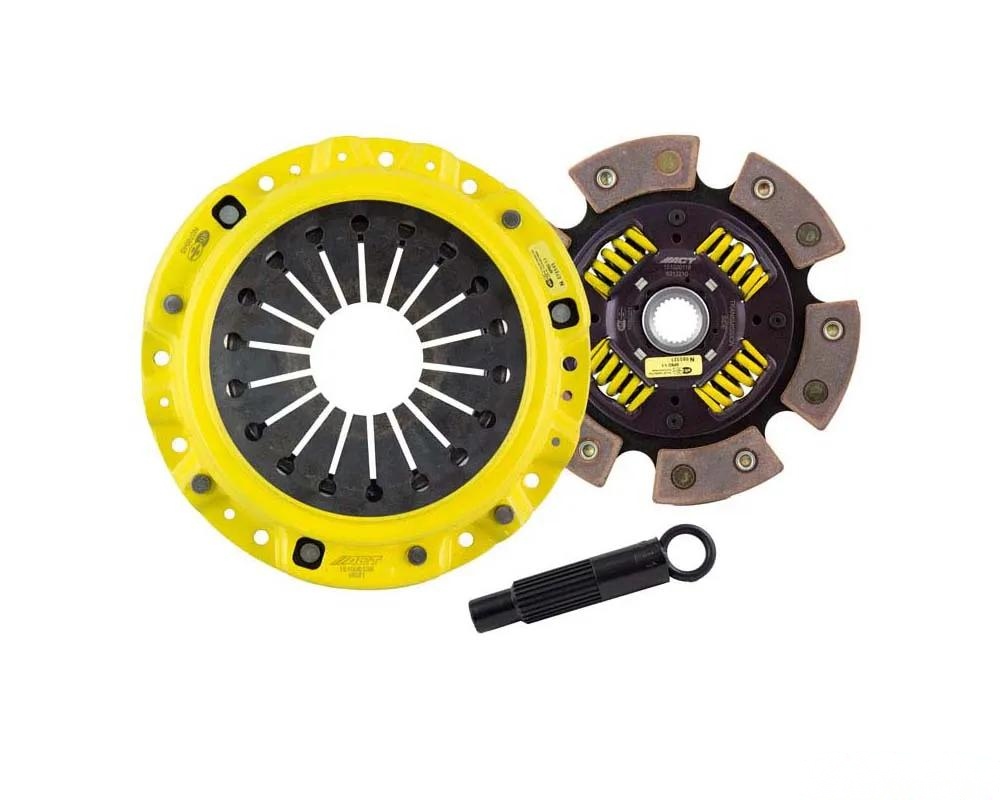

ACT HS1-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT HS1-HDG6 kit is designed for performance enthusiasts seeking a robust clutch solution. This kit features ACT's renowned Heavy Duty pressure plate, engineered with an exclusive diaphragm design that enhances clamp load, minimizes deflection, and extends clutch longevity. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring superior performance characteristics.

Key Features

• Light to moderate pedal effort with aggressive engagement, producing OE to mild gear rattle.
• Moderate friction life, optimized by ACT's unique diaphragm design.
• Constructed with select ceramic friction materials for high heat tolerance and maximum performance.
• Ideal for high horsepower applications, whether on the street or track.
• Thoroughly clamp load tested and dynamically computer balanced for reliable high RPM operation.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: No
• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight: 13.9 lbs
• Torque Capacity: 475 ft/lbs
• Torque Capacity Over OE: 0.78

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

This kit is compatible with the Honda S2000 from 2000 to 2009. Ensure proper fitment by confirming your vehicle specifications before purchase.

Important Notes

• This kit does not include bearings.
