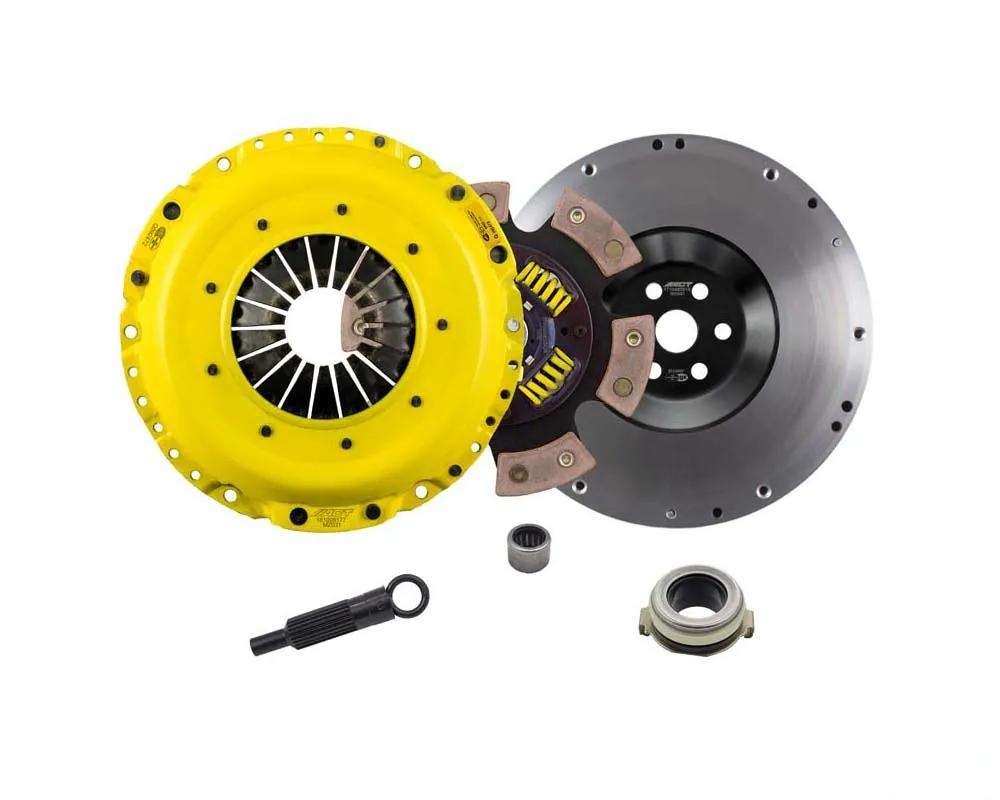

If you're looking to take your clutch game to the next level, the ACT HD/Race Sprung 6 Pad Kit ZX5-HDG6 is where it's at. This kit packs a punch with ACT's Heavy Duty pressure plate, which is pretty much the backbone of this setup. The cool thing about these pressure plates is their unique diaphragm design. It ramps up the clamp load, cuts down on deflection, and helps your clutch last longer. Every diaphragm goes through a four-stage heat treatment, so you know it’s built to perform. Plus, the precision cover stampings give it that extra rigidity and consistency you want when you're pushing your ride to the limit.

Now, let’s talk about the 6-pad, spring-centered race disc. This isn't just a fancy name; it actually does a great job of dampening torsional vibrations, which is crucial when you're really laying down the power. Sure, the engagement is a bit harsher, but that just means faster shifts, which is a must for anyone who’s serious about performance. It's designed for larger clutch sizes, so it can handle more heat without breaking a sweat.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Light to moderate pedal effort, with aggressive engagement that might rattle some gears.
• Moderate friction life, thanks to ACT's smart diaphragm design.
• Engineered with select ceramic friction materials to handle high heat and deliver max performance.
• Perfect for that high horsepower street or race setup.
• Each unit is 100% clamp load tested and dynamically balanced to keep things smooth at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Flywheel Type: Streetlite
• Product Weight: 36.2 lbs
• Torque Capacity: 574 ft/lbs
• Torque Capacity Over OE: 0.93

Notes:

• This is a conversion kit that includes the ACT Streetlite flywheel and pressure plate bolts (M8-1.25 x 16mm).

Products Fitment:

• Mazda Mazda 3 (2007-2013)
• Mazda Mazda 6 (2006-2007)
