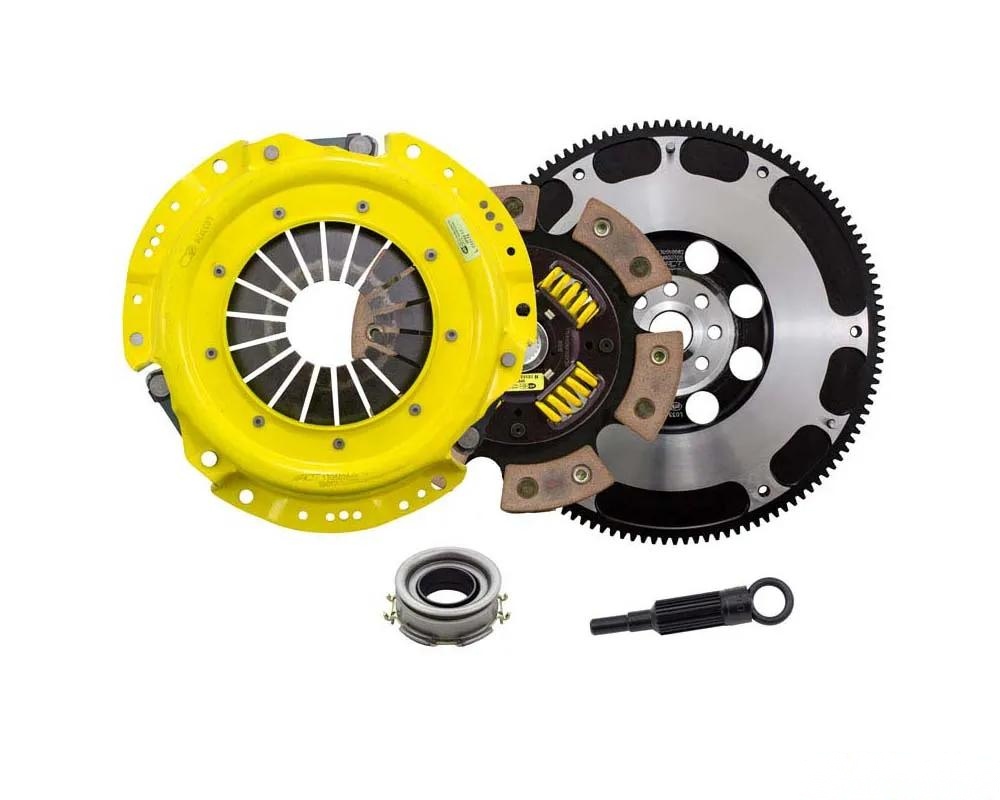

Upgrade Your Clutch with the ACT SB7-HDG6 Kit

If you're looking to enhance the performance of your 2013-2016 Scion FRS, 2013-2020 Subaru BRZ, or 2015-2021 Toyota GT-86, the ACT SB7-HDG6 Heavy Duty/Race Sprung 6 Pad Kit is your ticket to a more robust and responsive driving experience. This kit is designed specifically for high-performance applications, making it a perfect choice for both street and track enthusiasts.

Why Choose the SB7-HDG6?

The SB7-HDG6 features ACT's renowned Heavy Duty pressure plate, which employs an exclusive diaphragm design. This innovation boosts clamp load, minimizes deflection, and significantly extends clutch life. Each diaphragm goes through a rigorous four-stage heat-treating process, ensuring top-notch performance when you need it most. With precision cover stampings, this pressure plate offers exceptional rigidity and consistency, making it a reliable choice for spirited driving.

Performance Features

• Light to moderate pedal effort for daily drivability.
• Aggressive engagement that brings excitement to every shift.
• Moderate friction life, enhanced by ACT’s exclusive diaphragm design.
• Constructed with high-quality ceramic friction materials for superior heat tolerance.
• 100% clamp load tested and dynamically balanced for smooth high RPM operation.

Technical Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Torque Capacity: 349 ft/lbs, which is 1.07 times over OE
• Product Weight: 26.6 lbs
• Pressure Plate Type: Heavy Duty
• Flywheel Type: Streetlite (included)
• Grease and alignment tool included for hassle-free installation

Installation Instructions

Ready to dive into the installation process? For detailed instructions, CLICK HERE.

Real-World Application

Owners of the Subaru BRZ have reported that the SB7-HDG6 kit transforms their driving experience, providing quicker shifts and more direct engagement. One BRZ owner shared, “After installing the ACT SB7-HDG6, I noticed a significant difference in responsiveness during spirited drives. The clutch feels solid and has held up beautifully, even during track days.”

Important Notes

• This kit is a conversion kit that includes the ACT Streetlite flywheel, which is necessary for installation.
• Flywheel bolts (M10-1.0 x 25mm) and pressure plate bolts (M8-1.25 x 16mm) are included.
• Estimated ship date: 10/31/24.

Fitment

The ACT SB7-HDG6 kit fits the following models:

• Scion FRS (2013-2016)
• Subaru BRZ (2013-2020)
• Toyota GT-86 (2015-2021)

Upgrade your clutch system today and experience the difference in performance with the ACT SB7-HDG6 kit!
