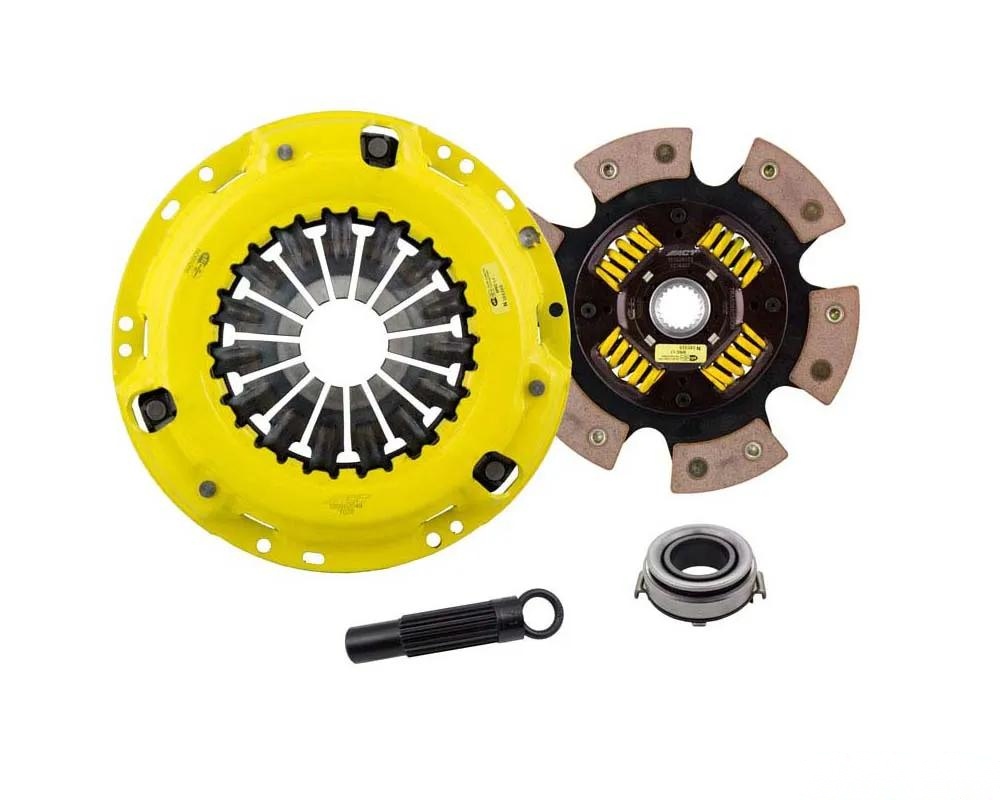

ACT TC7-HDG6 Heavy Duty/Race Sprung 6 Pad Clutch Kit

The ACT TC7-HDG6 Heavy Duty/Race Sprung 6 Pad Kit is engineered to meet the demands of high-performance driving. Featuring ACT's most sought-after Heavy Duty pressure plate, this kit utilizes a unique diaphragm design that enhances clamp load while minimizing deflection, ensuring extended clutch life even under rigorous conditions. Each diaphragm undergoes a meticulous four-stage heat-treating process, resulting in superior performance and durability.

Key Features

• Light to moderate pedal effort with aggressive engagement, producing OE to mild gear rattle.
• Moderate friction life, optimized by ACT's exclusive diaphragm design.
• Constructed with select ceramic friction materials, providing high heat tolerance for maximum performance.
• Ideal for high horsepower applications, whether on the street or the track.
• Each unit is 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 400 ft/lbs
• Torque Capacity Over OE: 0.65
• Product Weight: 15.3 lbs
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide here.

Fitment

• Scion tC 2006-2010
• Scion xB 2008-2015
• Toyota Corolla 2009-2012
• Toyota Matrix 2009-2013

This clutch kit is designed for enthusiasts looking to enhance their vehicle's performance without compromising reliability. Whether on the street or at the track, the ACT TC7-HDG6 delivers the strength and responsiveness needed for spirited driving.
