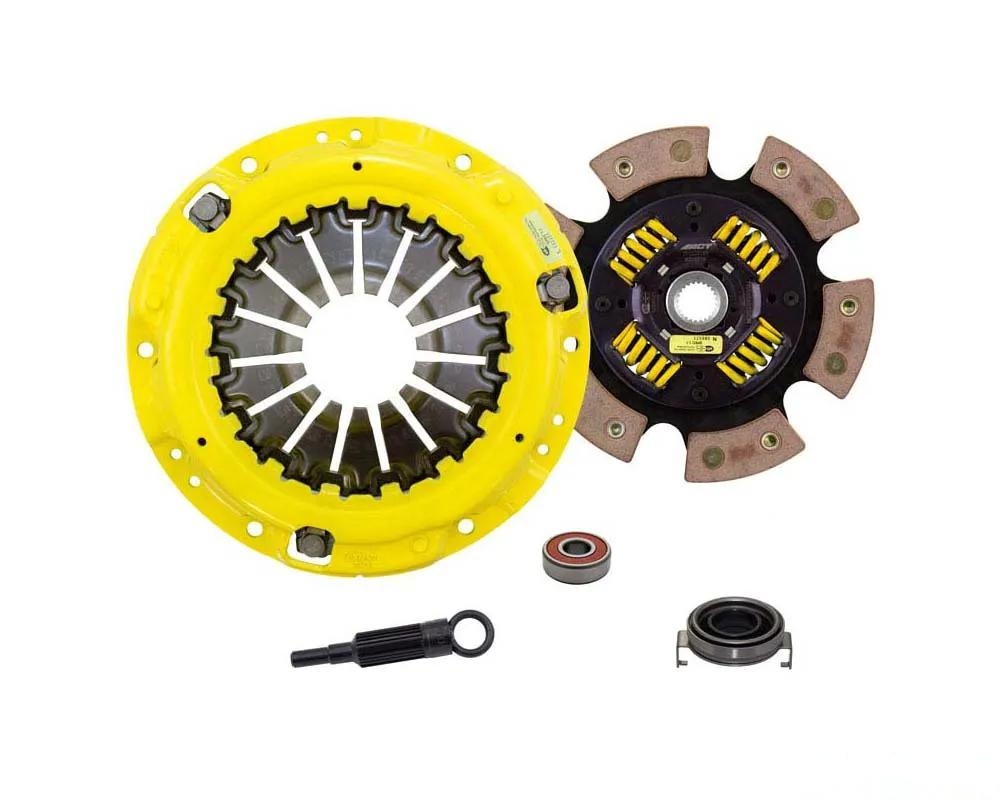

If you're looking to beef up your clutch game, the ACT HD/Race Sprung 6 Pad Kit SB5-HDG6 is where it’s at. This kit comes with ACT's heavy-duty pressure plate, which is a favorite among folks who push their cars to the limit. The unique diaphragm design cranks up the clamp load, meaning it holds on tight and lasts longer, which is exactly what you want when you're putting the pedal to the metal.

What’s cool about these pressure plates is that they go through a four-stage heat-treating process. This means they can handle the heat better than most. The precision cover stampings add rigidity, so you know it’s built to last. The real star here is the 6-pad, spring-centered race disc. It’s designed to dampen those torsional vibrations that can mess with your performance. Sure, engagement is a bit harsher, but that just means you get quicker shifts—perfect for those track days.

This kit is recommended for high horsepower setups, whether you’re hitting the streets or the race track. It’s all about reliability at high RPMs, and trust me, you’ll appreciate the 100% clamp load testing and dynamic balancing that comes with it. Just be ready for some aggressive engagement and a bit of gear rattle.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Light to moderate pedal effort with aggressive engagement—just what you need for spirited driving.
• Moderate friction life, thanks to that sweet diaphragm design ACT has going on.
• Carefully engineered and precisely assembled with high heat-tolerant ceramic materials for top-notch performance.
• Perfect for high horsepower street or race use; it won’t let you down.
• Each unit is clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9 in (228 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 14.9 lbs
• Torque Capacity: 535 ft/lbs
• Torque Capacity Over OE: 0.69

Products Fitment:

• Saab 9-2X 2006
• Subaru Baja 2006
• Subaru Forester 2006-2008
• Subaru Legacy 2005-2012
• Subaru Outback 2005-2009
• Subaru WRX 2006-2018
