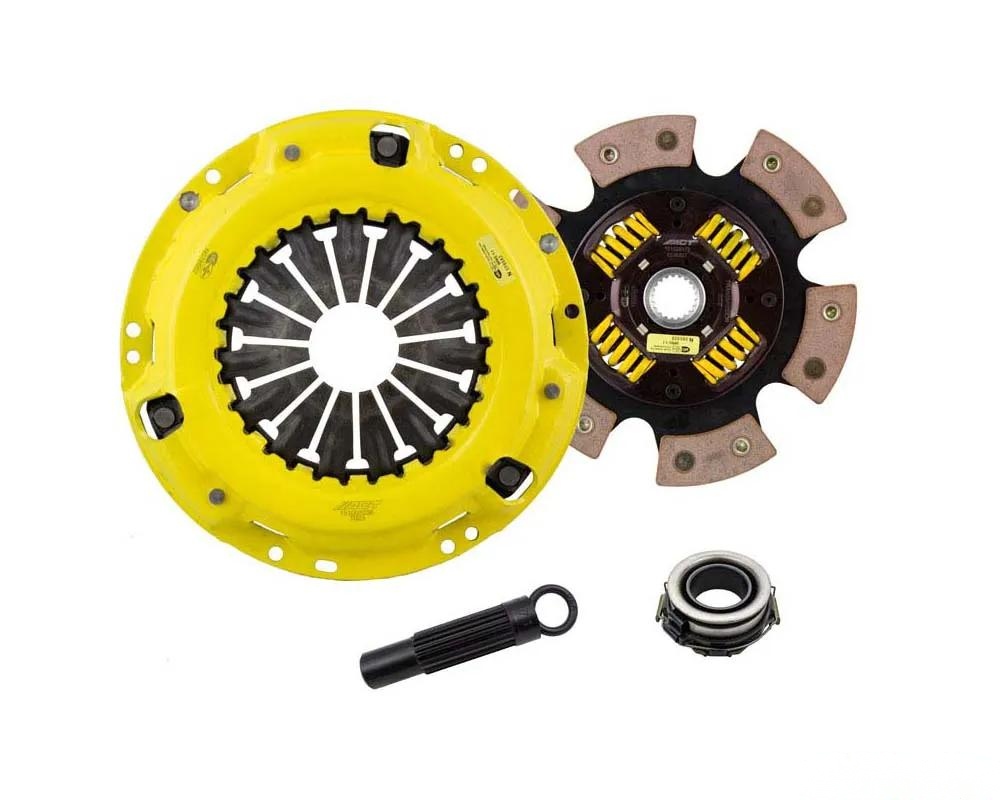

ACT TY3-HDG6 HD/Race Sprung 6 Pad Kit

The ACT TY3-HDG6 HD/Race Sprung 6 Pad Kit is engineered for those who demand durability and performance from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that enhances clamp load, minimizes deflection, and extends clutch life. Each diaphragm undergoes a rigorous four-stage heat treatment process, ensuring exceptional performance under stress.

Key Features

• Light to moderate pedal effort with aggressive engagement.
• Moderate friction life, enhanced by ACT's innovative diaphragm design.
• Precision-engineered with select ceramic friction materials for superior heat tolerance.
• Ideal for high horsepower applications, both street and race.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 500 ft/lbs
• Weight: 15 lbs
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Confirmed Fitment

• Lexus ES250 (1990-1991)
• Toyota Camry (1988-2001)
• Toyota Celica (1988-1989)
• Toyota RAV4 (1996-2000)

This kit is designed for performance-oriented drivers who need a robust clutch solution capable of handling higher torque loads while maintaining smooth engagement. The 6-pad, spring-centered disc configuration allows for faster shifting, making it a suitable choice for competitive environments.
