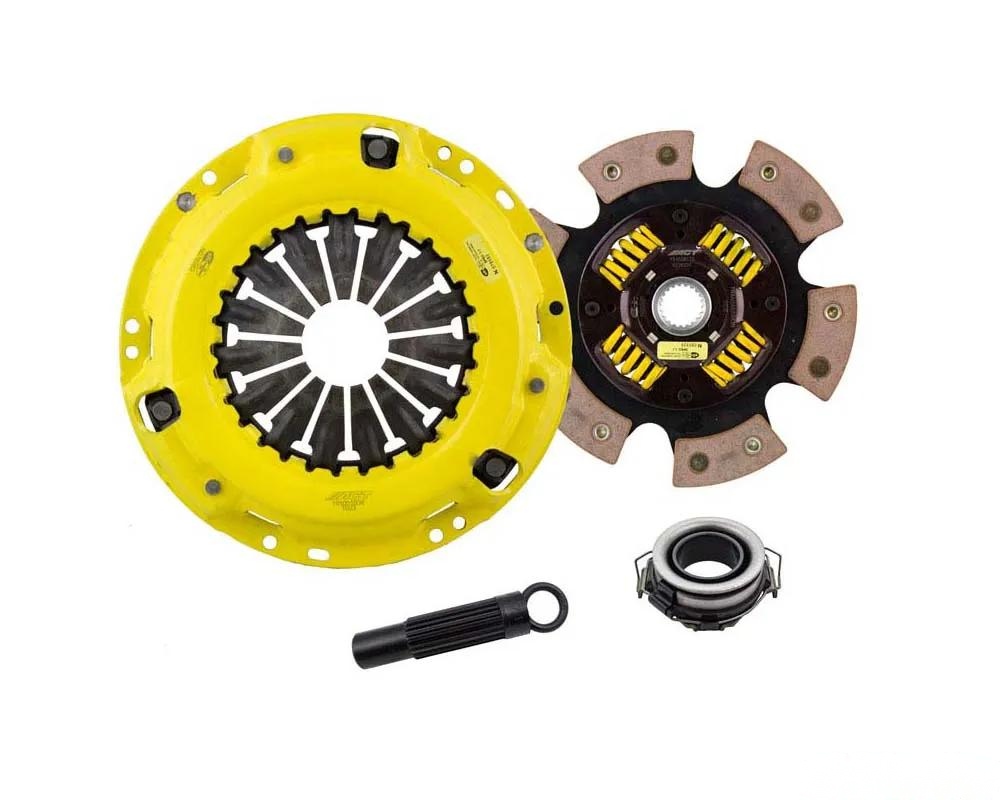

ACT TC4-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT TC4-HDG6 Heavy Duty/Race Sprung 6 Pad Kit is engineered for those who demand reliability and performance from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm configuration that enhances clamp load while minimizing deflection. The result is improved clutch life and performance, especially under high-stress situations.

Construction and Design

Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional durability and performance. The precision cover stampings of the pressure plate provide necessary rigidity and consistency, making it a dependable choice for both street and race applications.

Clutch Disc Features

The TC4-HDG6 includes a 6-pad, spring-centered race disc, which is specifically designed to dampen torsional vibrations while resisting failure in extreme conditions. ACT’s spring retainers feature wraparound spring windows and thicker stampings, enhancing strength and reliability. While the engagement is more aggressive, this design allows for quicker shifts, making it ideal for high-performance driving.

Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 500 ft/lbs
• Weight: 15 lbs
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Grease Included: Yes
• Disc Type: Sprung

Installation Notes

For detailed installation instructions, refer to the installation guide.

Fitment

This kit is confirmed to fit the following model:

• Toyota Celica 1989-1993
