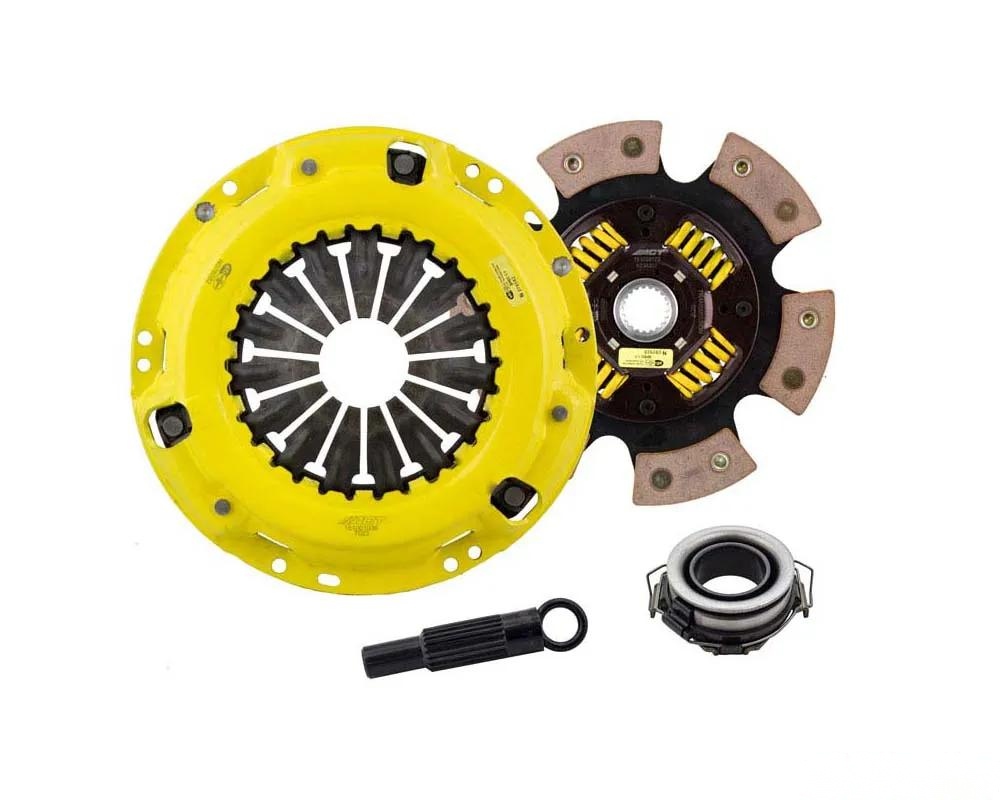

ACT TM1-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT TM1-HDG6 kit is engineered for those who demand high performance from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that enhances clamp load while minimizing deflection. This results in improved clutch longevity, making it an ideal choice for both street and race applications.

Key Features

• Light to moderate pedal effort with aggressive engagement, suitable for high horsepower applications.
• Moderate friction life, enhanced by ACT's unique diaphragm design.
• Constructed with select ceramic friction materials for superior heat tolerance and performance.
• 100% clamp load tested and dynamically balanced for reliability at high RPMs.

Technical Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 500 ft/lbs
• Product Weight: 15 lbs
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, please refer to the following link: ACT Installation Instructions.

Fitment

This kit is confirmed for the following application:

• Toyota MR2 (1990-1995)

The TM1-HDG6's 6-pad, spring-centered race disc is designed to damp torsional vibrations effectively, providing a more responsive shifting experience. While engagement is firmer, the benefits are clear for those looking to enhance their vehicle's performance under demanding conditions.
