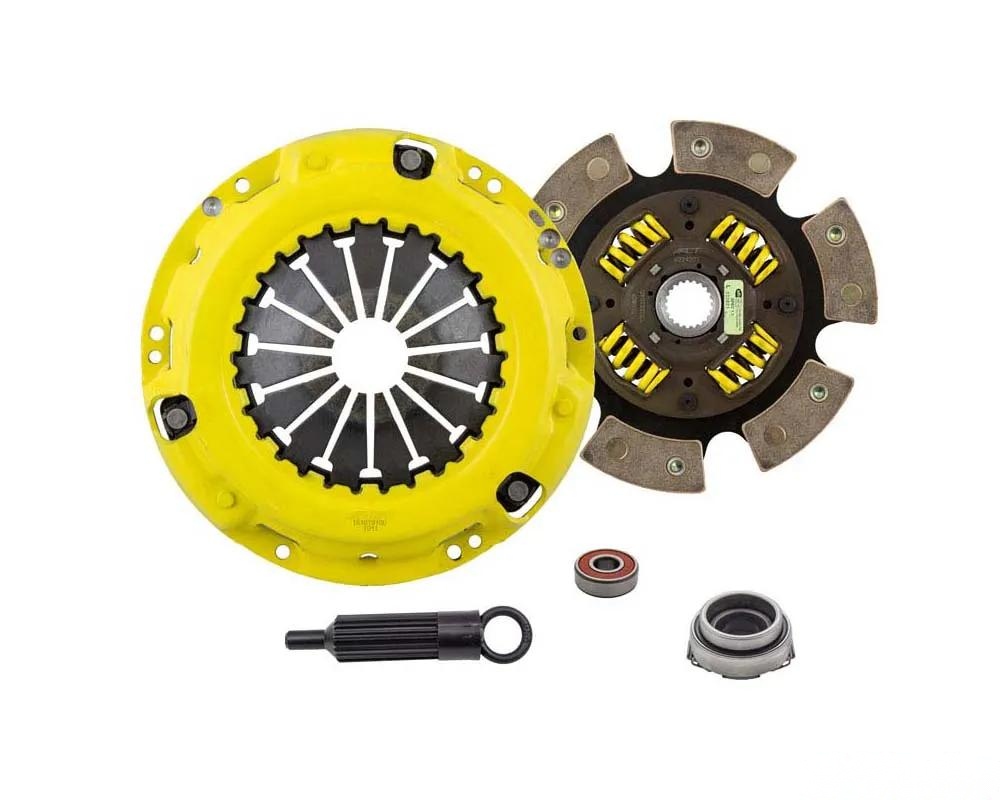

ACT TV1-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT TV1-HDG6 is designed for those who demand performance and reliability from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, which utilizes a unique diaphragm design to significantly enhance clamp load and minimize deflection, ultimately extending the life of your clutch. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring top-tier performance under pressure.

What sets the TV1-HDG6 apart is its 6-pad, spring-centered race disc. This innovative design effectively dampens torsional vibrations, making it a robust choice for high-stress environments. Customers have noted that while engagement can be a bit harsher, the payoff is quicker shifts and improved overall responsiveness. One satisfied user remarked, "I installed the TV1-HDG6 on my Toyota Van, and the difference in performance is night and day. Shifting feels precise, and I can really feel the power getting to the wheels!"

Features:

• Light to moderate pedal effort with aggressive engagement, suitable for street or race applications.
• Extended friction life thanks to ACT's exclusive diaphragm design.
• Engineered for high heat tolerance, using select ceramic friction materials for maximum performance.
• 100% clamp load tested and dynamically balanced, ensuring smooth operation even at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 15.3 lbs
• Torque Capacity: 355 ft/lbs
• Torque Capacity Over OE: 0.89

Installation Instructions:

For detailed installation instructions, please CLICK HERE.

Upgrade your vehicle's performance with the ACT TV1-HDG6 Heavy Duty/Race Sprung 6 Pad Kit—engineered for those who refuse to compromise on quality and performance.
