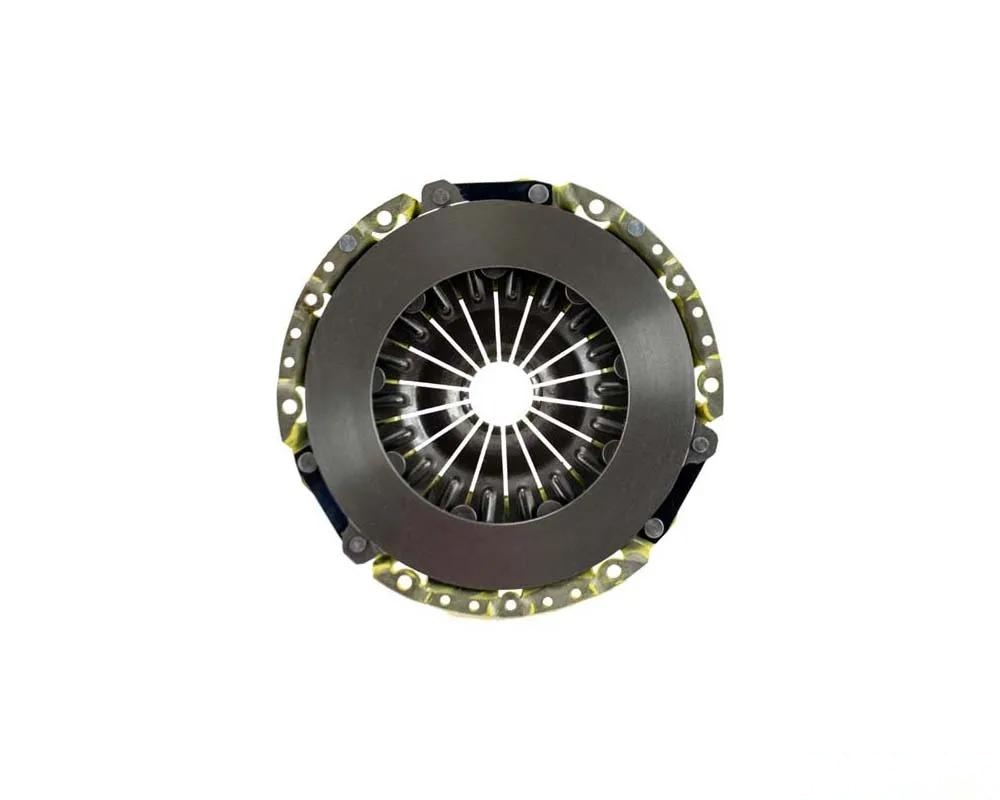

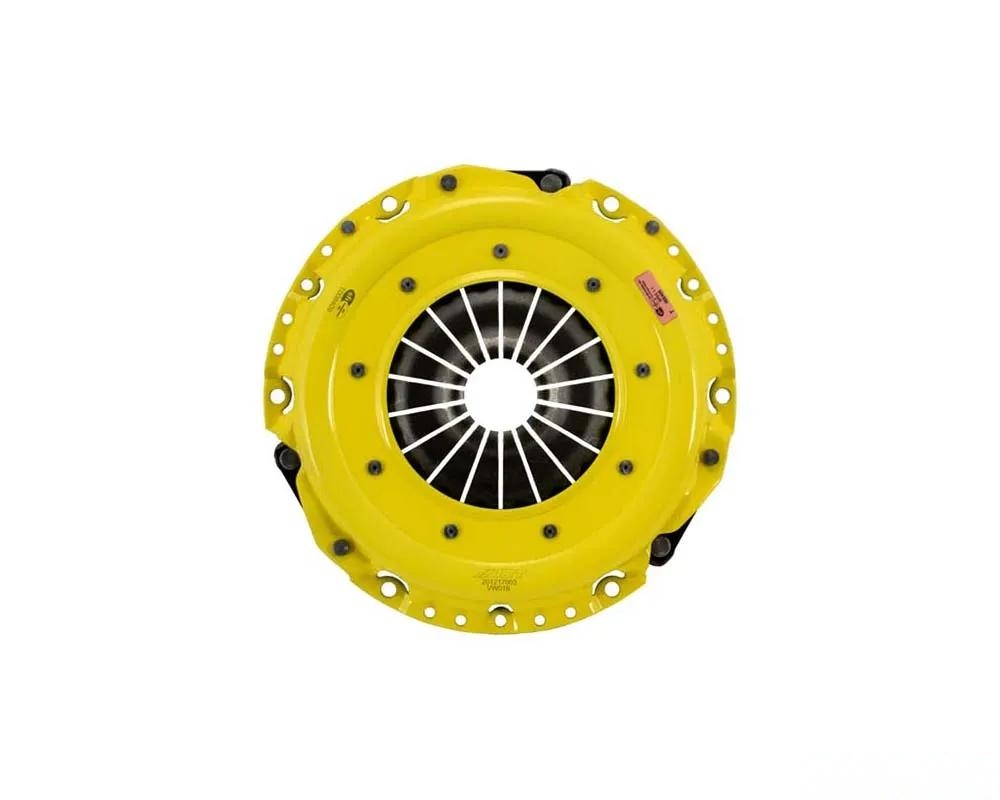

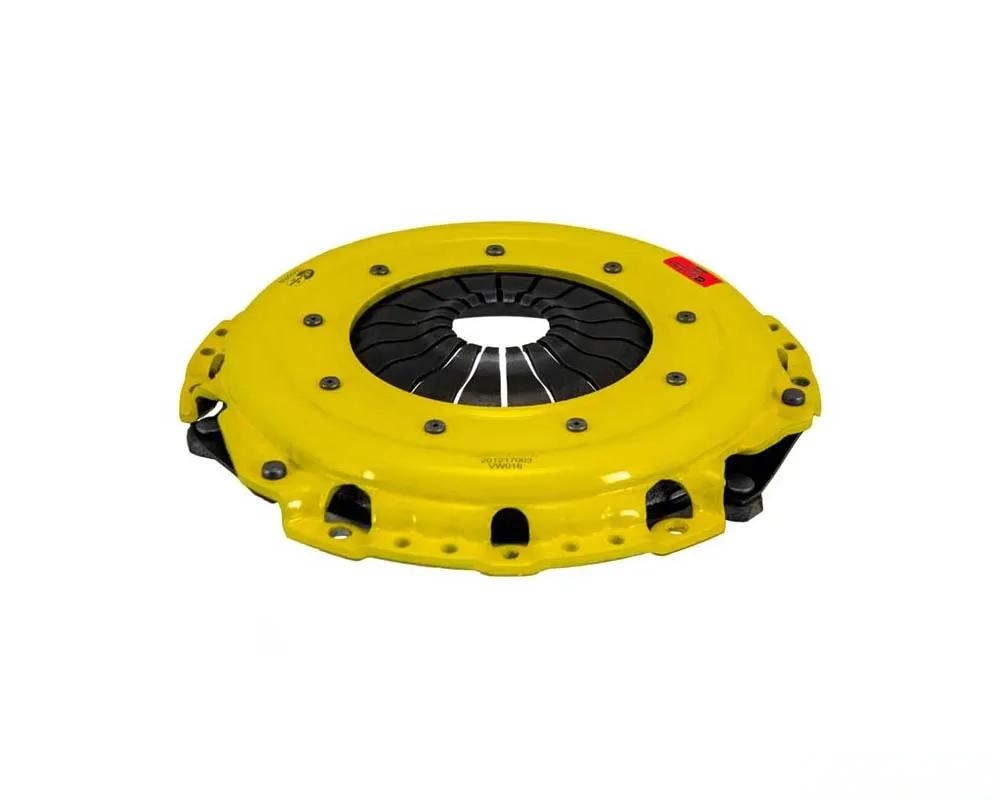

Advanced Clutch Heavy Duty Pressure Plate VW016 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.

Install Instructions:

• For Instructions CLICK HERE

• Light to moderate pedal effort, positive engagement
• Available disc life extended by ACT's exclusive diaphragm design
• Carefully engineered for improved durability, precisely assembled and accurately balanced
• Recommended for street and race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• Diameter: 9.4 in
• Diameter: 240 mm
• Type: Heavy Duty
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight (lbs.): 9.5
• SFI: 1.1

• Must be used with ACT flywheel and disc. Pressure plate bolts included (M7-1.0 X 14mm).
