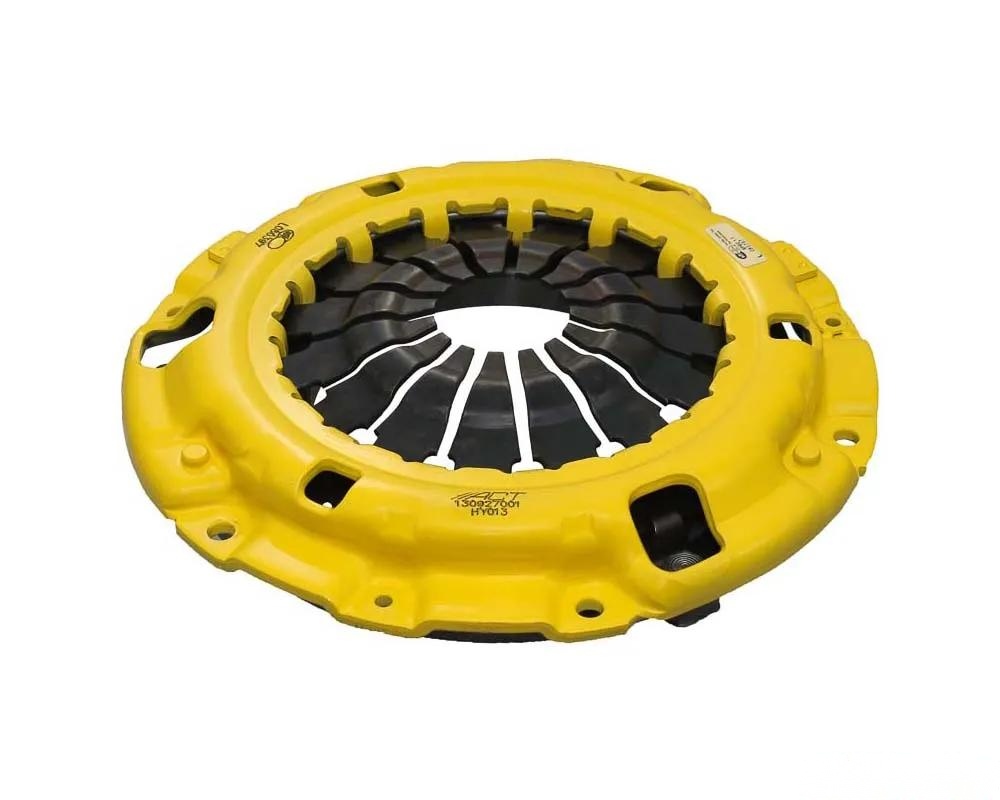

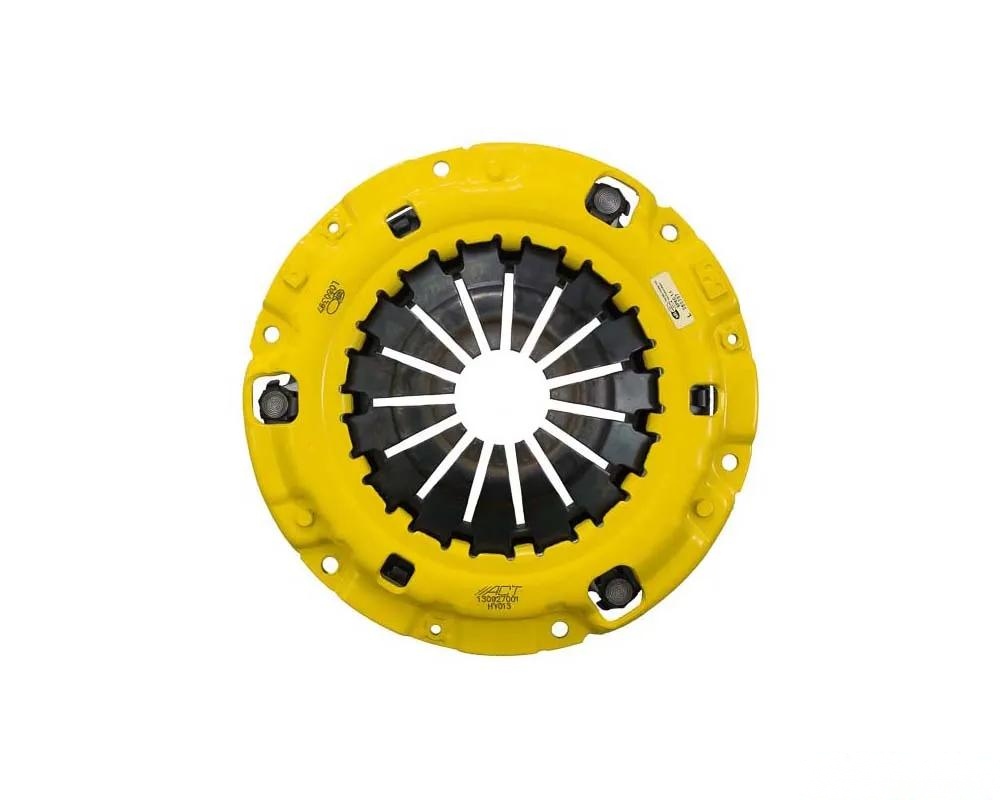

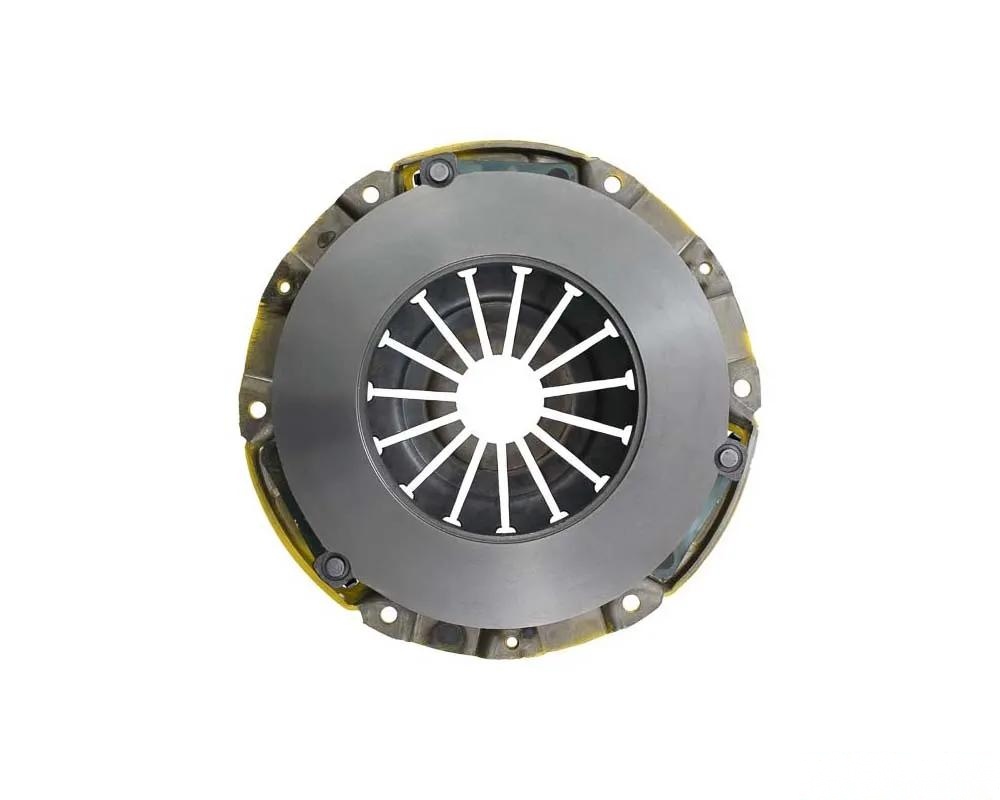

ACT Heavy Duty Pressure Plate HY013

The HY013 Heavy Duty Pressure Plate by Advanced Clutch Technology (ACT) is engineered to enhance clutch performance in demanding driving conditions. Utilizing an exclusive diaphragm design, this pressure plate increases clamp load while minimizing deflection, thereby extending clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional durability and performance under pressure.

Key Features

• Increases clamp load by 20% to 50%, providing superior grip.
• Designed for both street and race applications, ensuring versatility.
• Light to moderate pedal effort for a comfortable driving experience.
• Precision cover stampings enhance rigidity and consistency.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Diameter: 9.8 in (250 mm)
• Type: Heavy Duty
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight: 15 lbs
• SFI Rating: 1.1

Installation Notes

For detailed installation instructions, click here.

Fitment

Confirmed fitment for the Hyundai Genesis Coupe (2010-2016). Ensure compatibility with your specific model before installation.
