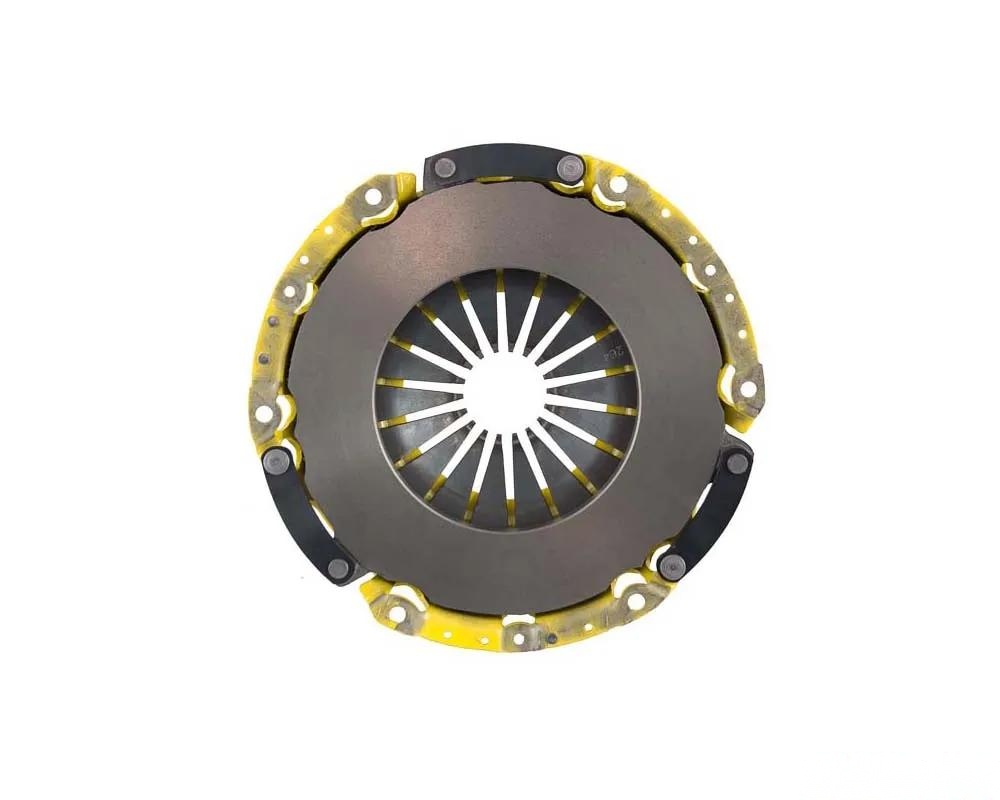

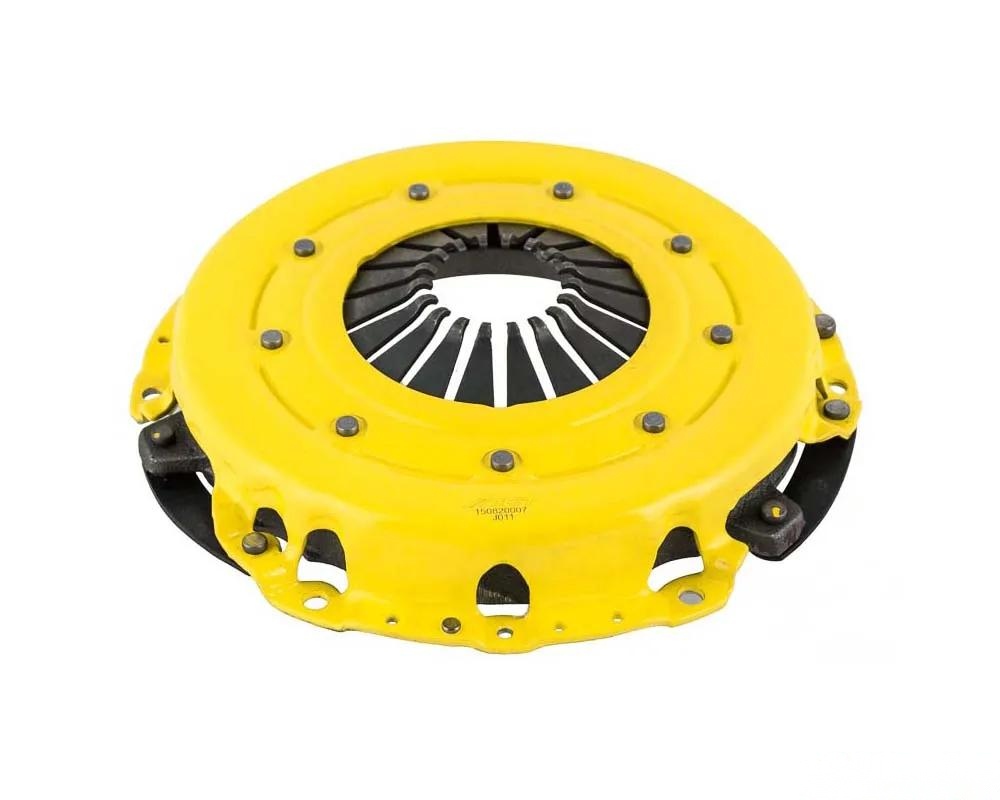

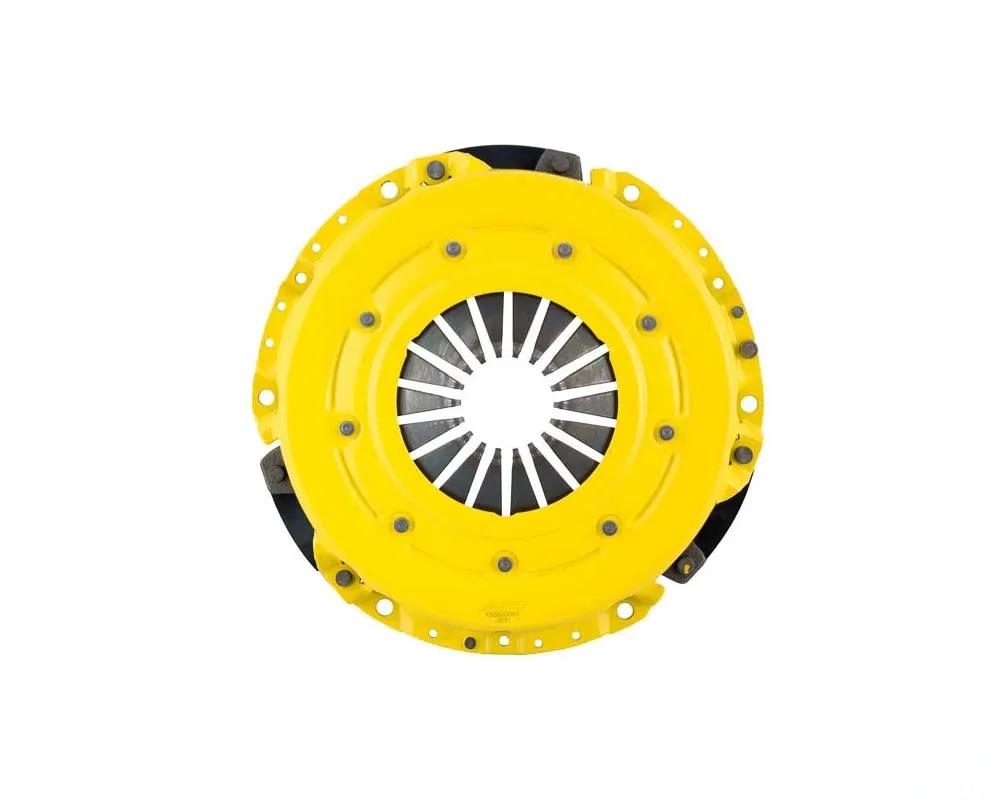

ACT Heavy Duty Pressure Plate J011

The ACT Heavy Duty Pressure Plate J011 is engineered for enhanced performance and longevity, making it an ideal choice for those looking to upgrade their clutch system. This pressure plate utilizes an exclusive diaphragm design that effectively increases clamp load while minimizing deflection, ensuring a more reliable clutch engagement during both street and race applications.

Design and Construction

The J011 is constructed using a four-stage heat-treating process for the diaphragm, which significantly improves its durability and heat resistance. This attention to detail not only extends the life of the clutch but also maintains a light to moderate pedal effort, allowing for confident shifting under various driving conditions. The precision-stamped pressure plate cover enhances rigidity and consistency, while the machined castings effectively dissipate heat during operation.

Performance Features

• Increases clamp load by 20 to 50 percent compared to stock pressure plates.
• Designed for both street and race applications, providing versatility for different driving styles.
• 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.
• Key areas are induction hardened to prolong lifespan and enhance durability.

Specifications

• Diameter: 10.5 in (266 mm)
• Type: Heavy Duty
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight: 17.3 lbs

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

This pressure plate is confirmed to fit the following model:

• Jeep Wrangler (2007-2017)
