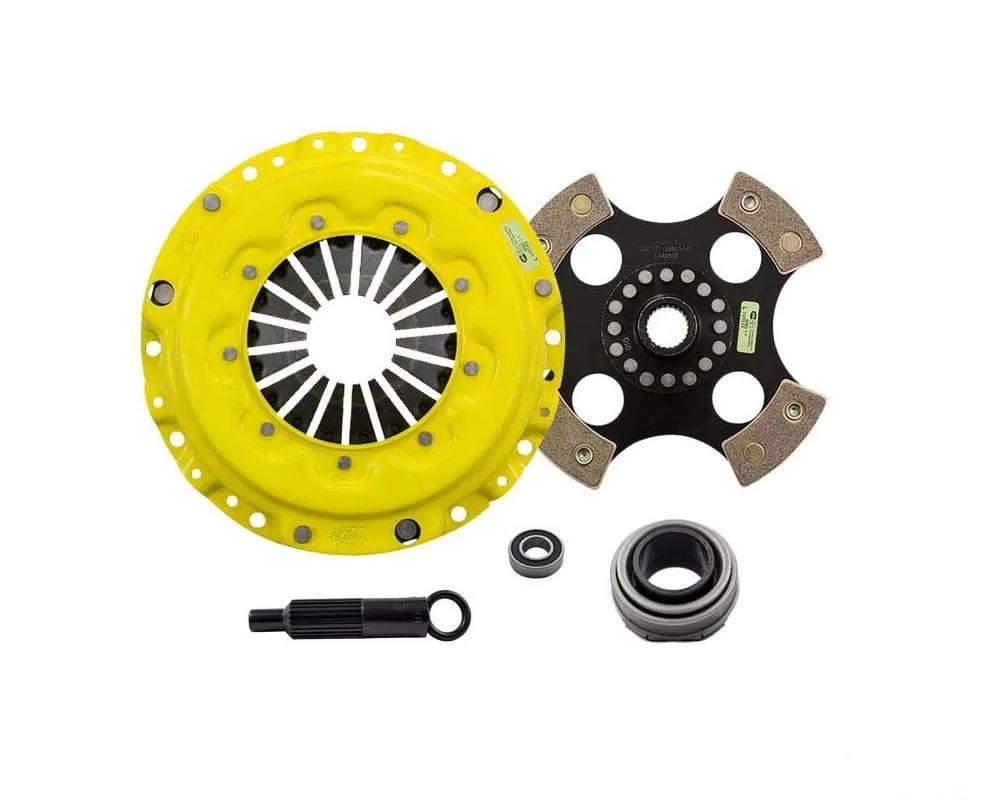

ACT MaXX/Race Rigid 4 Pad Kit AI3-XXR4

The ACT MaXX/Race Rigid 4 Pad Kit AI3-XXR4 is designed for the true performance enthusiast who demands superior engagement and rapid shifts. This kit features the exclusive MaXX pressure plate, crafted with a unique diaphragm design that enhances clamp load, reduces deflection, and extends the life of your clutch. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring top-notch performance under pressure.

With precision cover stampings, the pressure plates provide the rigidity and consistency needed for high-performance applications. The 4-pad rigid race discs are constructed from high-quality ceramic friction materials, offering durability and exceptional heat tolerance. The chrome-moly hub is heat-treated for added strength, making this kit a reliable choice for those who push their vehicles to the limit.

While the engagement might feel harsher, the lightweight and rigid design of the 4-pad race disc allows for quicker shifts and a smoother overall driving experience. This makes it particularly suitable for smaller disc sizes found in compact engines, delivering the performance you crave.

Customer Feedback

"The AI3-XXR4 has completely transformed my driving experience. The shifts are lightning-fast, and I can really feel the difference in power delivery!"

"Installation was straightforward, and the performance is exactly what I was looking for. Just be ready for a stiffer pedal!"

Features:

• Heavy to very heavy pedal effort with aggressive engagement for the quickest shifts.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design, though it may increase spline wear.
• Engineered for precision, using select ceramic friction materials for maximum heat tolerance and performance.
• Recommended for race use only, ensuring that you get the most out of your vehicle.
• 100% clamp load tested and dynamically computer balanced for reliable high RPM performance.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Maxx Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 12 lbs
• Torque Capacity: 485 ft/lbs (1.62 over OE)

Product Fitment:

Compatible with Acura Integra (1992-1993).

Installation Instructions:

• For detailed instructions, CLICK HERE.
