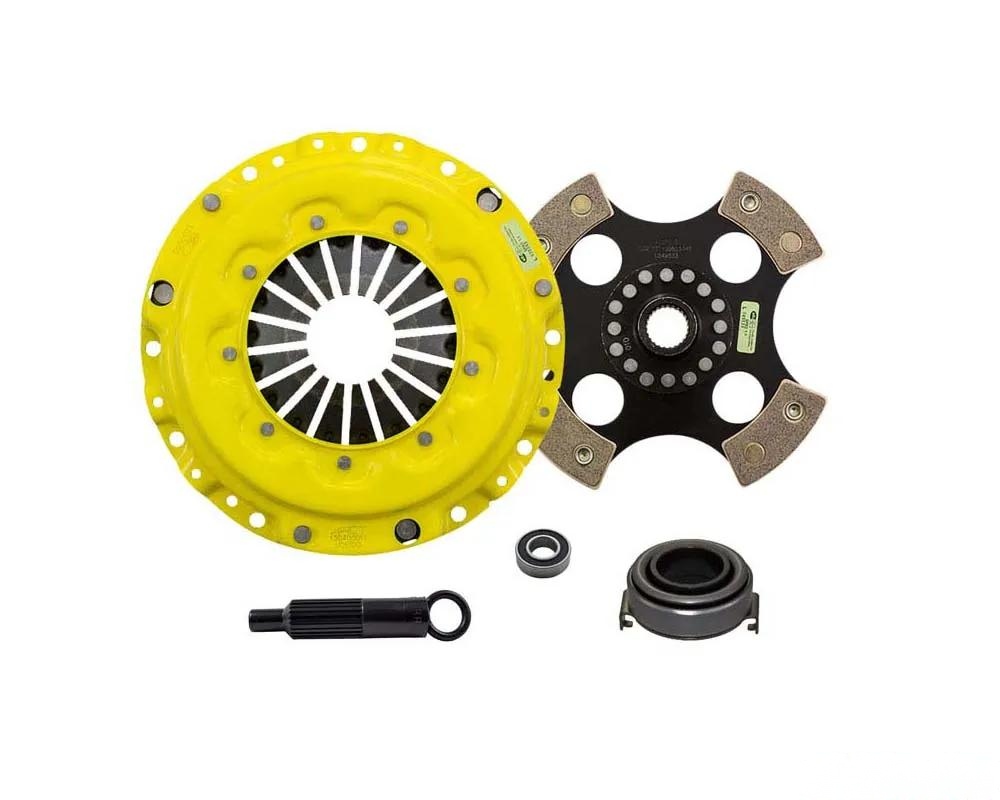

ACT AI4-XXR4 MaXX/Race Rigid 4 Pad Kit

The ACT AI4-XXR4 MaXX/Race Rigid 4 Pad Kit is engineered for performance-driven applications, utilizing advanced technology to enhance your vehicle's clutch system. This kit features the MaXX pressure plate, which incorporates an exclusive diaphragm design that increases clamp load while minimizing deflection. This design ensures optimal clutch life and performance under demanding conditions.

Construction and Design

Each diaphragm undergoes a rigorous four-stage heat-treating process, delivering exceptional durability and performance. The precision cover stampings of the ACT pressure plates provide added rigidity and consistency, essential for high-performance applications. The 4-pad rigid race discs are constructed from premium ceramic friction materials, designed to withstand high temperatures and deliver reliable performance.

Performance Characteristics

• Heavy to very heavy pedal effort, ideal for aggressive driving styles.
• Faster shifts with a harsher engagement, making this kit well-suited for competitive racing.
• Moderate friction life, with enhancements from ACT's diaphragm design, though it may increase spline wear.
• Each component is carefully engineered, precisely assembled, and dynamically balanced for smooth operation at high RPMs.
• Recommended for race use only, ensuring optimal performance in competitive environments.

Specifications

• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Torque Capacity: 485 ft/lbs, which is 1.62 times over OE capacity
• Product Weight: 12.1 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Confirmed Fitment

• Acura Integra: 1994-2001
• Honda Civic: 1999-2000
• Honda CR-V: 1998-2001
• Honda del Sol: 1994-1997
