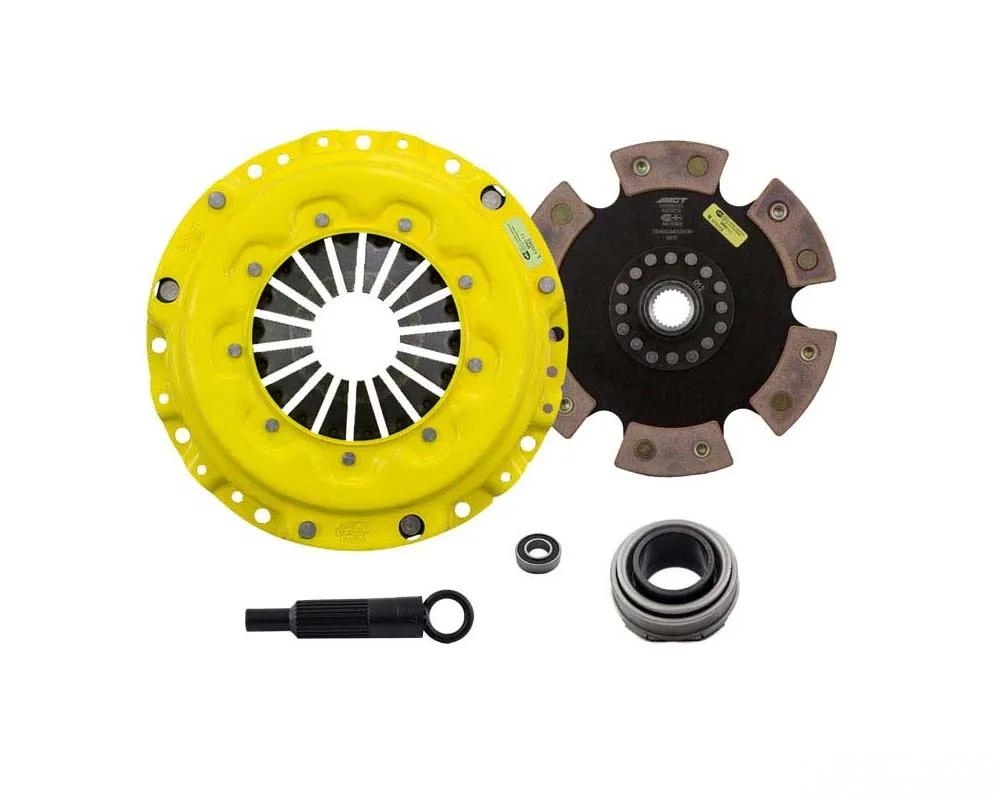

ACT MaXX/Race Rigid 6 Pad Kit AI2-XXR6

The ACT MaXX/Race Rigid 6 Pad Kit, model AI2-XXR6, is engineered for performance-driven applications, particularly suited for those who prioritize aggressive engagement and rapid shifting. This clutch kit features a MaXX pressure plate that employs an exclusive diaphragm design, enhancing clamp load while minimizing deflection. This results in improved clutch life, making it a reliable choice for serious racing environments.

Construction and Materials

ACT's pressure plates go through a rigorous four-stage heat-treating process, ensuring durability and performance under extreme conditions. The precision cover stampings provide additional rigidity, enhancing consistency during operation. The 6-pad rigid race discs are crafted from high-quality ceramic friction materials, which are designed to withstand high temperatures and deliver maximum performance. The chrome-moly hub is heat-treated, offering superior strength and longevity.

Performance Characteristics

• Heavy to very heavy pedal effort for aggressive driving.
• Quicker shifts with a harsher engagement profile, ideal for race applications.
• Increased gear rattle is typical due to the rigid design, which may also lead to increased spline wear.
• Moderate friction life, extended by the advanced diaphragm design.
• Engineered for race use, ensuring high RPM reliability.

Specifications

• Clutch Disc Diameter: 8.7 in (220 mm)
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Torque Capacity: 485 ft/lbs (1.62 times over OE)
• Weight: 12.6 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes
• Disc Type: Solid

Installation Notes

For detailed installation instructions, refer to the installation guide.

Fitment

Confirmed fitment for the ACT MaXX/Race Rigid 6 Pad Kit AI2-XXR6 includes:

• Acura Integra: 1990-1991
