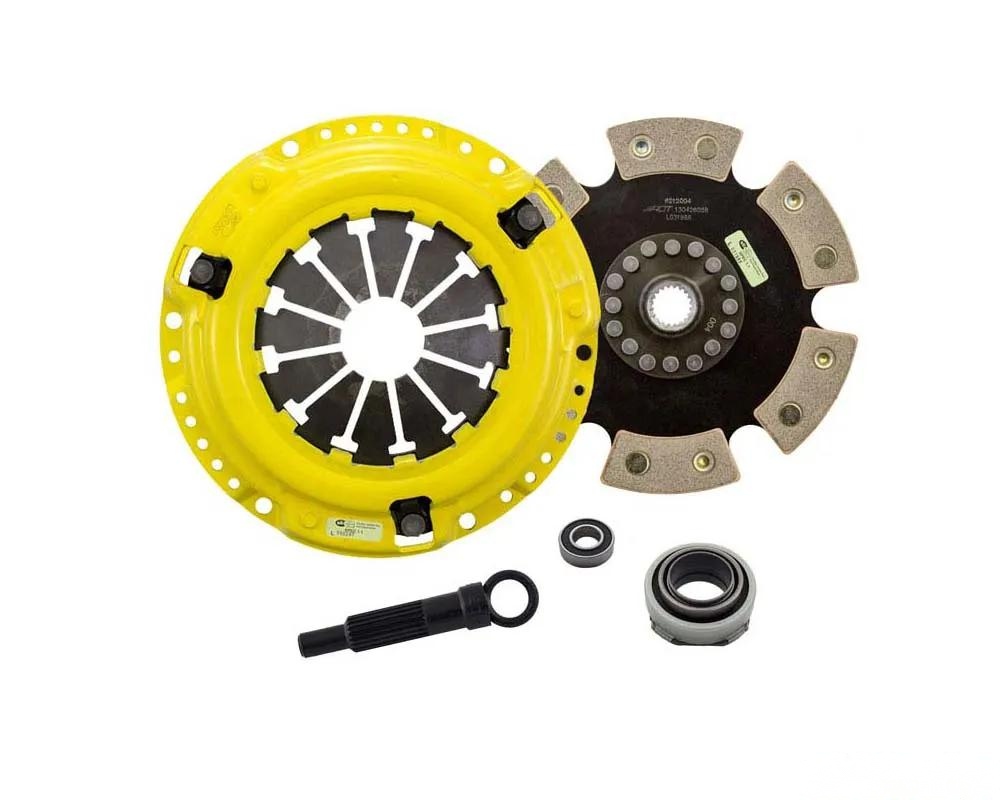

ACT HW4-XXR6 MaXX/Race Rigid 6 Pad Kit

For Honda Civic owners looking to up their performance game, the ACT HW4-XXR6 MaXX/Race Rigid 6 Pad Kit is a serious upgrade that won’t disappoint. This kit features a MaXX pressure plate designed specifically for the 1988-1991 Honda Civic, ensuring a perfect fit and optimal performance on the track or street.

Performance Features

• Enhanced clamp load thanks to ACT's exclusive diaphragm design, which reduces deflection and maximizes clutch life.
• Each diaphragm undergoes a meticulous four-stage heat treatment, resulting in exceptional durability and performance.
• Precision cover stampings provide the rigidity and consistency needed for high-performance applications.
• The 6-pad rigid race disc is crafted from high-quality ceramic friction materials, allowing for superior heat resistance.
• Lightweight and rigid design facilitates quicker shifts, making it ideal for both track days and spirited drives.
• While engagement can be harsher, the benefit is noticeably faster shifting, perfect for those who demand speed.

Installation

Installing the HW4-XXR6 is straightforward for those familiar with clutch swaps. For detailed installation instructions, CLICK HERE.

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 420 ft/lbs (1.73 times over OE)
• Product Weight: 10.4 lbs
• Pressure Plate Type: MaXX Xtreme
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Important Notes

• This kit must be used with a 90-01 SOHC flywheel for proper function.
• Designed for performance applications; not recommended for daily driving due to heavy pedal effort and aggressive engagement.

Customer Insights

One 1990 Honda Civic owner shared, “After installing the ACT HW4-XXR6, my shifts are unbelievably quick. I can feel the difference on the track—no more hesitation, just pure power!”

Upgrade your clutch system with the ACT HW4-XXR6 and experience the difference in performance and reliability that serious drivers demand.
