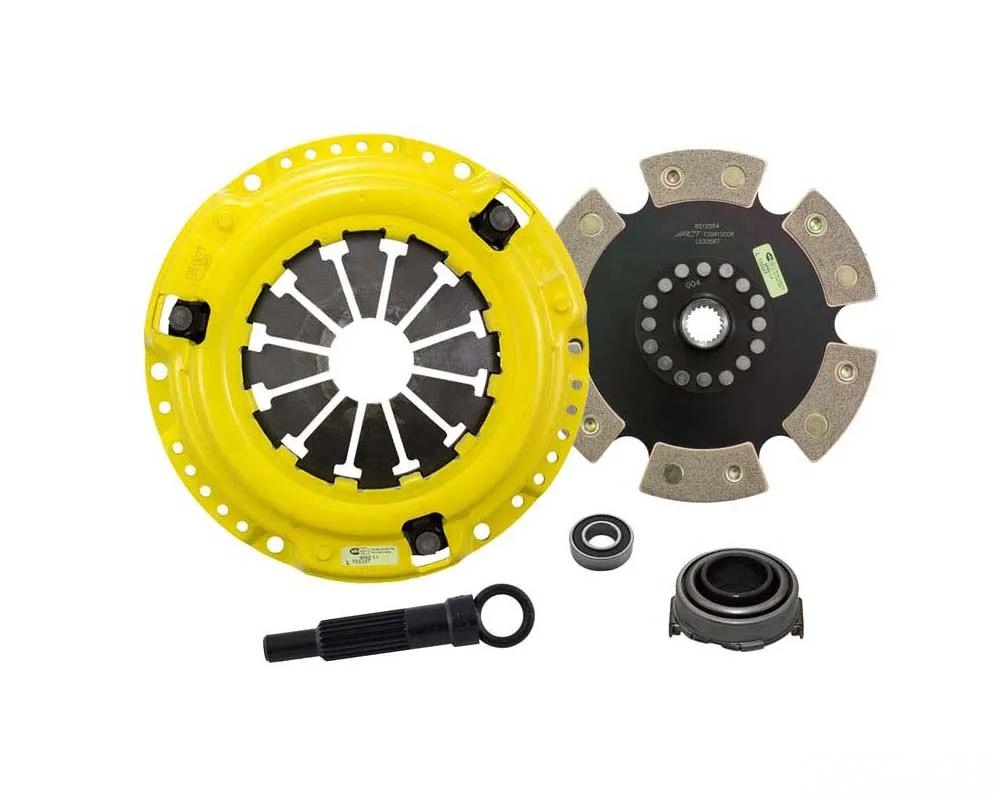

ACT MaXX/Race Rigid 6 Pad Kit HC5-XXR6

The ACT MaXX/Race Rigid 6 Pad Kit HC5-XXR6 is engineered for serious performance enthusiasts seeking a reliable and responsive clutch solution. This kit features a MaXX pressure plate designed with an exclusive diaphragm that enhances clamp load while minimizing deflection, resulting in improved clutch longevity and performance under high-stress conditions.

Key Features

• Heavy to very heavy pedal effort with aggressive engagement for quicker shifts.
• Moderate friction life, extended by ACT's proprietary diaphragm design; however, expect increased spline wear.
• Constructed with select ceramic friction materials, ensuring high heat tolerance and optimal performance.
• Recommended for race applications only, emphasizing performance over daily drivability.
• Each unit is 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Product Weight: 10.4 lbs
• Torque Capacity: 420 ft/lbs (1.56 times over OE)
• Alignment Tool Included: Yes
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Installation Notes

For installation instructions, refer to the official guide: CLICK HERE.

Confirmed Fitment

This clutch kit is compatible with the following models:

• Acura EL (1997-2005)
• Honda Civic (1992-2005)
• Honda del Sol (1993-1997)

Upgrade your clutch system with the ACT MaXX/Race Rigid 6 Pad Kit HC5-XXR6 for unmatched performance on the track.
