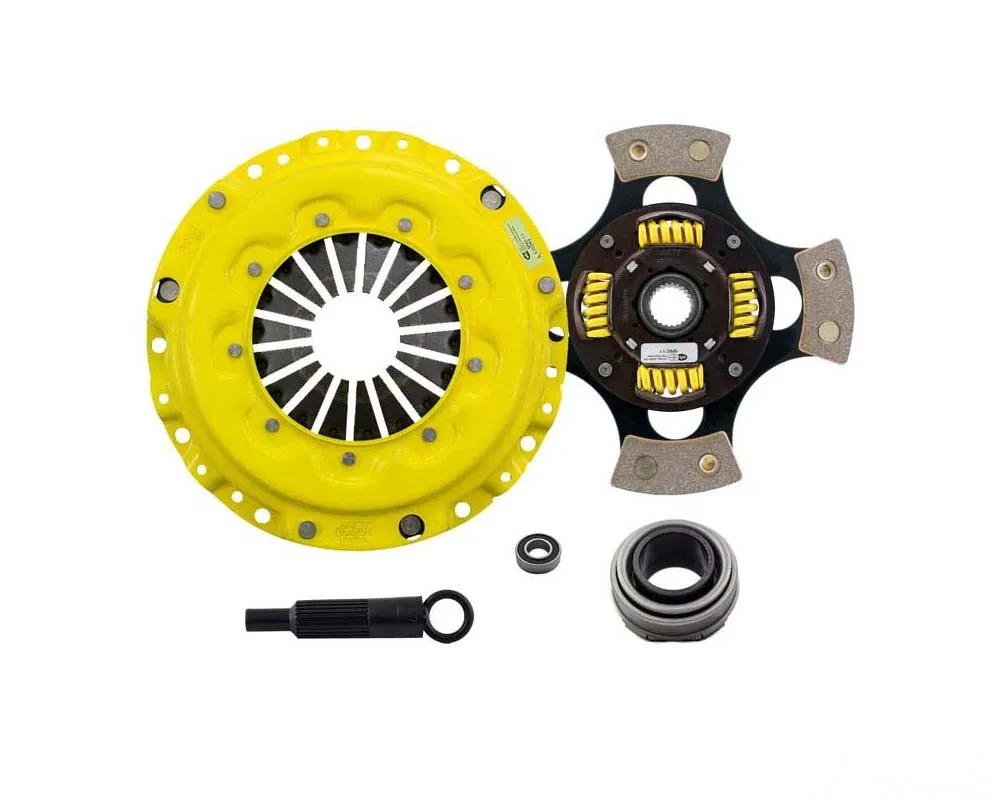

ACT MaXX/Race Sprung 4 Pad Kit AI2-XXG4

The ACT MaXX/Race Sprung 4 Pad Kit AI2-XXG4 is engineered for those who demand precision and performance from their clutch system. This kit features a MaXX pressure plate designed specifically for high-performance applications, enhancing clamp load while minimizing deflection to extend clutch life.

Key Features

• Heavy to very heavy pedal effort with aggressive engagement, allowing for quicker shifts.
• Moderate friction life, optimized through ACT's exclusive diaphragm design.
• Constructed with select ceramic friction materials, providing high heat tolerance and maximum performance.
• Tested for 100% clamp load and dynamically computer balanced, ensuring reliability at high RPMs.

Construction Details

The pressure plate utilizes a proprietary diaphragm design that undergoes a four-stage heat-treating process, ensuring durability and performance under extreme conditions. Precision cover stampings enhance rigidity and consistency, which is critical for maintaining performance during aggressive driving.

The 4-pad spring-centered race disc is designed to dampen torsional vibrations effectively, resulting in a quieter operation while resisting failure even in the most challenging environments. The use of wraparound spring windows and thicker retainer stampings in the spring retainers provides added strength and reliability.

Specifications

• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Product Weight: 12.7 lbs
• Torque Capacity: 485 ft/lbs, 1.62 times over OE
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, click here.

Fitment

This kit is compatible with the following vehicle:

• Acura Integra: 1990-1991
