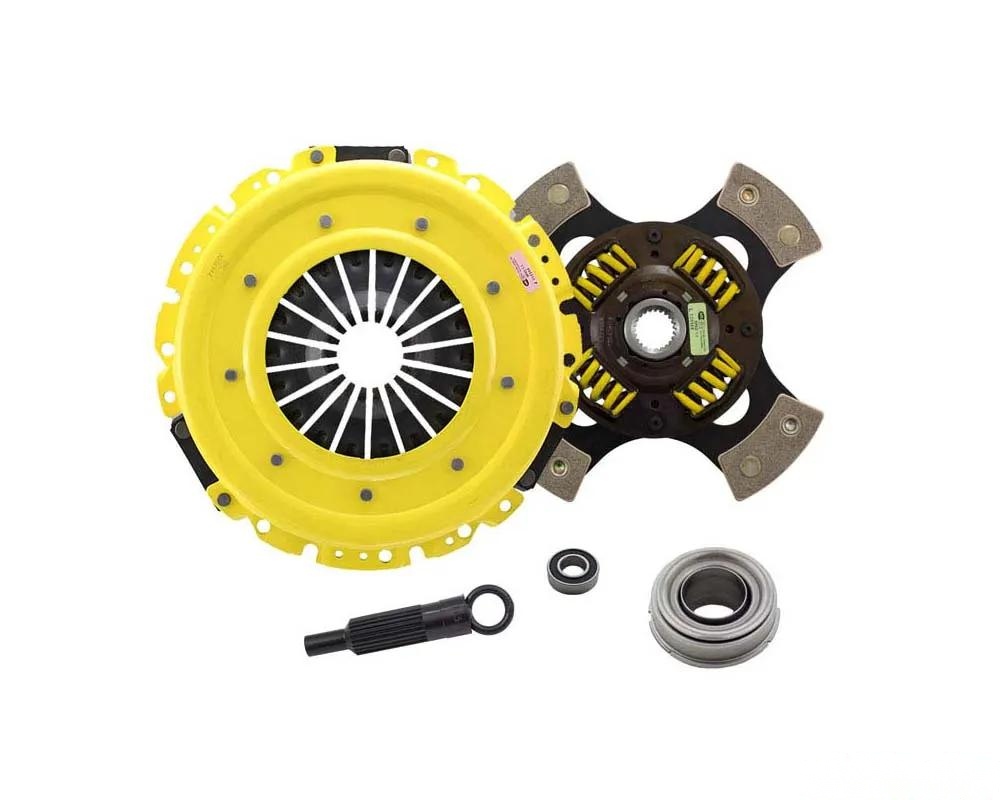

ACT MS1-XXG4 Clutch Kit

For the dedicated driving enthusiast, the ACT MS1-XXG4 is more than just a clutch kit; it's a performance upgrade that transforms your vehicle's handling. Designed with the serious racer in mind, this kit features the innovative MaXX pressure plate, which employs a unique diaphragm design. This design not only boosts clamp load but also minimizes deflection, ensuring longer clutch life and enhanced performance under pressure.

One of the standout features of the MS1-XXG4 is its four-stage heat treatment process applied to the diaphragm. This meticulous approach guarantees exceptional performance, even in the most demanding conditions. Customers have noted how the pressure plate's precision cover stampings provide the rigidity and consistency needed for high-stakes racing.

The included 4-pad spring-centered race disc is engineered to dampen torsional vibrations, resulting in quieter operation while resisting failure during intense use. Users have reported that while the engagement may feel harsher, the trade-off is quicker shifts, making it an ideal choice for those looking to maximize their vehicle's performance on the track.

Customer Feedback

Many users have shared their experiences, highlighting the MS1-XXG4's ability to handle high horsepower applications with ease. One satisfied customer remarked, "The engagement is aggressive, but I love how quickly I can shift now. It really makes a difference on the track!"

Another user mentioned, "I was impressed with the build quality and how well it performed during my last race. Definitely worth the investment!"

Features and Benefits

• Heavy to very heavy pedal effort with aggressive engagement for faster shifts.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design.
• Precision-engineered with select ceramic friction materials for high heat tolerance.
• Ideal for high horsepower street or race applications.
• 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Maxx Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 16.1 lbs
• Torque Capacity: 625 ft/lbs
• Torque Capacity Over OE: 1.56

Fitment

This clutch kit is confirmed to fit:

• Chrysler Conquest (1987-1989)
• Mitsubishi Starion (1983-1989)

For those looking to upgrade their clutch system, the ACT MS1-XXG4 is a reliable choice that delivers on performance and durability. Experience the difference for yourself!
