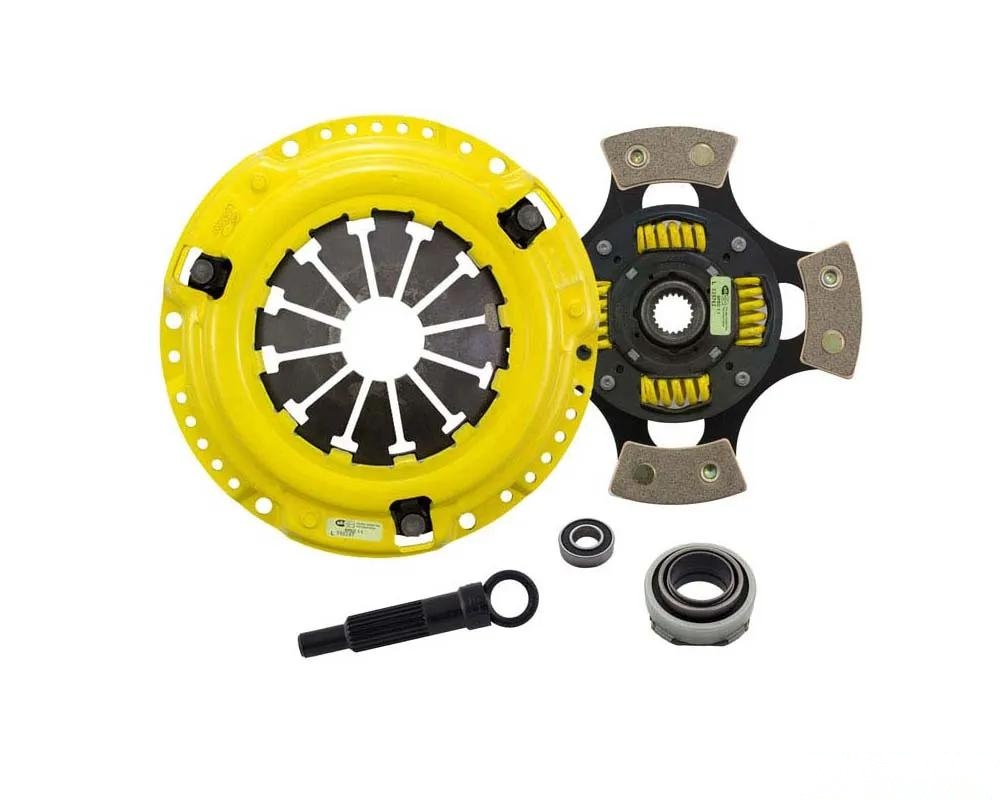

ACT HW4-XXG4 MaXX/Race Sprung 4 Pad Kit

If you're serious about performance, the ACT HW4-XXG4 MaXX/Race Sprung 4 Pad Kit is designed for you. This kit features a MaXX pressure plate that significantly boosts clamp load, minimizes deflection, and extends clutch life, making it an excellent choice for enthusiasts who push their vehicles to the limit.

Key Features

• Heavy to very heavy pedal effort for a more engaging driving experience.
• Aggressive engagement allows for quicker shifts, though you might notice mild to moderate gear rattle.
• Moderate friction life, enhanced by ACT's innovative diaphragm design.
• Engineered with select ceramic friction materials for high heat tolerance and maximum performance.
• Tested for 100% clamp load and dynamically balanced for reliable high RPM operation.

Customer Feedback

Many users have praised the HW4-XXG4 for its responsiveness and durability. One customer noted, "The shift response is incredible! I can feel the difference in power delivery. Definitely worth the investment." Another mentioned, "Installation was straightforward, and the performance has been outstanding on both the street and track."

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 420 ft/lbs (1.73 times over OE)
• Product Weight: 10.6 lbs
• Grease Included: Yes
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes
• Pressure Plate Type: MaXX Xtreme

Installation Notes

For detailed installation instructions, CLICK HERE.

Keep in mind that this product is designed to be used with a 90-01 SOHC flywheel.

Compatibility

This clutch kit is compatible with the Honda Civic models from 1988 to 1991, ensuring a perfect fit for your performance upgrades.
