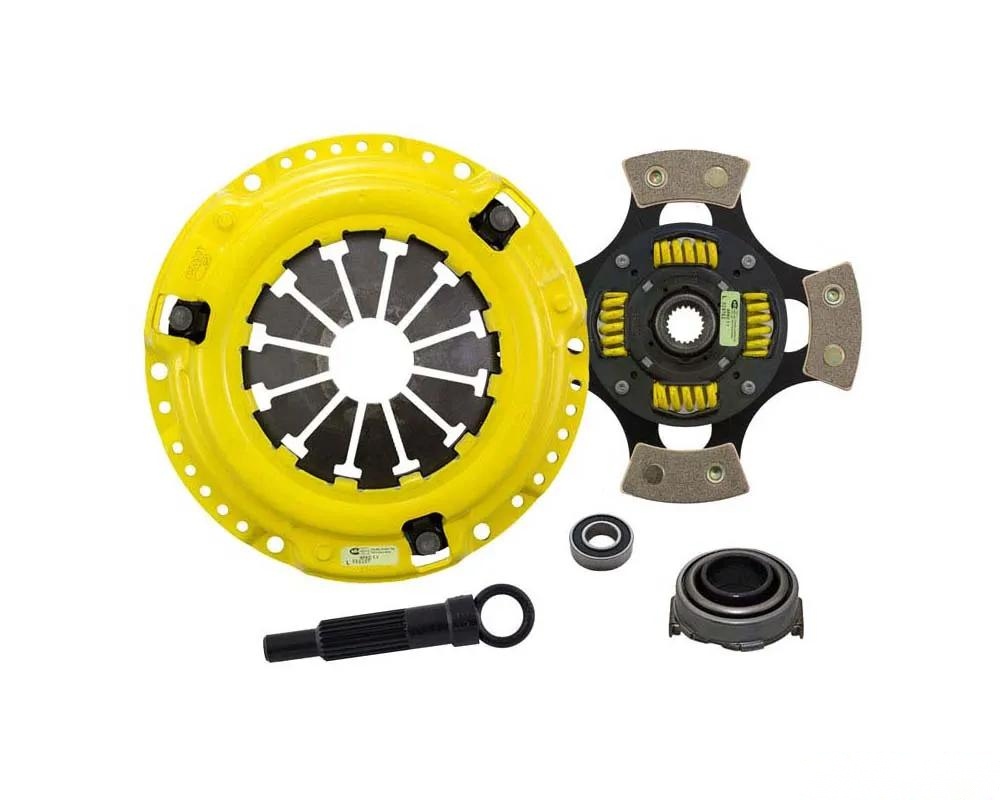

ACT HC5-XXG4 MaXX/Race Sprung 4 Pad Kit

Introducing the ACT HC5-XXG4 MaXX/Race Sprung 4 Pad Kit, designed for the passionate driver who demands performance and reliability. This kit features a MaXX pressure plate that leverages an exclusive diaphragm design, enhancing clamp load while minimizing deflection for improved clutch longevity. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring exceptional performance under pressure.

Customers have noted the noticeable difference in their driving experience: "The engagement is aggressive, but I love how quickly I can shift now. It feels like a whole new car!" The ACT pressure plate is crafted with precision cover stampings, providing the rigidity and consistency that serious enthusiasts expect.

Key Features:

• Heavy to very heavy pedal effort for a more engaging driving experience.
• Moderate friction life, extended by ACT's advanced diaphragm design.
• Engineered with high-quality ceramic friction materials for optimal heat tolerance.
• Designed for high horsepower street or race applications.
• 100% clamp load tested and dynamically balanced for smooth performance at high RPMs.

Technical Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: MaXX Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 10.6 lbs
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 1.56

Install Instructions:

For detailed installation instructions, CLICK HERE.

Fitment:

The ACT HC5-XXG4 is compatible with the following vehicles:

• Acura EL (1997-2005)
• Honda Civic (1992-2005)
• Honda del Sol (1993-1997)

Upgrade your ride with the ACT HC5-XXG4 MaXX/Race Sprung 4 Pad Kit and experience the difference in performance and reliability!
