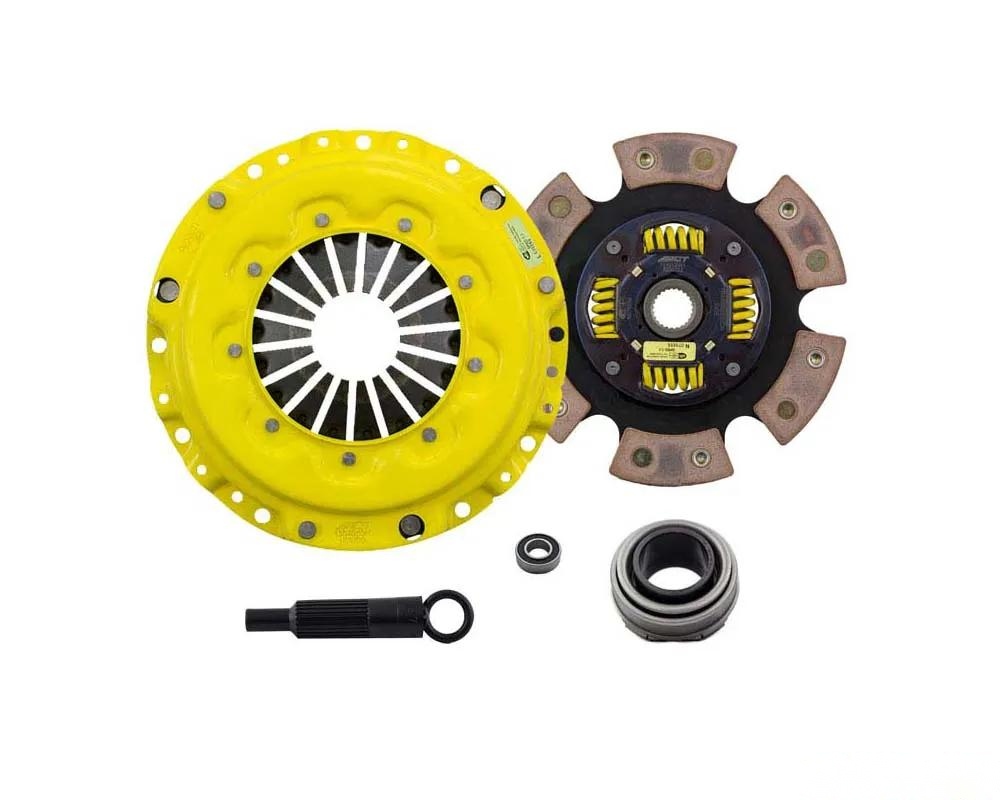

ACT MaXX/Race Sprung 6 Pad Kit AI2-XXG6

The ACT MaXX/Race Sprung 6 Pad Kit AI2-XXG6 is engineered for those who demand high performance from their clutch system. This kit features a MaXX pressure plate that utilizes a unique diaphragm design to enhance clamp load, minimize deflection, and extend clutch longevity. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring durability and consistency under extreme conditions.

Key Features

• Heavy to very heavy pedal effort with aggressive engagement for quick shifts.
• Moderate friction life, enhanced by ACT's proprietary diaphragm design.
• Engineered with select ceramic friction materials for high heat tolerance and performance.
• Ideal for high horsepower applications, whether on the street or the track.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Technical Specifications

• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Torque Capacity: 485 ft/lbs (1.62 times over OE)
• Product Weight: 13.3 lbs
• Pressure Plate Type: MaXX Xtreme
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

This kit is specifically compatible with the 1990-1991 Acura Integra. Ensure your vehicle matches this fitment to achieve optimal performance.
