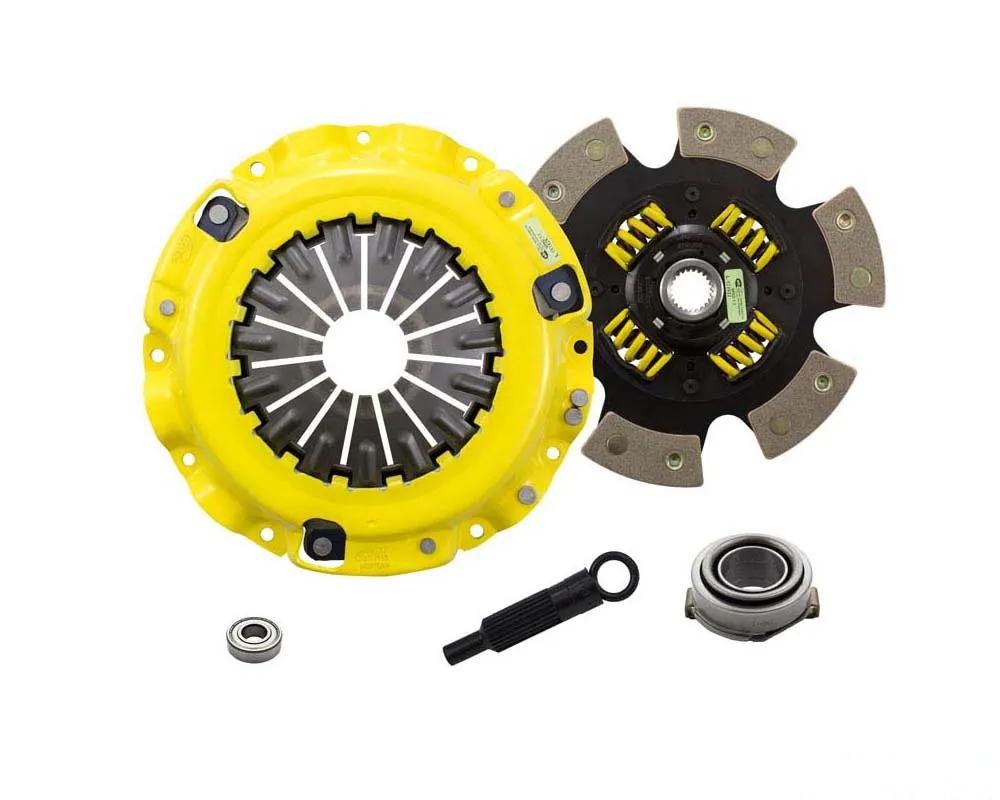

ACT MaXX/Race Sprung 6 Pad Kit Z64-XXG6

For those who demand uncompromising performance from their vehicles, the ACT MaXX/Race Sprung 6 Pad Kit Z64-XXG6 is engineered to deliver. This kit features a MaXX pressure plate, designed specifically for serious automotive enthusiasts looking to enhance their driving experience. The exclusive diaphragm design of the ACT pressure plates increases clamp load while reducing deflection, ultimately maximizing clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring top-notch performance that lasts.

Fitment

This clutch kit is compatible with the following models:

• Ford Probe (1989-1992)
• Mazda 626 (1988-1991)
• Mazda MX-6 (1987-1992)

Key Features

• Heavy to very heavy pedal effort for a race-inspired feel
• Aggressive engagement and quick shifts, ideal for spirited driving
• Moderate friction life, enhanced by ACT's advanced diaphragm technology
• Constructed with select ceramic friction materials for high heat tolerance and maximum performance
• Tested for 100% clamp load and dynamically balanced for smooth high RPM reliability

Technical Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Disc Material: Ceramic
• Torque Capacity: 625 ft/lbs (1.56 times over OE)
• Product Weight: 16.6 lbs
• Pressure Plate Type: Maxx Xtreme
• Release Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes

Installation Instructions

Ready to take your clutch performance to the next level? For detailed installation instructions, CLICK HERE.

Customer Feedback

A Mazda MX-6 owner shared, "After installing the ACT Z64-XXG6, the shifts are lightning fast! The pedal effort is noticeable but totally worth it for the performance gains. I can feel the difference during aggressive driving." Meanwhile, a Ford Probe driver noted, "This kit transformed my car's responsiveness. The engagement is aggressive, but it makes my shifts feel so much quicker!"

If you're serious about performance and looking to upgrade your clutch setup for your Ford Probe, Mazda 626, or Mazda MX-6, the ACT MaXX/Race Sprung 6 Pad Kit Z64-XXG6 is a top-tier choice that won't disappoint.
