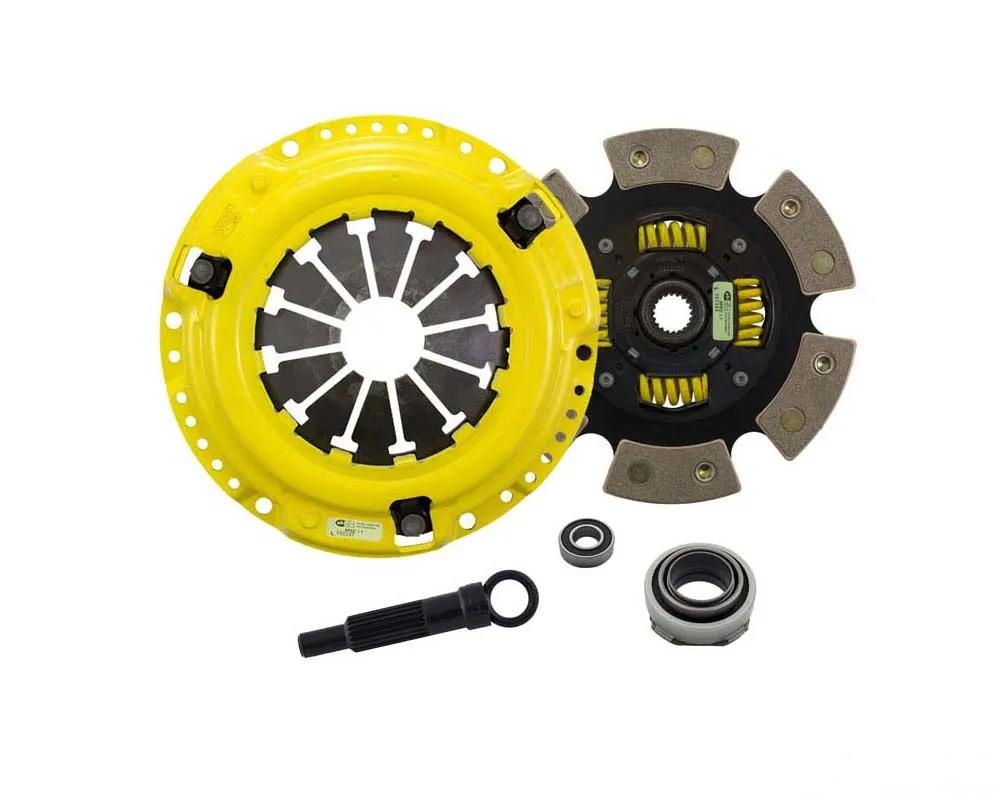

ACT HW4-XXG6 Advanced Clutch MaXX/Race Sprung 6 Pad Kit

If you're a serious driving enthusiast looking to upgrade your clutch system, the ACT HW4-XXG6 is designed just for you. This kit features a MaXX pressure plate that enhances performance with its unique diaphragm design, offering increased clamp load and reduced deflection. This means you can expect a longer clutch life and improved overall performance, even under the most demanding conditions.

Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring durability and reliability. Customers have noted that the precision cover stampings provide the rigidity necessary for consistent performance, making this kit a favorite among those who push their vehicles to the limit.

Key Features:

• Heavy to very heavy pedal effort with aggressive engagement for quicker shifts.
• Moderate friction life, extended due to ACT's exclusive diaphragm design.
• Engineered with select ceramic friction materials for high heat tolerance.
• Perfect for high horsepower street or race applications.
• 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Maxx Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 11.2 lbs
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 1.73

Notes:

• This kit must be used with a 90-01 SOHC flywheel.

Customer Feedback:

Many users have shared their satisfaction with the HW4-XXG6, highlighting the noticeable difference in engagement and shifting speed. One customer mentioned, "The pedal feel is definitely heavier, but the responsiveness is worth it," while another noted, "It's a solid upgrade for anyone serious about performance." If you're ready to take your vehicle's performance to the next level, the ACT HW4-XXG6 is a reliable choice.

Installation Instructions:

For detailed installation instructions, CLICK HERE.
