ACT MaXX/Race Sprung 6 Pad Kit HC4-XXG6

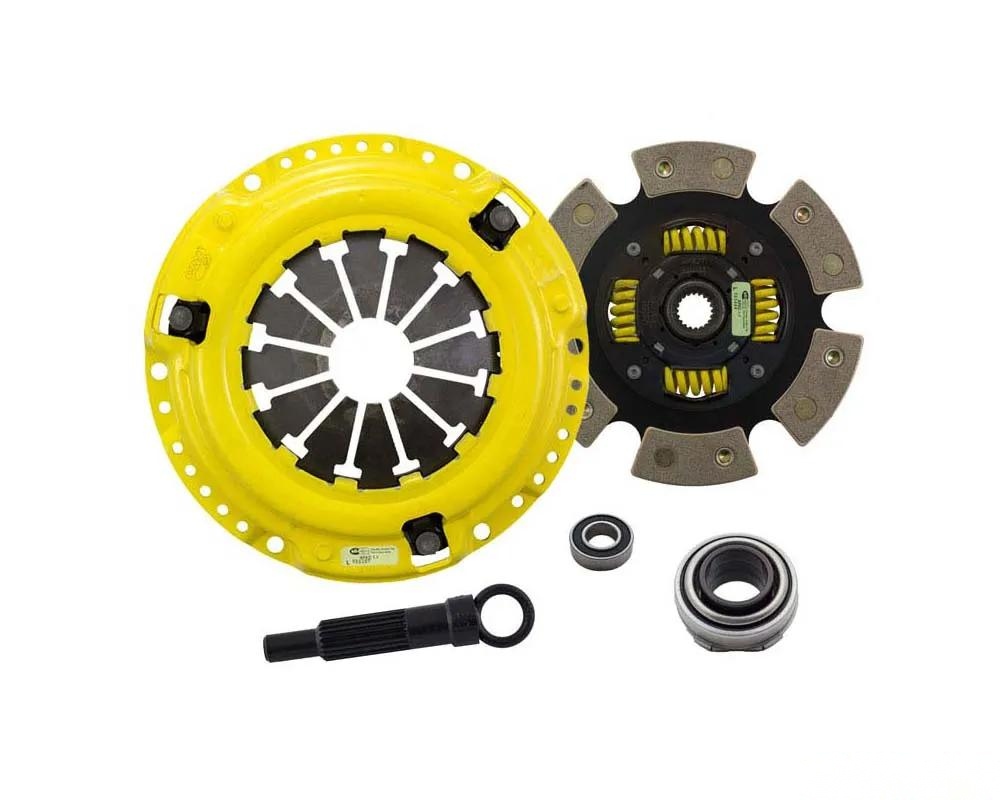

The ACT MaXX/Race Sprung 6 Pad Kit HC4-XXG6 is engineered for those who demand precision and performance from their clutch system. This kit features a MaXX pressure plate, designed with an exclusive diaphragm that increases clamp load while minimizing deflection, which enhances clutch longevity. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional performance under pressure.

Key Features

• Heavy to very heavy pedal effort for aggressive engagement
• Quick shifts with mild to moderate gear rattle
• Moderate friction life, extended by ACT's unique diaphragm design
• Constructed with select ceramic friction materials for high heat tolerance
• 100% clamp load tested and dynamically balanced for reliable high RPM operation

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 1.73
• Product Weight: 11.2 lbs
• Pressure Plate Type: Maxx Xtreme
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes
• Release Bearing Included: Yes
• Grease Included: Yes

Installation Notes

For detailed installation instructions, CLICK HERE.

Fitment

The HC4-XXG6 is compatible with the following models:

• Honda Civic (1988-1991)
• Honda CR-X (1988-1991)

This clutch kit is ideal for high horsepower applications, whether on the street or the track, providing the durability and performance that serious drivers require.
