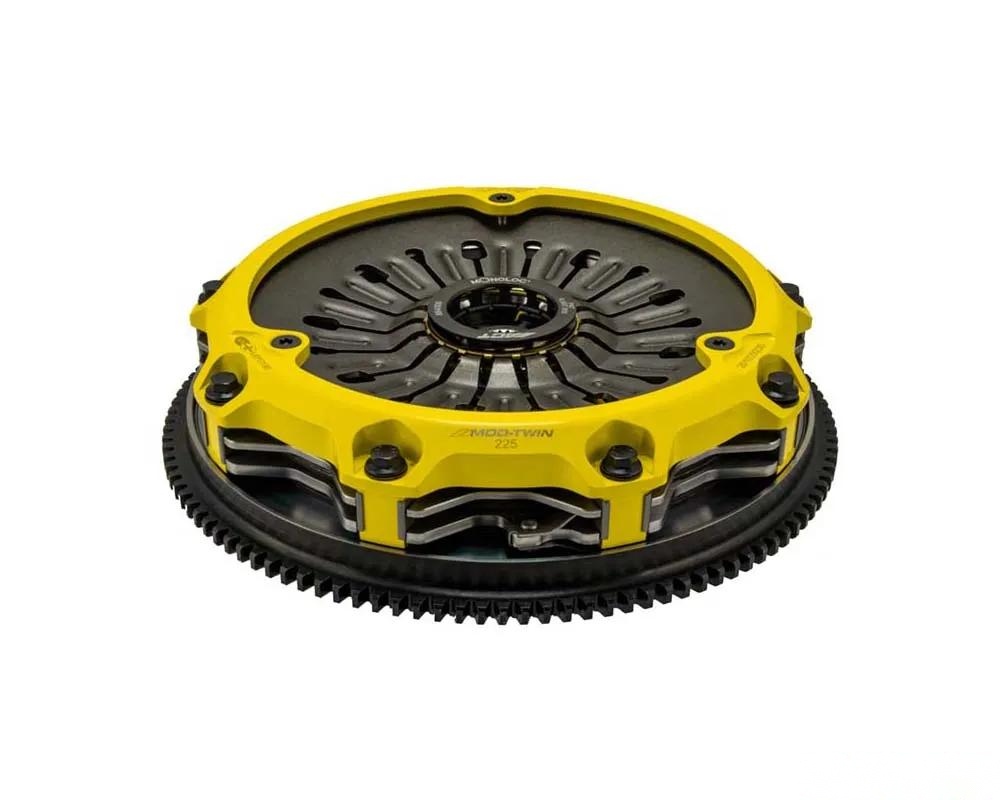

ACT T2R-M01 Mod-Twin 225 XT Sprung Race Kit

The ACT T2R-M01 Mod-Twin 225 XT Sprung Race Kit is engineered for high-performance applications, particularly suited for Mitsubishi Evolution models from 2003 to 2006. This kit combines advanced materials and design features to provide exceptional performance during aggressive launches and seamless shifting, making it ideal for both drag and rally racing.

Key Features

• Dual ceramic friction surfaces enhance torque transfer and durability.
• Mono-Drive sprung hub assembly minimizes driveline shock and extends input shaft longevity.
• Light pedal feel is achieved through a four-stage heat-treated diaphragm spring.
• Puck-style friction plates are crafted from high-quality ceramic materials, ensuring high friction coefficients and superior heat capacity.
• Each kit is 100% clamp load tested, dynamically balanced, and SFI certified for safety and reliability.

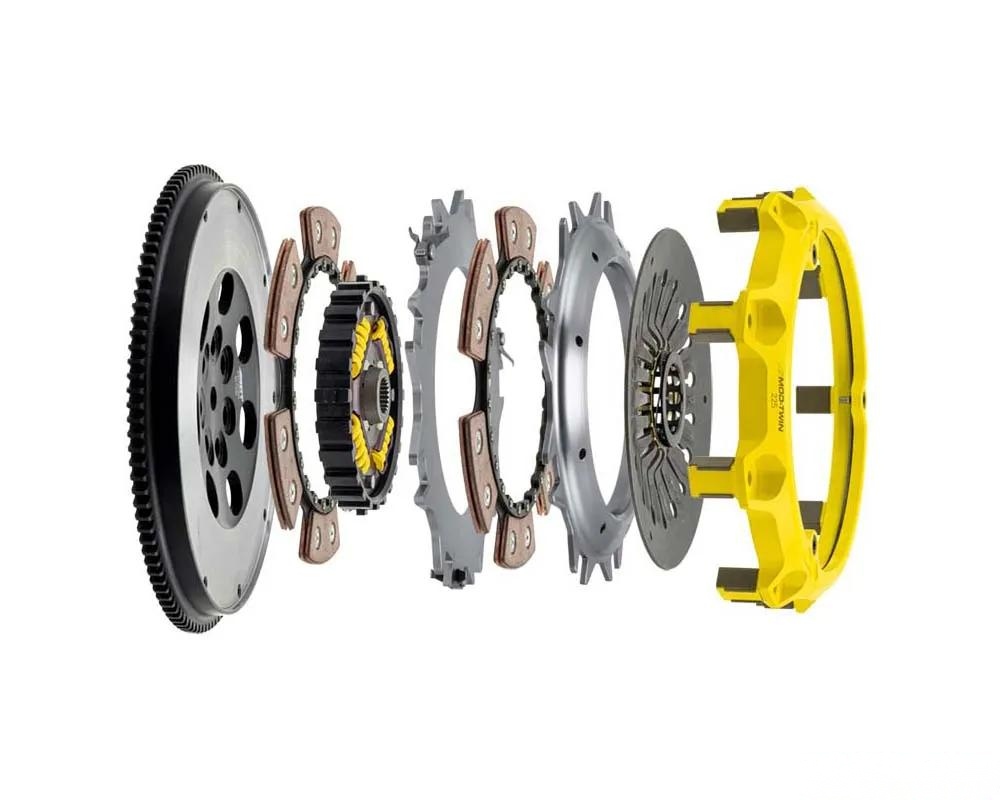

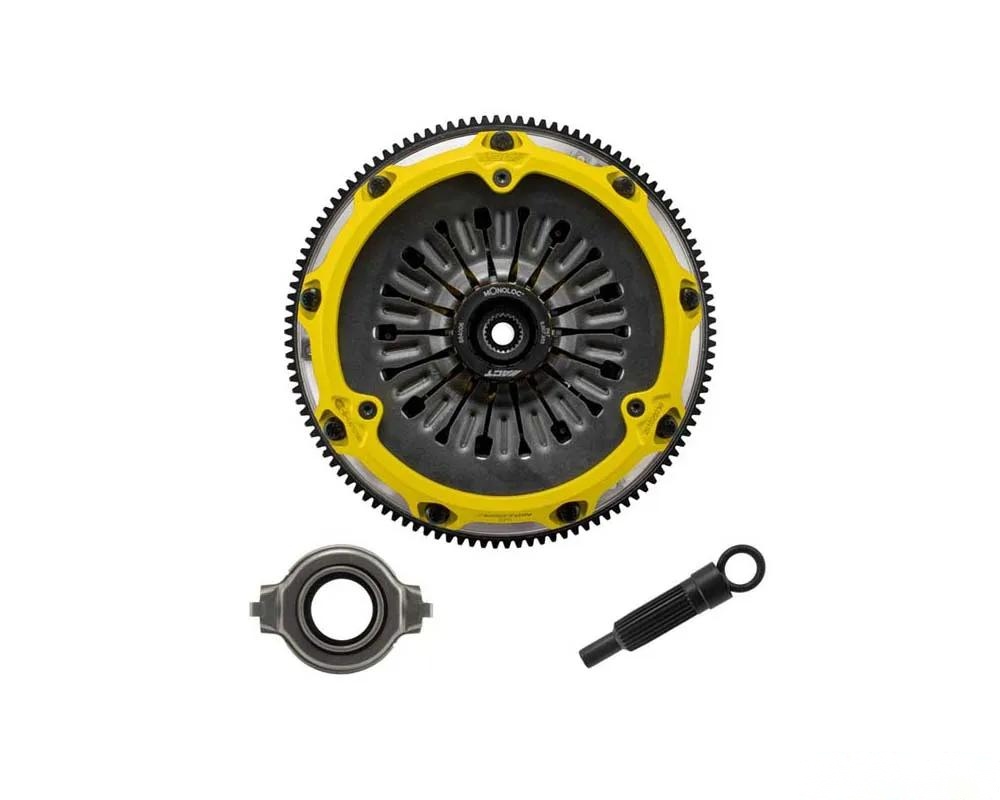

Included Components

The kit comes complete with:

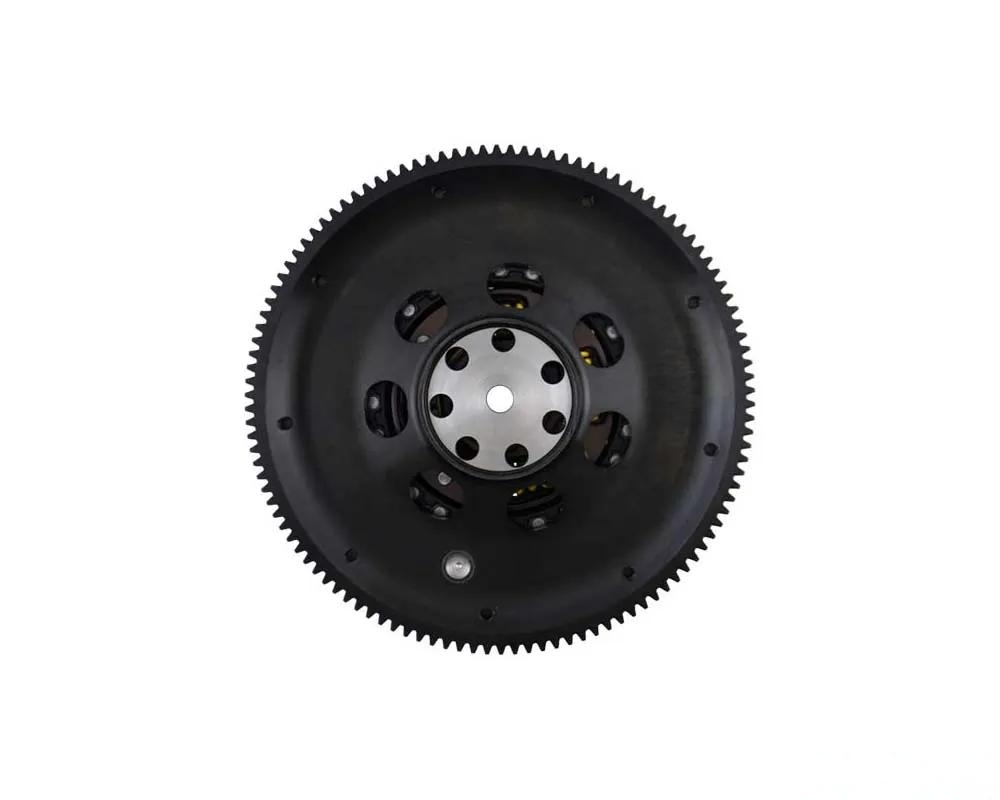

• CNC-machined and dynamically balanced flywheel
• Pressure plate cover and diaphragm spring
• Puck-style ceramic friction plates
• Sprung Mono-Drive hub assembly
• Floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing (if applicable)

Specifications

• Clutch Disc Diameter: 8.8 in (225 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Product Weight: 28.1 lbs
• Torque Capacity: 1120 ft-lbs (2.14 times over OE)
• Pressure Plate Type: Xtreme
• Grease Included: Yes
• Alignment Tool Included: Yes
• SFI Certification: 1.2

Installation Notes

For detailed installation instructions, click here.
