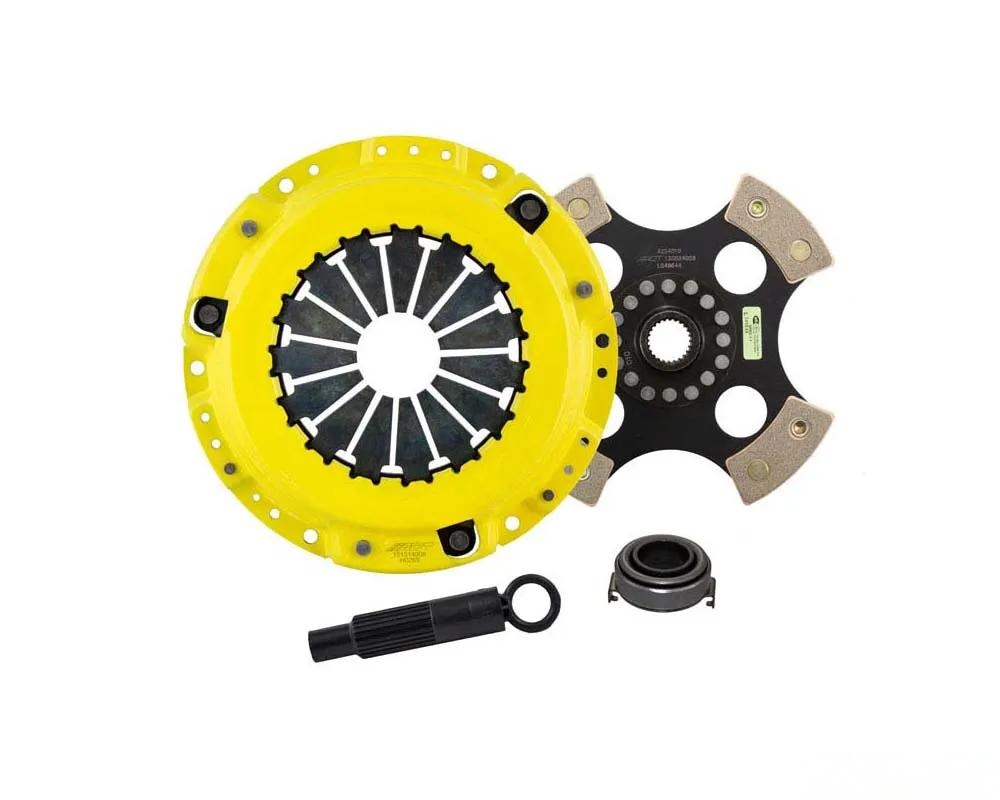

ACT HA3-SPR4 Sport/Race Rigid 4 Pad Kit

The ACT HA3-SPR4 Sport/Race Rigid 4 Pad Kit is engineered for those seeking a significant upgrade in clutch performance. This kit incorporates a Sport pressure plate designed with an exclusive diaphragm configuration that enhances clamp load while minimizing deflection, ultimately extending clutch life. Each diaphragm undergoes a rigorous four-stage heat treatment to ensure consistent, high-performance results.

Key Features

• Light to moderate pedal effort with aggressive engagement, leading to increased gear rattle.
• Moderate friction life, optimized by ACT's unique diaphragm design. Note that the rigid construction may lead to increased spline wear.
• Constructed with select ceramic friction materials, offering high heat tolerance and maximum performance.
• Designed specifically for race applications.
• Each unit is 100% clamp load tested and dynamically balanced for reliable operation at high RPMs.

Specifications

• Clutch Master Cylinder: Not included
• Grease: Included
• Grade Type: Performance
• Pressure Plate Type: Sport
• Release Bearing: Included
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool: Included
• Disc Type: Solid
• Pressure Plate Bolts: Not included
• Clutch Slave Cylinder: Not included
• Flywheel Bolts: Not included
• Product Weight: 11.5 lbs
• Torque Capacity: 310 ft/lbs
• Torque Capacity Over OE: 0.58

Installation Notes

For installation guidance, refer to the installation instructions here.

Confirmed Fitment

• Acura CL (1997-1999)
• Honda Accord (1990-2002)
• Honda Prelude (1992-2001)
