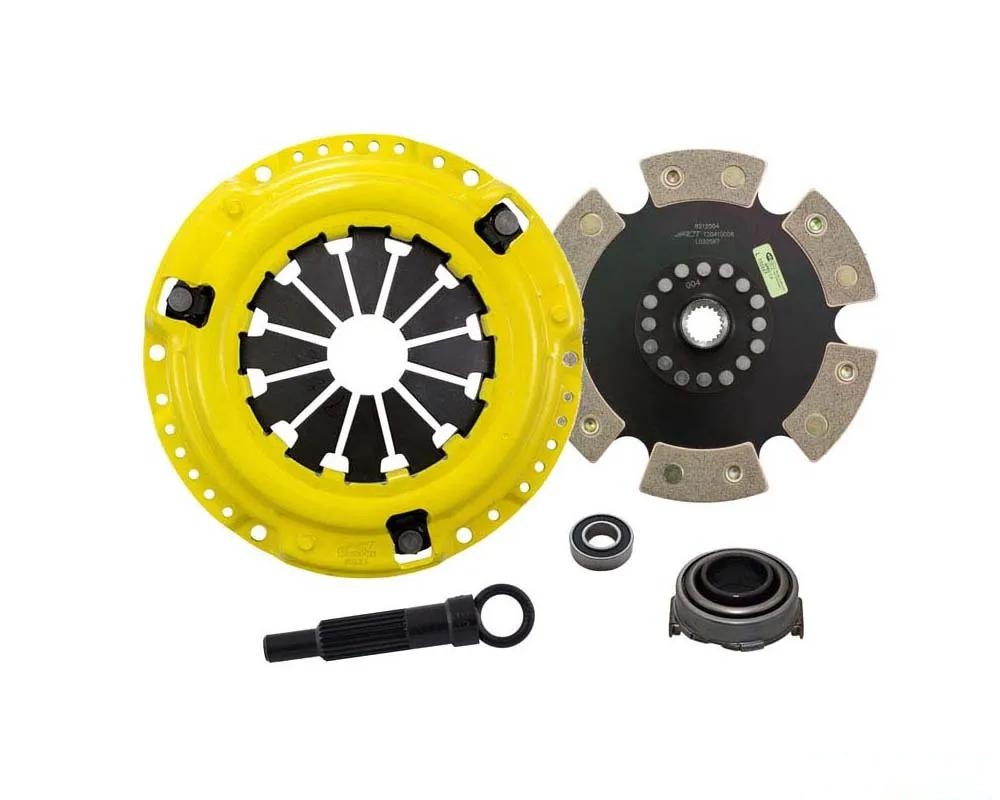

ACT HC5-SPR6 Sport/Race Rigid 6 Pad Kit

The ACT HC5-SPR6 kit is engineered for those seeking a robust upgrade to their clutch system. This Sport pressure plate features an exclusive diaphragm design that enhances clamp load, minimizes deflection, and extends clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring exceptional performance under demanding conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, resulting in increased gear rattle.
• Moderate friction life, optimized by ACT's unique diaphragm design, although the rigid construction may lead to increased spline wear.
• Constructed with high-quality ceramic friction materials, offering superior heat tolerance and performance.
• Designed exclusively for race applications, ensuring reliability in high-performance scenarios.
• Each unit is 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications

• Clutch Master Cylinder: Not included
• Grease: Included
• Grade Type: Performance
• Pilot Bushing: Not included
• Pressure Plate Type: Sport
• Release Bearing: Included
• Clutch Disc Diameter: 8.3 inches (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 inches
• Alignment Tool: Included
• Disc Type: Solid
• Pressure Plate Bolts: Not included
• Clutch Slave Cylinder: Not included
• Flywheel Bolts: Not included
• Pilot Bearing: Included
• Product Weight: 10.3 lbs
• Torque Capacity: 250 ft/lbs
• Torque Capacity Over OE: 0.54

Install Instructions

For detailed installation instructions, please CLICK HERE.

Fitment

This clutch kit is compatible with:

• Acura EL (1997-2005)
• Honda Civic (1992-2005)
• Honda del Sol (1993-1997)
