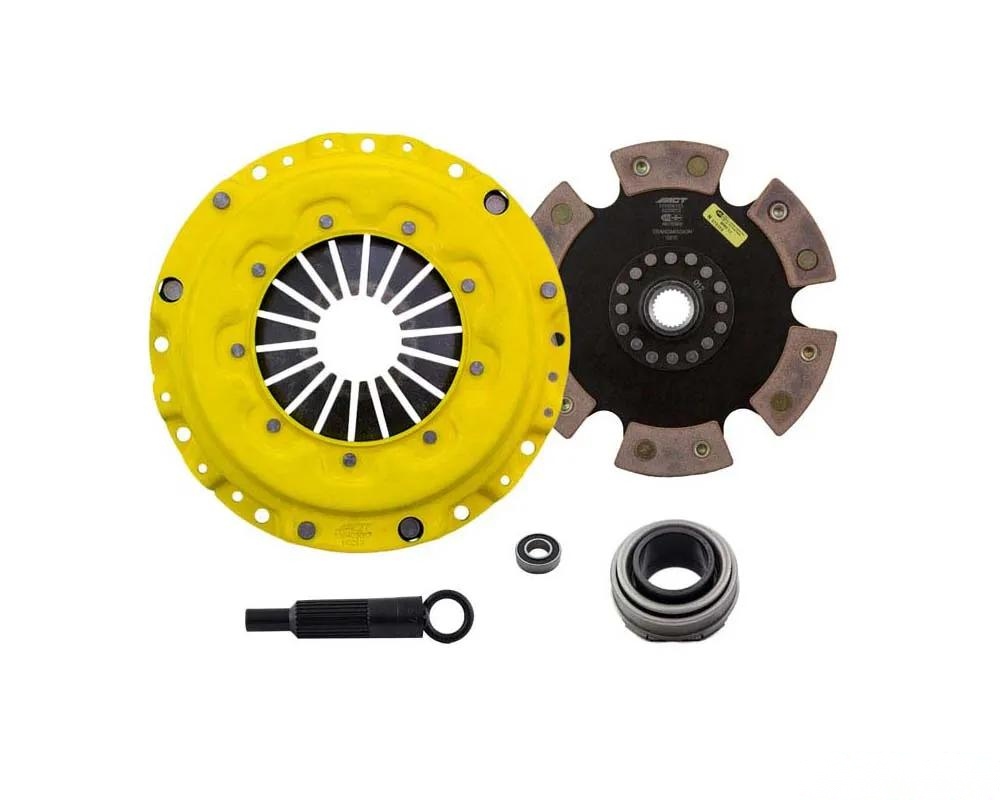

ACT AI2-SPR6 Sport/Race Rigid 6 Pad Kit Overview

For Acura Integra owners from 1990 to 1991 looking to enhance their vehicle's performance, the ACT AI2-SPR6 Sport/Race Rigid 6 Pad Kit is a game changer. This kit is designed with a Sport pressure plate that elevates your clutch system, ensuring you get the most out of your driving experience. The exclusive diaphragm design not only increases clamp load but also reduces deflection, maximizing the lifespan of your clutch.

Why Choose the AI2-SPR6?

The four-stage heat-treating process applied to all diaphragms guarantees durability and performance under pressure. The precision cover stampings on the ACT pressure plates deliver rigidity and consistency that you can trust. With high-quality ceramic friction materials used in the 6-pad rigid race discs, you can expect quicker shifts and smooth operation, essential for both street and track applications.

While the 6-pad design offers harsher engagement, it significantly improves shift speed, making it ideal for those who demand rapid gear changes. This kit is particularly recommended for larger clutch sizes, allowing for better heat absorption during intense driving.

Installation Made Easy

Ready to install? Check out the detailed installation guide here.

Features

• Light to moderate pedal effort with aggressive engagement and increased gear rattle.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design, though it may lead to increased spline wear.
• Engineered for high heat tolerance and maximum performance using select ceramic friction materials.
• Designed for race use only.
• 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Sport
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 12.4 lbs
• Torque Capacity: 280 ft/lbs
• Torque Capacity Over OE: 0.52

Fitment

This kit is specifically designed for the following vehicles:

• Acura Integra (1990-1991)

Customer Feedback

One Acura Integra owner shared their experience: "After installing the ACT AI2-SPR6, my shifts are noticeably quicker during spirited driving. The engagement is definitely more aggressive, but it feels great when pushing my car to the limits!"
