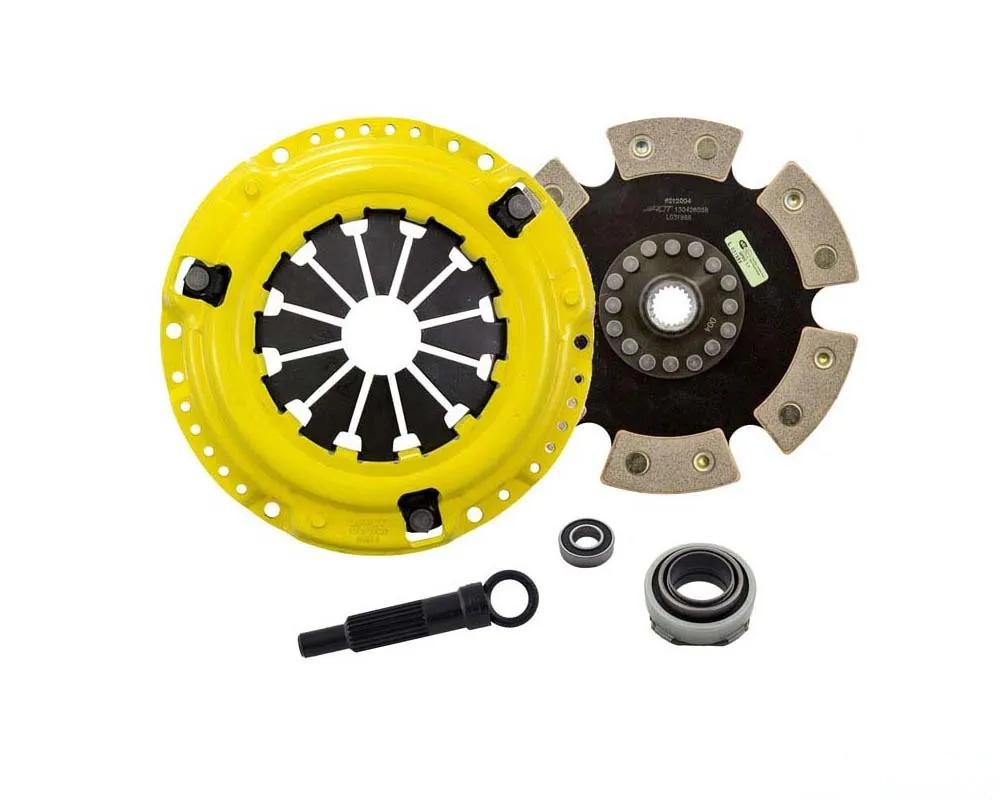

ACT HW4-SPR6 Sport/Race Rigid 6 Pad Kit

Upgrade your driving experience with the ACT HW4-SPR6 Sport/Race Rigid 6 Pad Kit. Designed specifically for performance enthusiasts, this kit features a robust Sport pressure plate that enhances your vehicle's clutch system. With an exclusive diaphragm design, the HW4-SPR6 increases clamp load, minimizes deflection, and extends clutch life, ensuring you get the most out of every drive.

Each diaphragm undergoes a meticulous four-stage heat-treating process, providing exceptional performance under pressure. The precision cover stampings guarantee rigidity and consistency, making this kit a reliable choice for both street and track use. The 6-pad rigid race discs are crafted from high-quality ceramic friction materials, offering superior heat tolerance and durability.

Customer Feedback

Many users have praised the HW4-SPR6 for its quick shifts and overall performance. One customer noted, "The engagement is definitely harsher, but the speed of shifting is incredible. I've noticed a significant improvement on the track!" Another user mentioned, "It's a bit of a learning curve, but once you get used to it, you won't want to go back."

Features:

• Light to moderate pedal effort with aggressive engagement and increased gear rattle.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design.
• Engineered for precision, using select ceramic materials for maximum performance.
• Recommended for race use only, ensuring optimal performance under demanding conditions.
• 100% clamp load tested and dynamically balanced for high RPM reliability.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Sport
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 10.3 lbs
• Torque Capacity: 250 ft/lbs
• Torque Capacity Over OE: 0.64

Notes:

• Must be used with 90-01 SOHC flywheel.

Fitment:

Compatible with Honda Civic models from 1988 to 1991.
