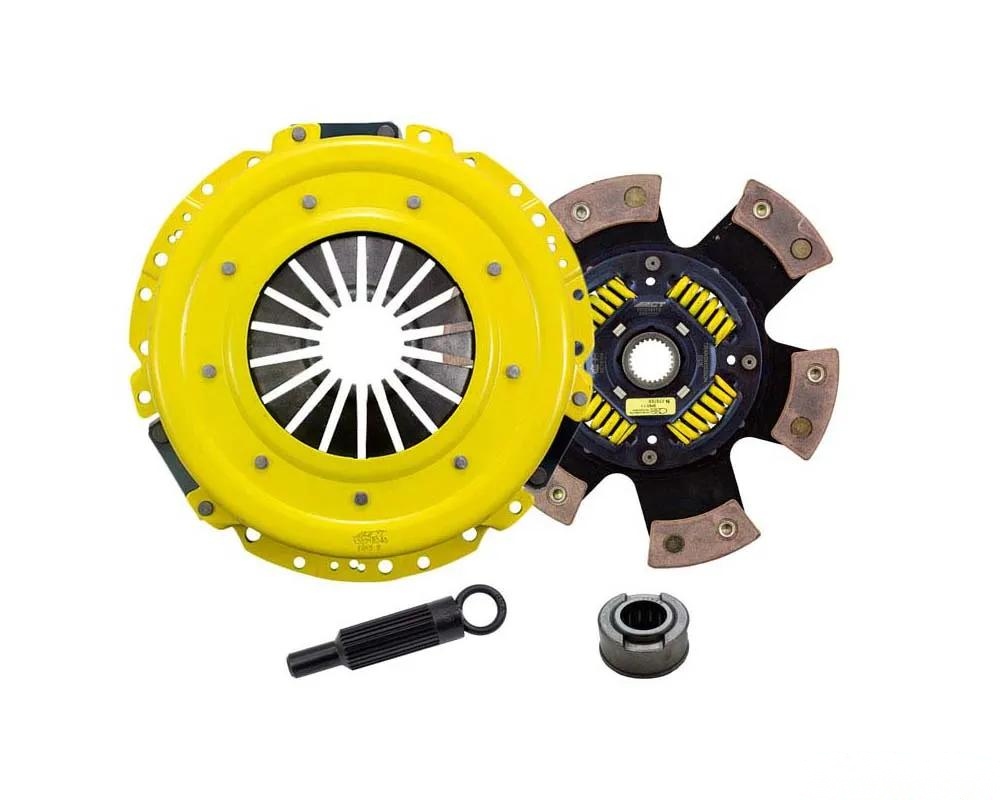

ACT FM5-SPG6 Sport/Race Sprung 6 Pad Kit

The ACT FM5-SPG6 Sport/Race Sprung 6 Pad Kit is engineered for automotive enthusiasts seeking a significant upgrade in clutch performance. This kit features a Sport pressure plate designed to enhance clamp load while minimizing deflection, ultimately extending the lifespan of your clutch system. The exclusive diaphragm design undergoes a rigorous four-stage heat-treating process, ensuring durability and reliability under high-stress conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, resulting in a more responsive driving experience.
• Moderate friction life, enhanced by ACT's innovative diaphragm design.
• Precision-engineered with select ceramic friction materials, providing high heat tolerance for maximum performance.
• Ideal for high horsepower street or race applications.
• 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications

• Clutch Disc Diameter: 11 in (280 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Product Weight: 28.9 lbs
• Torque Capacity: 645 ft/lbs
• Torque Capacity Over OE: 0.55
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Fitment

This kit is compatible with:

• Ford Mustang 2005-2014
• Ford Mustang GT 2005-2010

Additional Information

• Aftermarket 26 spline required.
• Grease included; pressure plate bolts and clutch master/slave cylinders are not included.
