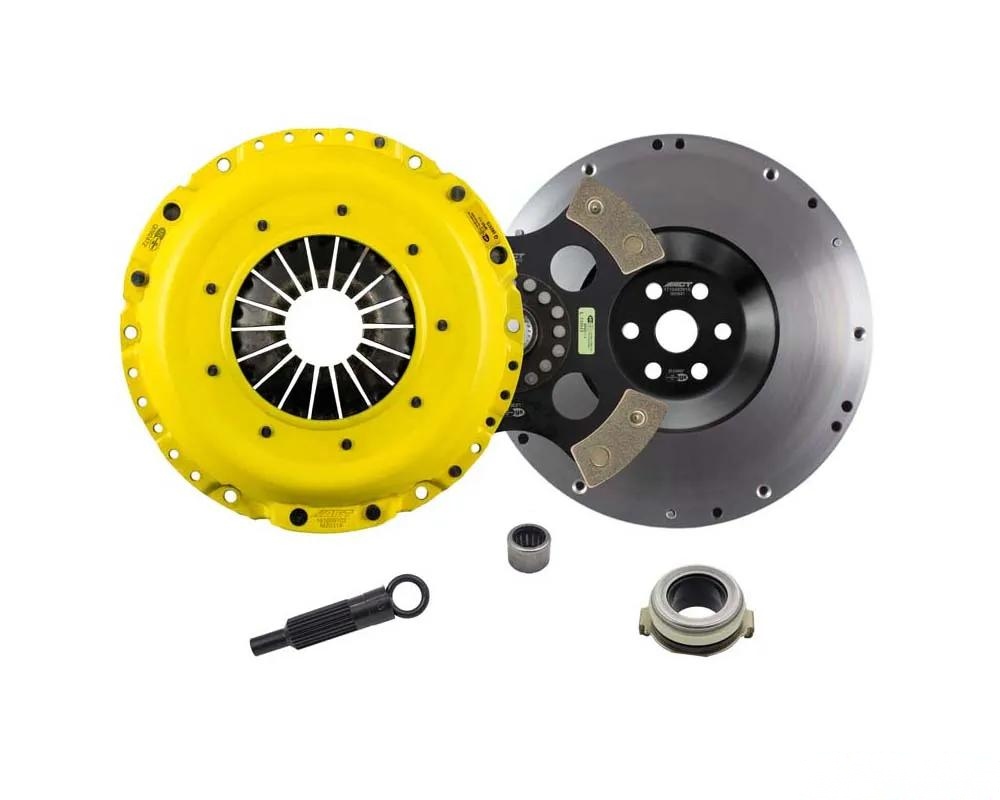

If you're looking to push your ride to the next level, the ACT XT/Race Rigid 4 Pad Kit ZX5-XTR4 is definitely worth your attention. This isn't just another clutch kit; it's built for those who really drive hard and demand performance. With its Xtreme pressure plate, you get a setup that?s designed to handle the heat?literally. The exclusive diaphragm design cranks up the clamp load while minimizing deflection, which means you get a longer-lasting clutch that can take a beating. Seriously, these diaphragms go through a four-stage heat-treating process, so you know they?re tough.

The pressure plate itself is no joke. With precision cover stampings, it brings a level of rigidity and consistency that?s hard to find. And let?s talk about the 4-pad rigid race discs. Made with high-quality ceramic friction materials, they?re ready to deliver. The chrome-moly hub is heat-treated for added strength and durability, so you won?t have to worry about it failing on you during a race or a spirited drive.

What really sets this kit apart is how it feels on the road. The lightweight, rigid design allows for quicker shifts, making your driving experience smoother and more responsive. Sure, the engagement can be a bit harsher, but that?s the trade-off for faster gear changes. This kit is especially suited for smaller engines, where every ounce of performance counts.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Expect moderate to heavy pedal effort with aggressive engagement and some increased gear rattle.
• While the friction life is moderate, ACT?s diaphragm design helps extend it, though be aware that the rigid setup might wear on the splines a bit faster.
• This kit is carefully engineered and precisely assembled, using select ceramic materials that can handle high heat for maximum performance.
• Keep in mind, this clutch is really recommended for race use only.
• Every unit is 100% clamp load tested and dynamically balanced, ensuring smooth operation even at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Flywheel Type: Streetlite
• Product Weight: 36.3 lbs
• Torque Capacity: 681 ft/lbs (1.29 over OE)

Notes:

• This is a conversion kit that includes the ACT Streetlite flywheel, and pressure plate bolts (M8-1.25 x 16mm) are included as well.

Product Fitment:

Mazda Mazda 3 (2004-2013)
Mazda Mazda 6 (2003-2008)
