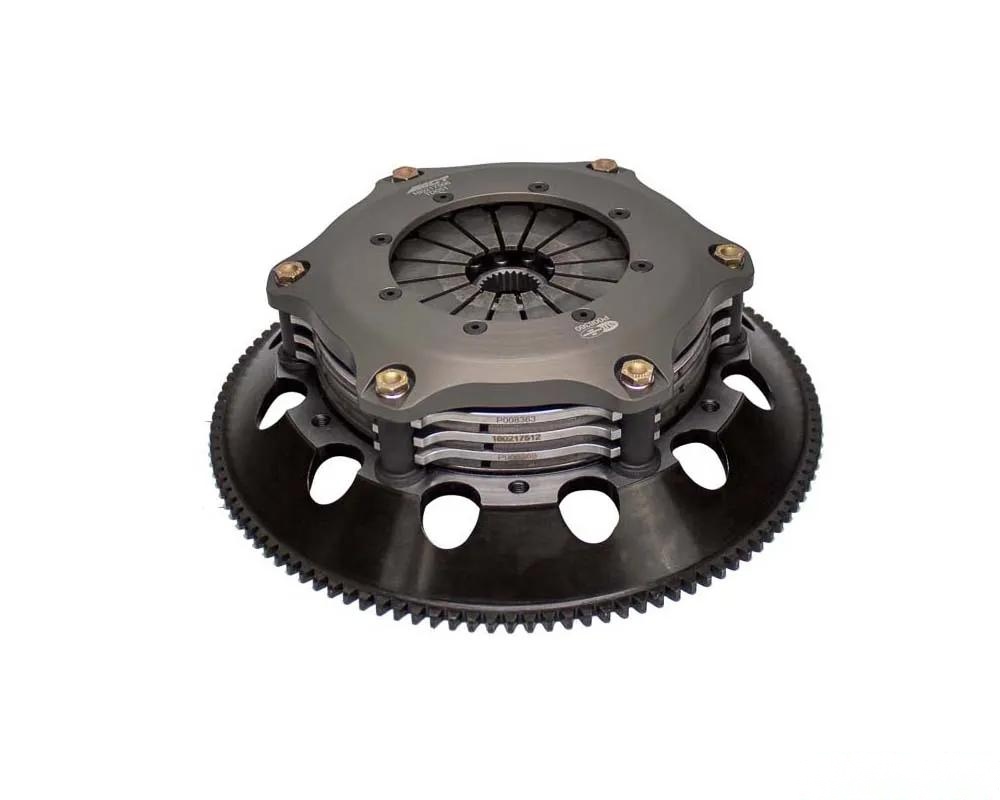

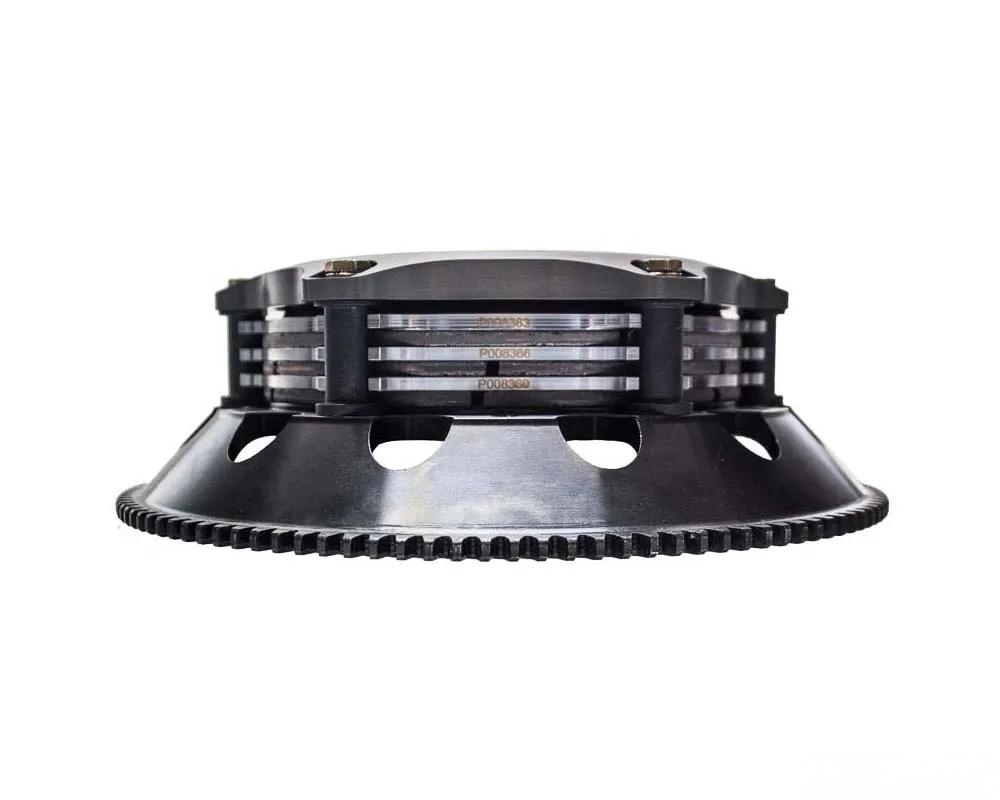

Advanced Clutch Triple Disc HD/SI Race Kit T1R3-T01

If you're serious about performance and looking for a clutch that can handle the heat, the ACT T1R3-T01 Triple Disc Race Kit is engineered for you. Designed as a direct bolt-in upgrade, this kit is perfect for car owners who want to push their vehicles to the limits without the hassle of modifications. Whether you're racing or just want to enhance your vehicle's capabilities, this clutch kit delivers unmatched torque capacity and heat resistance, making it a top choice for high-performance applications.

Fitment

This clutch kit is specifically developed for the 2JZ-GTE engine paired with a G-Force transmission. It's compatible with the QuickTime bell housing #RM-4031 without a block plate and requires the Tilton hydraulic release bearing #60-4420 for optimal performance.

Key Features

• Light to moderate pedal effort ensures comfortable engagement.
• Quick throttle response and predictable engagement keep you in control.

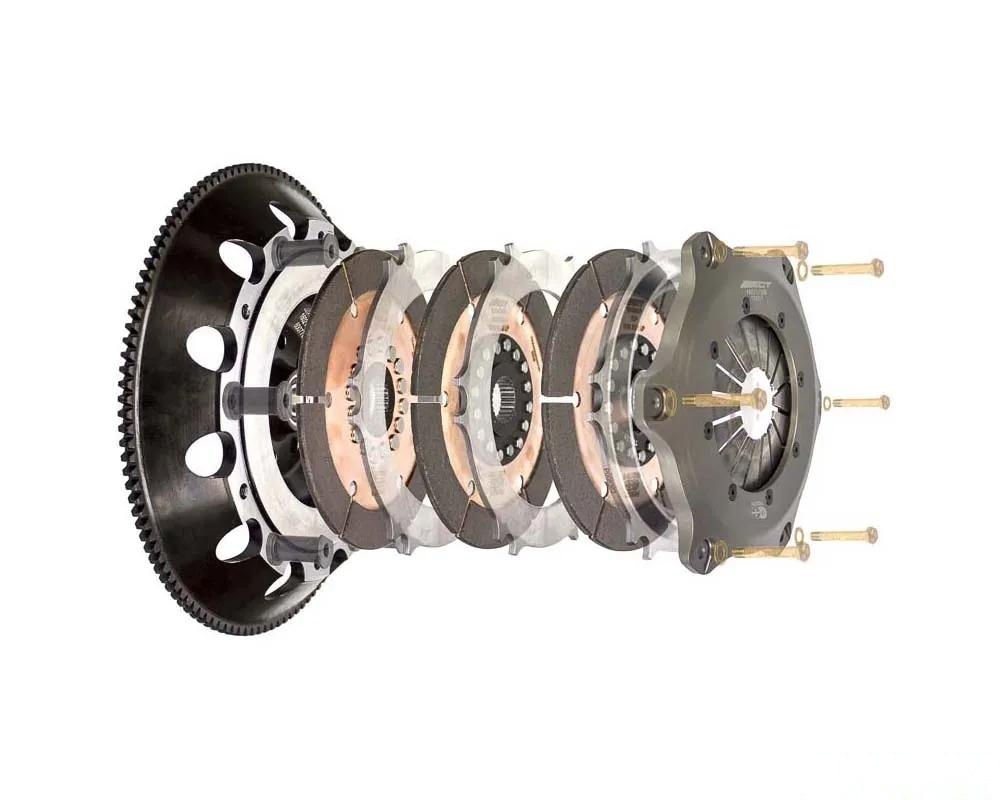

• Constructed with sintered iron race discs for the highest torque capacity available.
• All components are CNC-machined and dynamically balanced for reliability.
• Exclusive four-stage heat-treating process on diaphragms enhances durability.
• Designed for high horsepower race use only; not intended for street applications.

Technical Specifications

• Clutch Disc Diameter: 7.25 in (184 mm)
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 1637 ft/lbs
• Product Weight: 23 lbs
• SFI Rating: 1.2

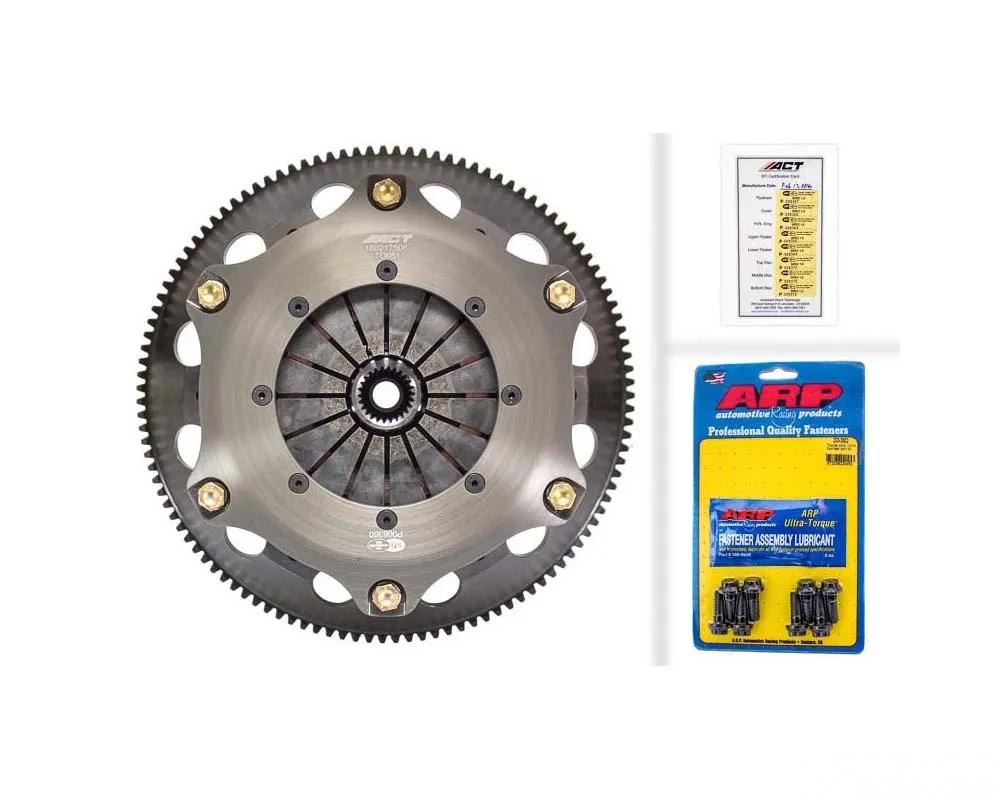

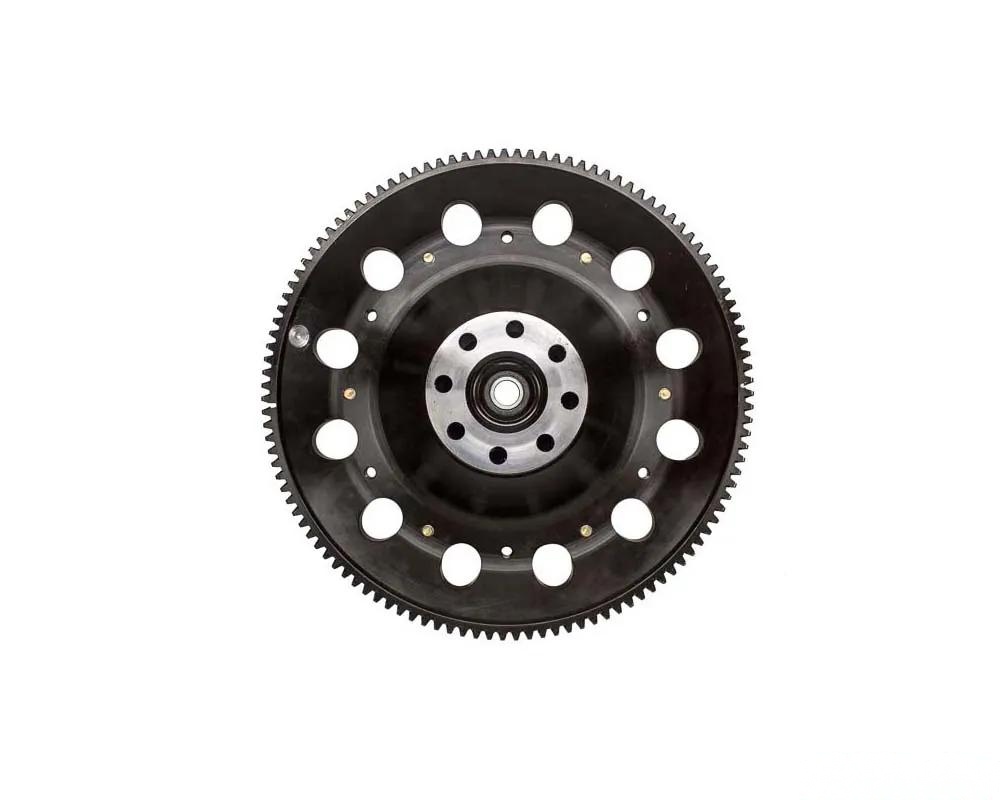

• Flywheel Included: Yes
• Grease Included: Yes
• Pressure Plate Type: Heavy Duty
• Alignment Tool Included: Yes
• Flywheel Bolts Included: Yes

Installation Instructions

• For detailed installation instructions, CLICK HERE.

Customer Feedback

One 2JZ-GTE owner shared their experience: “After installing the ACT T1R3-T01 on my Supra, I immediately noticed the difference. The engagement is sharp, and it holds power like a champ. It’s perfect for my track days, and I can feel the increased responsiveness!”

Upgrade your clutch system with the ACT T1R3-T01 Triple Disc Race Kit and experience the difference in performance and reliability. This is not just a part; it's an investment in your vehicle's capability to perform under pressure.
