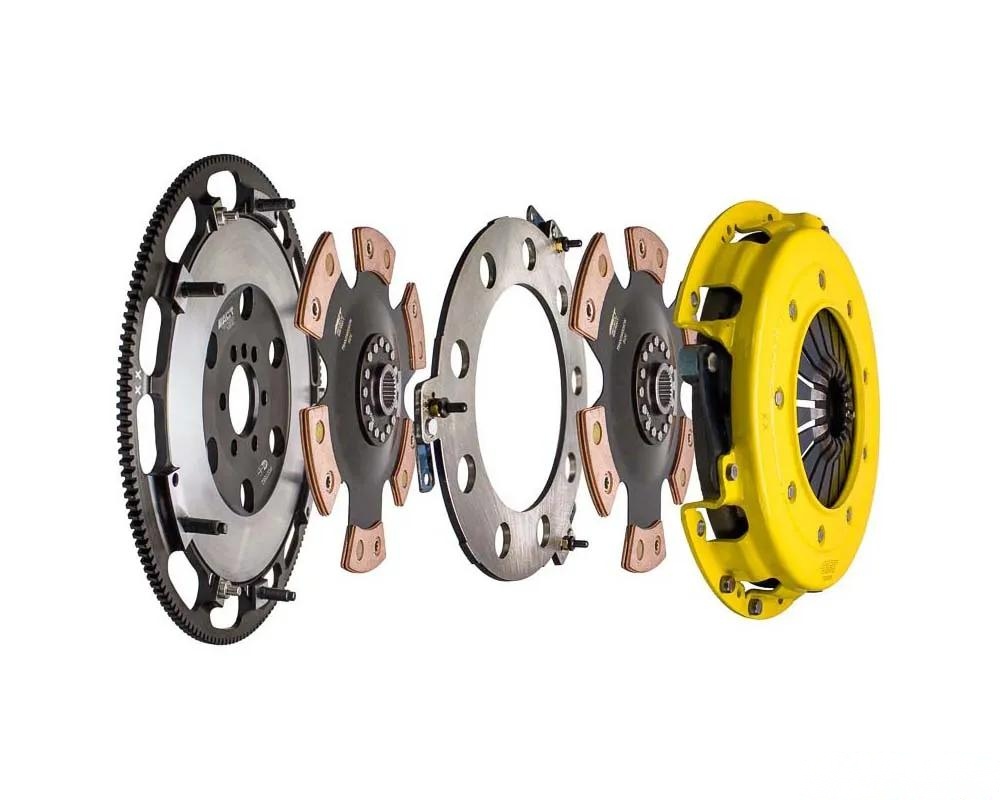

ACT T3R-G01 Twin Disc MaXX XT Race Kit

The ACT T3R-G01 Twin Disc MaXX XT Race Kit is engineered for high-performance applications, delivering enhanced durability and performance over traditional single disc setups. This twin disc kit features a unique Positive Lift Floater System, which minimizes floater rattle and eliminates wear on posts, ensuring a quieter operation and longer lifespan.

Key Features

• Double disc surfaces for improved wear resistance and heat capacity.
• Heavy to very heavy pedal effort, designed for aggressive engagement.
• Constructed with high-quality ceramic friction materials for optimal heat tolerance.

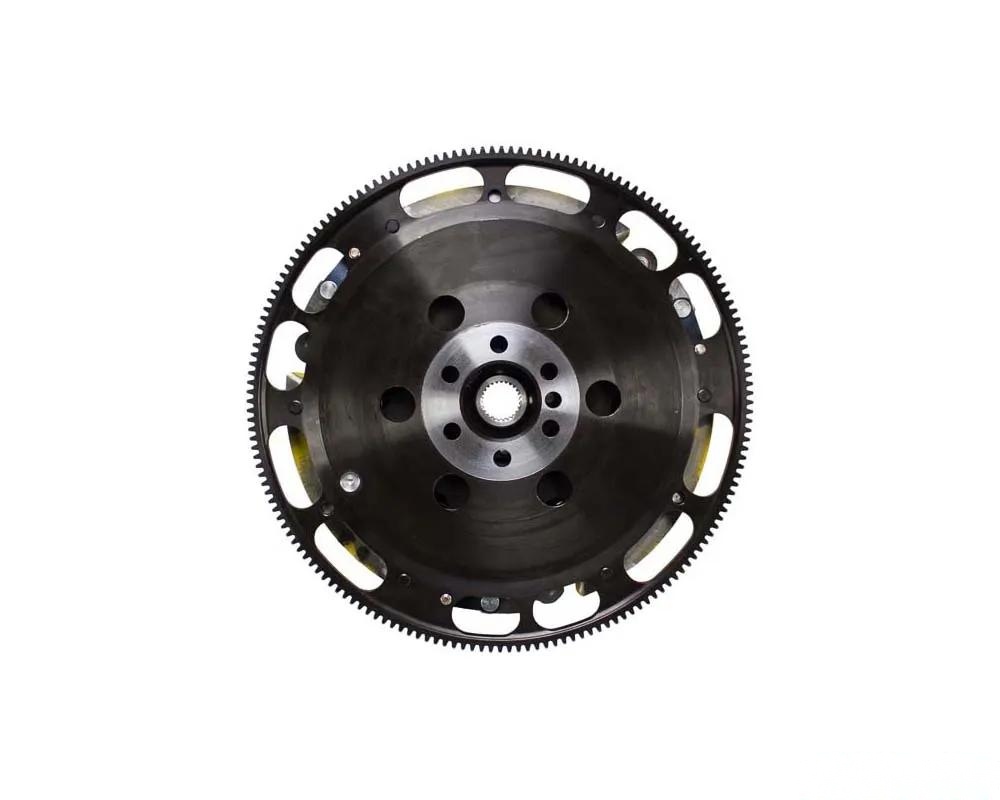

• Includes a CNC-machined and dynamically balanced flywheel for seamless installation and operation.
• Recommended for race applications only, with a torque capacity of 1496 ft/lbs.

Specifications

• Clutch Disc Diameter: 10.5 in (267 mm)
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Product Weight: 41.1 lbs
• SFI Rating: 1.2
• Torque Capacity Over OE: 2.13
• Grease Included: Yes
• Alignment Tool Included: Yes
• Flywheel Included: Yes
• Disc Type: Solid

Installation Notes

• For detailed installation instructions, CLICK HERE.

Fitment

• Chevrolet Camaro 2010-2015
• Chevrolet Camaro Z28 2014-2015
• Chevrolet Corvette 1997-2013
• Chevrolet Corvette Grand Sport 2010-2013
• Chevrolet Corvette Z06 2001-2004 & 2006-2013
• Chevrolet TrailBlazer 2002-2009
• Pontiac GTO 2004-2006
