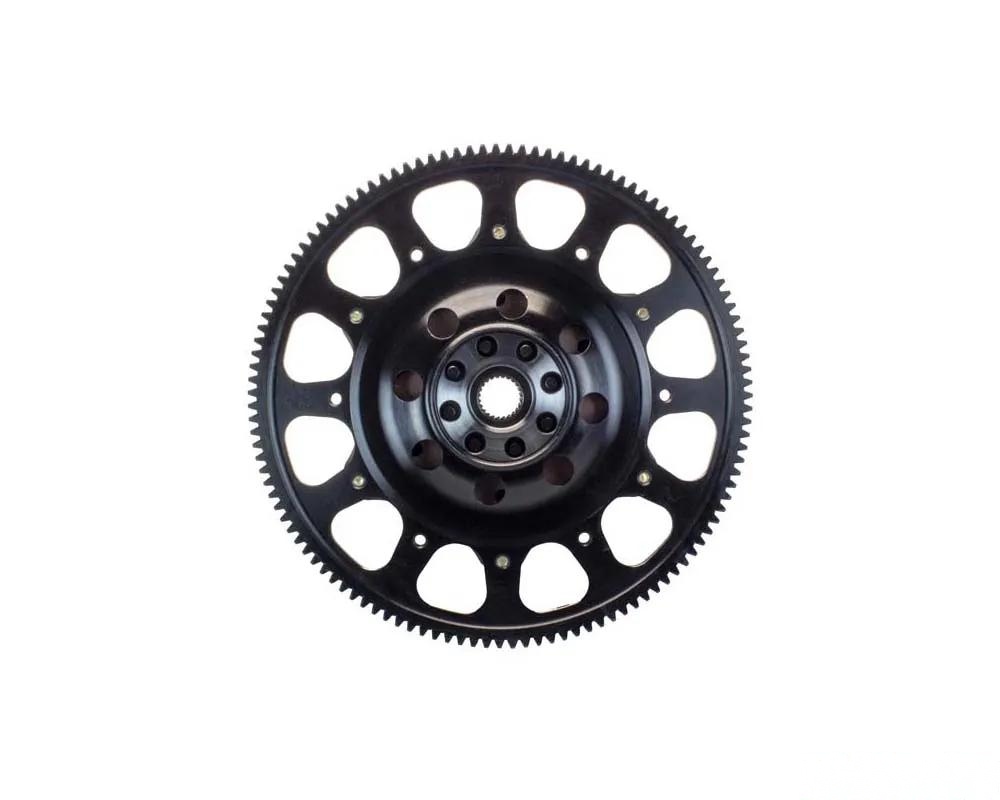

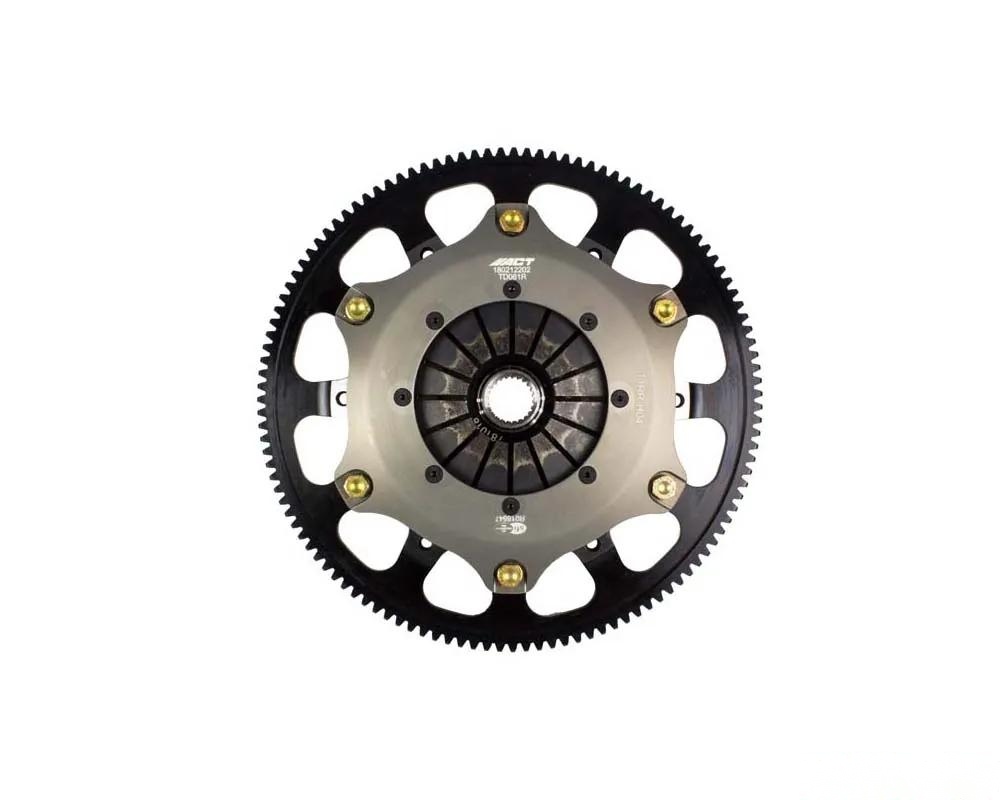

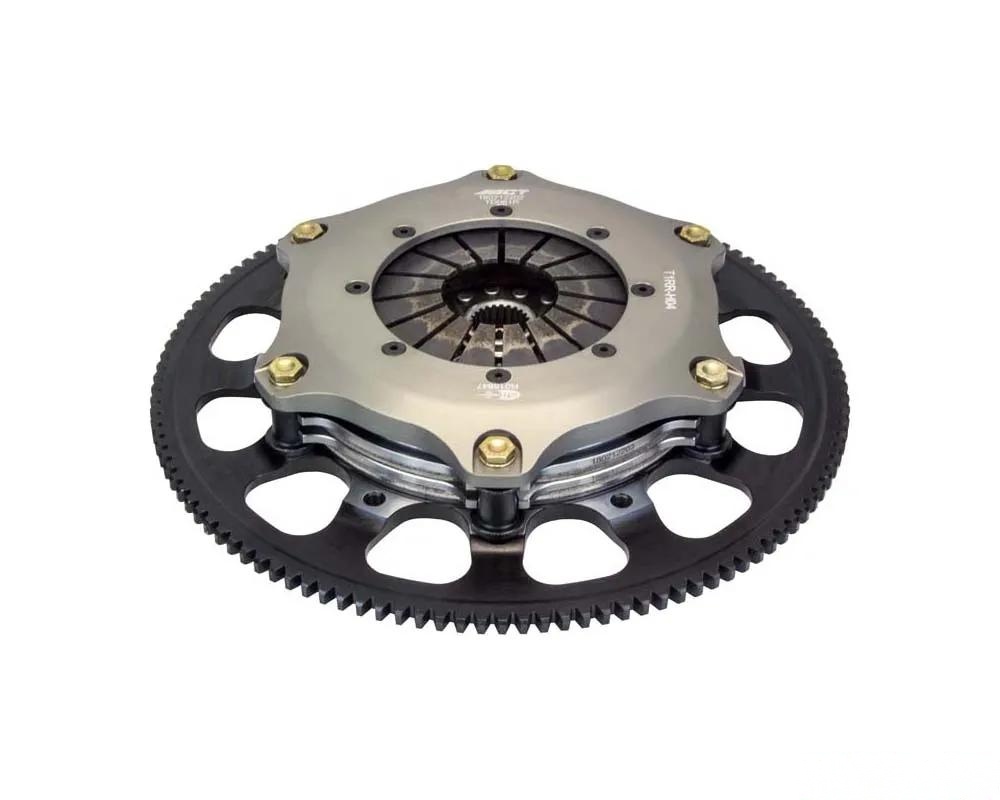

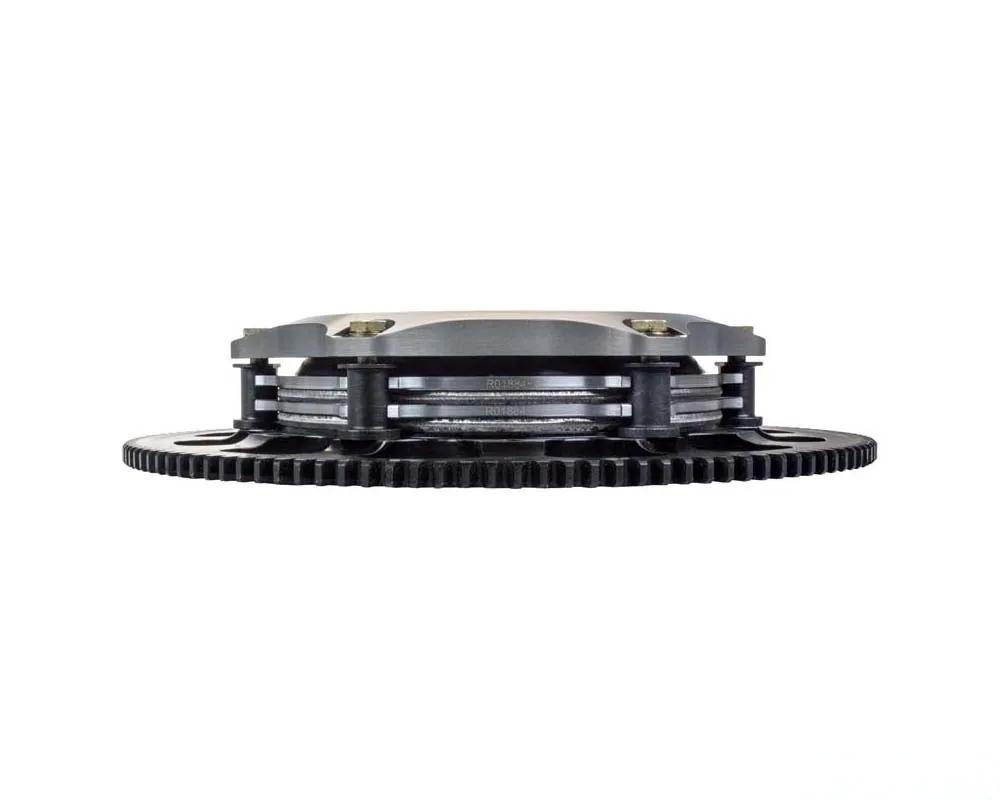

ACT T1RR-H04 Twin Disc Sint Iron Race Kit

The ACT T1RR-H04 Twin Disc Sint Iron Race Kit is engineered for high-performance applications, specifically designed for racers who demand reliability and efficiency from their clutch system. This kit features sintered iron race discs, which provide the highest torque capacity available in ACT's lineup, making it ideal for serious track use.

Key Features

• High torque capacity of 776 ft/lbs, exceeding standard OE performance by 3.04 times.
• Light to moderate pedal effort for improved driver feedback and control.
• Quick engagement and throttle response, optimized for racing scenarios.
• Constructed with ACT's exclusive diaphragm and hardened posts to withstand extreme heat and abuse.
• Precision-engineered chromoly hub, heat-treated for enhanced strength and durability.
• 100% clamp load tested and dynamically balanced for reliable performance at high RPMs.

Specifications

• Clutch Disc Diameter: 7.25 inches (184 mm)
• Disc Material: Sintered Iron
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 inches
• Product Weight: 16.9 lbs
• SFI Certification: 1.2
• Includes alignment tool and grease; pilot bearing and release bearing included.

Installation Notes

This kit is a direct bolt-in solution, requiring no additional modifications for installation. Ensure to follow the provided installation instructions for optimal results. For detailed instructions, CLICK HERE.

Confirmed Fitment

• Acura RSX: 2002-2006
• Honda Civic:

Recommended for high horsepower race applications only; not intended for street use. The design may increase spline wear due to its rigid construction, so consider this when planning your setup.
