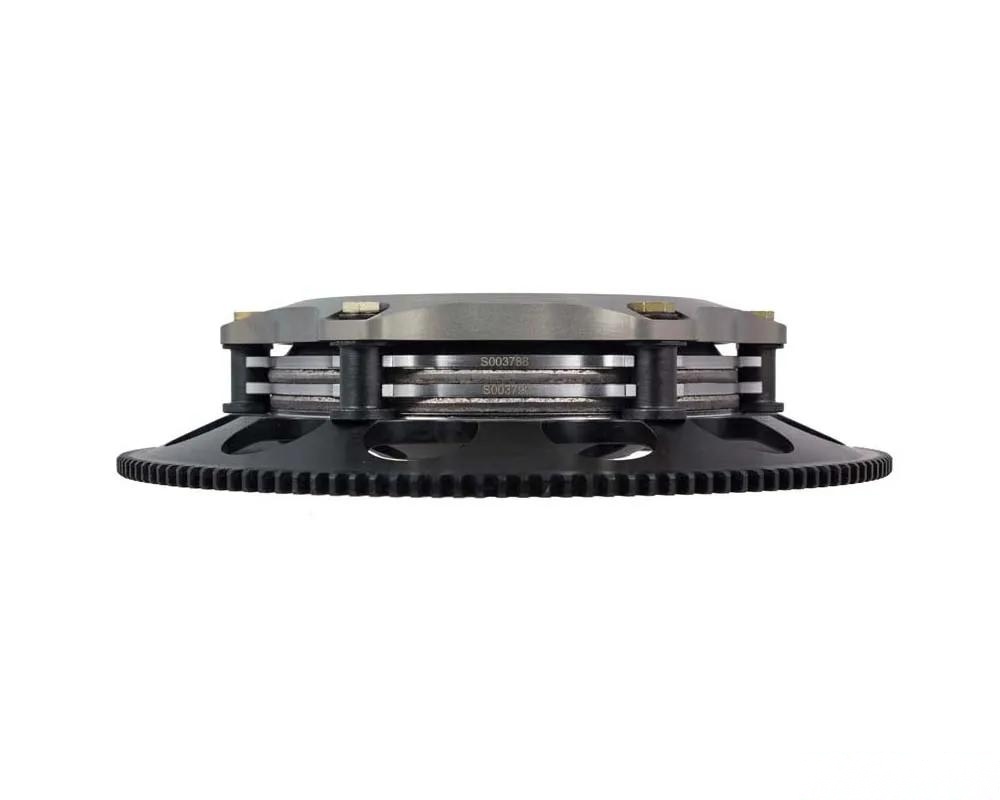

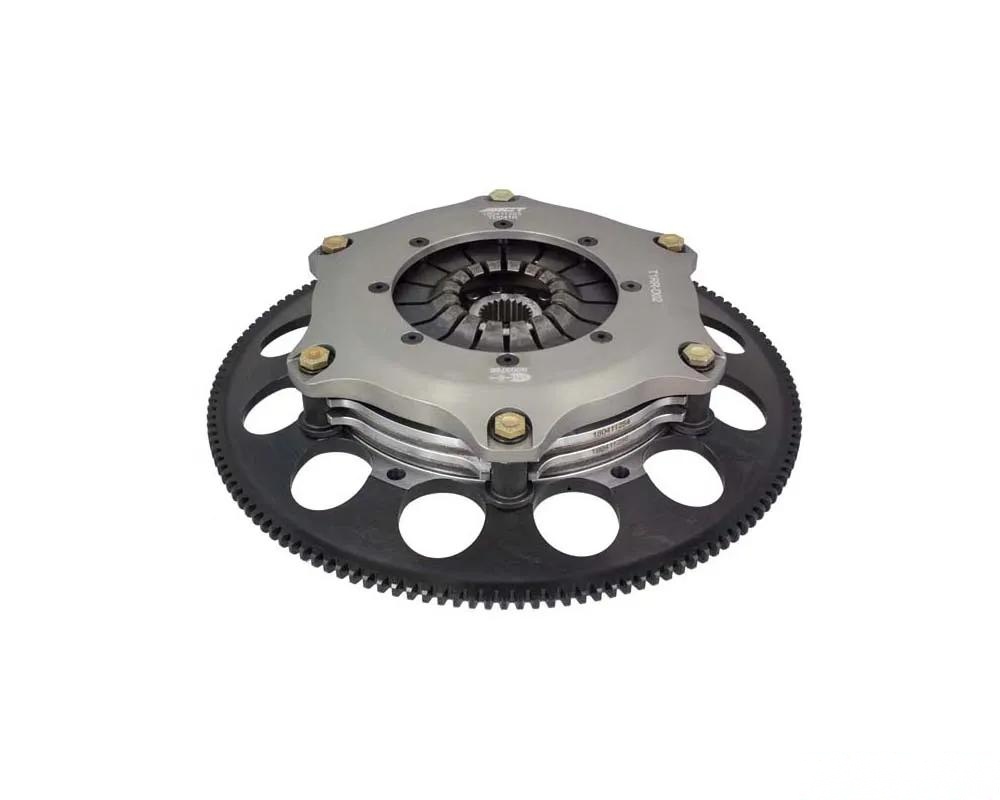

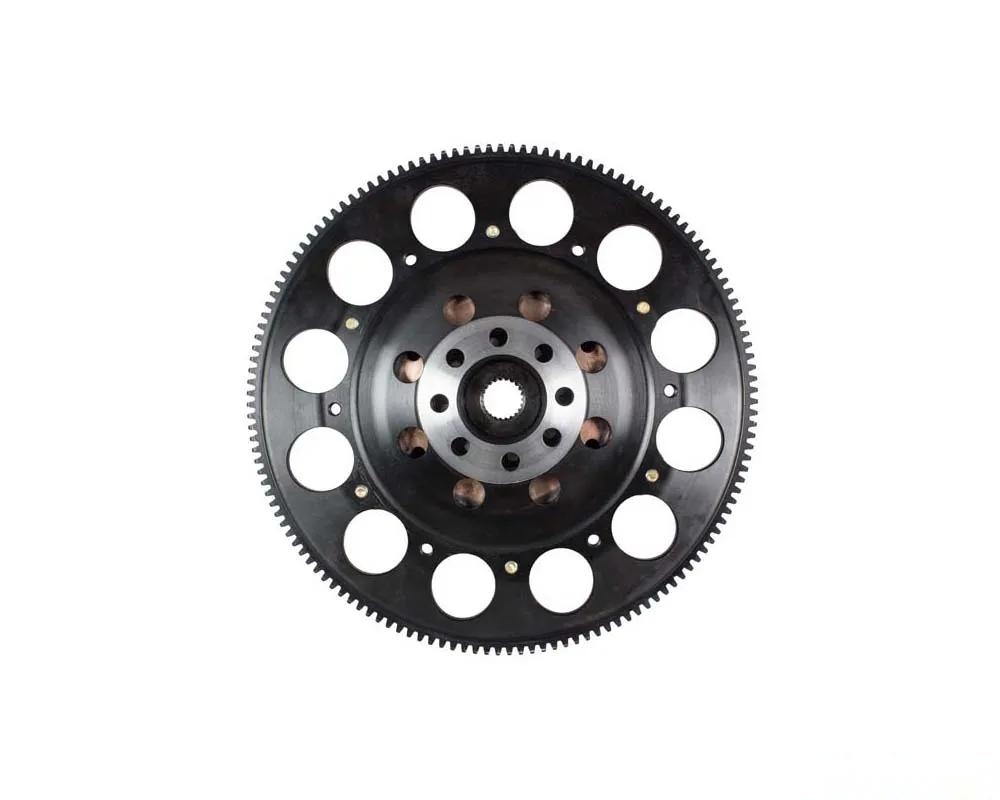

ACT T1RR-D02 Twin Disc Sint Iron Race Kit

The ACT T1RR-D02 Twin Disc Sint Iron Race Kit is engineered for serious racing applications, providing a direct bolt-in solution that requires no additional modifications. This kit is designed for high-performance vehicles that demand maximum torque capacity and heat resistance, making it ideal for competitive racing environments.

Key Features

• Utilizes sintered iron race discs for superior torque capacity, rated at 776 ft/lbs.
• Pedal effort is light to moderate, with quick engagement and enhanced throttle response.
• Increased clamp load by 80-90% compared to stock setups, providing improved performance under extreme conditions.
• CNC-machined and dynamically balanced flywheel ensures smooth operation at high RPMs.
• All components undergo a rigorous four-stage heat-treating process for enhanced durability.

Specifications

• Clutch Disc Diameter: 7.25 in (184 mm)
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in
• Disc Type: Solid (Sprung)
• Product Weight: 15.5 lbs
• SFI Rating: 1.2
• Torque Capacity Over OE: 1.46

Installation Notes

This kit includes a pressure plate, two sintered iron discs, a floater, a flywheel, and an alignment tool. A release bearing is included, but a clutch master cylinder, pilot bearing, and pilot bushing are not part of the kit. For detailed installation instructions, CLICK HERE.

Fitment

The ACT T1RR-D02 is compatible with the following vehicle:

• Dodge Neon (2003-2005)

This kit is recommended for high horsepower race use only and is not intended for street applications. Ensure your vehicle meets the specifications for optimal performance and reliability.
