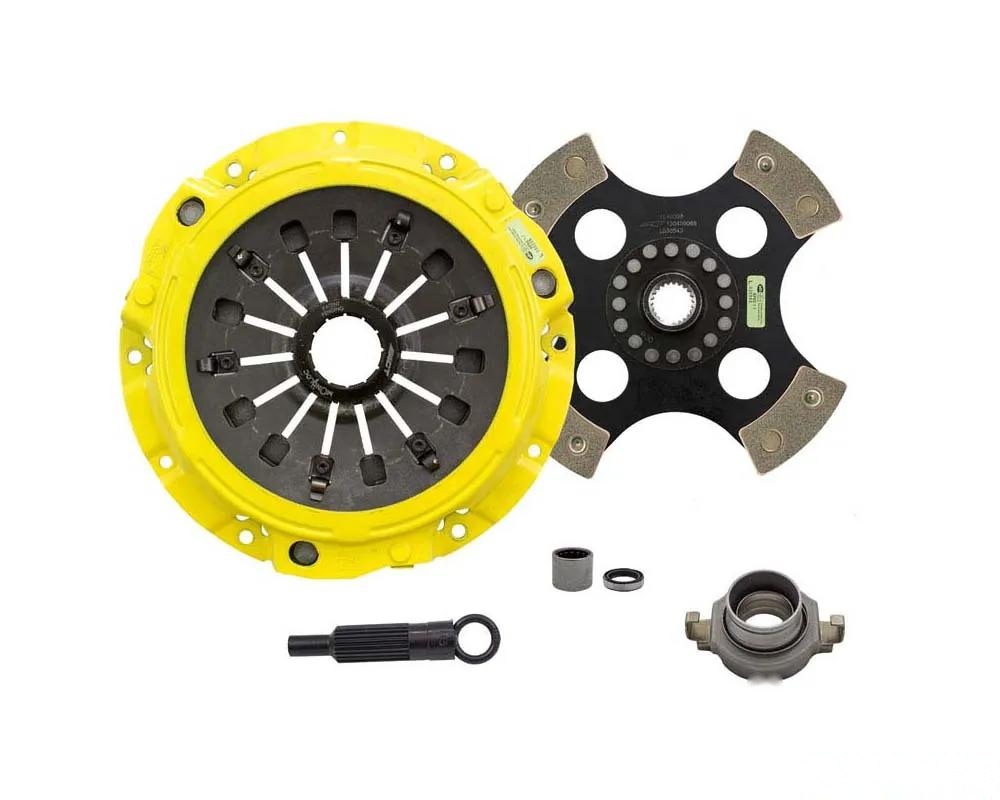

ACT ZX6-XTR4 Clutch Kit

The ACT ZX6-XTR4 is engineered for those who demand high performance from their clutch system. This kit features the Xtreme pressure plate, designed specifically for aggressive driving and racing applications. The unique diaphragm design increases clamp load while minimizing deflection, which enhances clutch longevity and reliability under extreme conditions.

Key Features

• Heavy-duty Xtreme pressure plate for increased clamp load
• Four-stage heat-treated diaphragm for maximum durability
• Precision cover stampings ensure rigidity and consistent performance
• 4-pad rigid race disc made from high-quality ceramic friction materials
• Chrome-moly hub heat-treated for superior strength
• Lightweight design for quicker shifts and smooth operation
• Harsher engagement with faster shifting capabilities

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Torque Capacity: 575 ft/lbs
• Torque Capacity Over OE: 1.03
• Product Weight: 15.2 lbs
• Disc Material: Ceramic
• Disc Type: Solid
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes
• Release Bearing Included: Yes
• Grease Included: Yes

Installation Notes

This kit does not include a clutch master cylinder, pressure plate bolts, or a clutch slave cylinder. For detailed installation instructions, refer to the installation guide.

Fitment

Confirmed fitment for the Mazda RX-7 (1993-1995). Ensure compatibility with your specific vehicle before installation.
