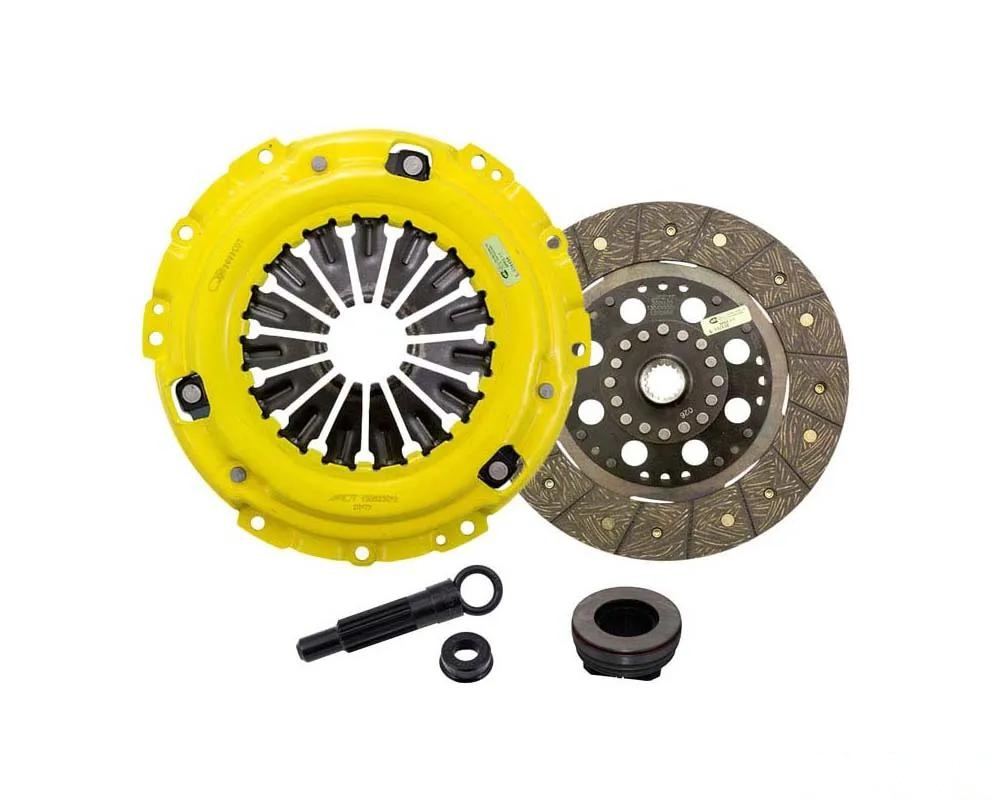

ACT DN3-XTSD Clutch Kit

The ACT DN3-XTSD is engineered for those who demand exceptional performance from their clutch system. This kit features the Xtreme pressure plate, designed specifically for high-performance applications. Utilizing an exclusive diaphragm design, the DN3-XTSD increases clamp load while minimizing deflection, effectively extending the lifespan of your clutch. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring maximum durability and reliability under stress.

Key Features

• Moderate to heavy pedal effort with smooth, positive engagement.
• Increased gear rattle due to the rigid design, which may also lead to higher spline wear.
• Precision balancing and premium organic friction materials enhance heat tolerance and prevent warping of mating surfaces.
• Suitable for both street and race applications.
• 100% clamp load tested and dynamically balanced for reliable performance at high RPMs.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in
• Product Weight: 14.4 lbs
• Torque Capacity: 540 ft/lbs
• Torque Capacity Over OE: 0.72
• Pressure Plate Type: Xtreme
• Alignment Tool Included: Yes
• Rivet design selected for maximum strength and durability.

Installation Notes

• Conversion Kit: Replaces modular clutch. Requires an ACT flywheel (not included).
• Pressure plate bolts (M8-1.25 x 16mm) are included.

Fitment

This clutch kit is compatible with the following:

• Dodge Neon (2000-2005)

For installation instructions, CLICK HERE.
