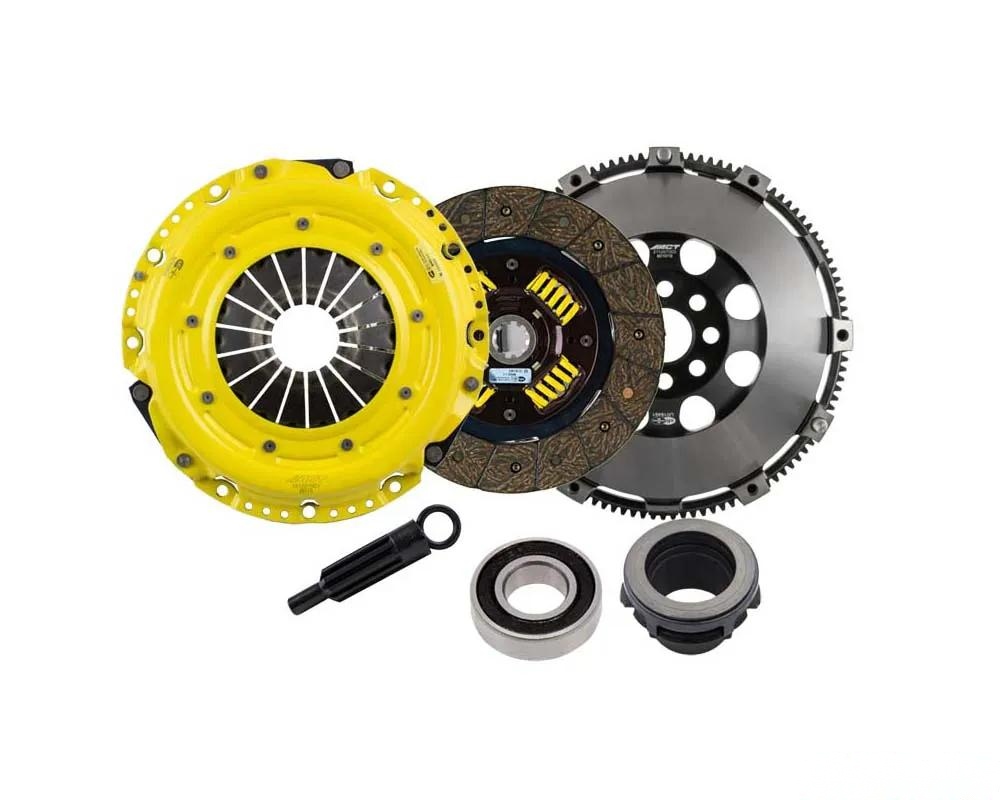

ACT Advanced Clutch XT/Perf Street Sprung Kit - BM13-XTSS

If you're looking to upgrade your BMW's clutch system for both street and race applications, the ACT Advanced Clutch XT/Perf Street Sprung Kit (BM13-XTSS) is engineered for enthusiasts who demand performance without compromise. This kit features an Xtreme pressure plate that’s perfect for spirited driving, ensuring your clutch can handle the most demanding situations.

Why Choose the BM13-XTSS?

The Xtreme pressure plate utilizes a unique diaphragm design that boosts clamp load while minimizing deflection, significantly enhancing clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring durability and performance that you can rely on. Precision cover stampings provide the rigidity necessary for consistent performance during high RPMs.

The Performance street discs included in this kit are among the most sought-after options available. Constructed from premium organic materials with high copper content, they excel in heat transfer and durability. The steel-backed lining enhances burst strength, while the reduced marcel ensures quicker shifts, giving you that extra edge on the road or track.

Installation and Compatibility

For those ready to tackle the installation themselves, detailed instructions can be found here.

Key Features

• Moderate to heavy pedal effort with smooth engagement and minimal gear rattle.
• Extended friction life thanks to ACT's exclusive diaphragm design.
• Engineered with premium organic friction materials for heat tolerance and reduced fade.
• Ideal for street and race use.
• 100% clamp load tested and dynamically balanced for reliability at high RPMs.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: Yes
• Pilot Bearing Included: Yes
• Flywheel Type: Prolite
• Product Weight: 24.9 lbs
• Torque Capacity: 549 ft/lbs
• Torque Capacity Over OE: 0.79

Important Notes

• This is a conversion kit that includes the ACT Prolite flywheel. The ACT flywheel must be used as part of this kit.
• Flywheel bolts (M12-1.5 x 30mm) and pressure plate bolts (M8-1.25 x 20mm) are included.

Fitment

The BM13-XTSS kit is compatible with the following BMW models:

• BMW 318i (1996-1999)
• BMW 318is (1996-1999)
• BMW 318ti (1996-1999)
• BMW 323Ci (2000)
• BMW 323i (1998-2000)
• BMW 323is (1998-1999)
• BMW 325Ci (2001-2003)
• BMW 325i (1992 & 2001-2003)
• BMW 325is (1992)
• BMW 325xi (2001-2003)
• BMW 328Ci (2000)
• BMW 328i (1996-2000)
• BMW 328is (1996-1999)
• BMW 330Ci (2001-2003)
• BMW 330i (2001-2003)
• BMW 330xi (2001-2003)
• BMW 525i (1991-1995 & 2001-2003)
• BMW 528i (1997-2000)
• BMW 530i (2001-2003)
• BMW M3 (1996-1999)
• BMW Z3 (1996-2002)
• BMW Z3 M (1998-2002)
