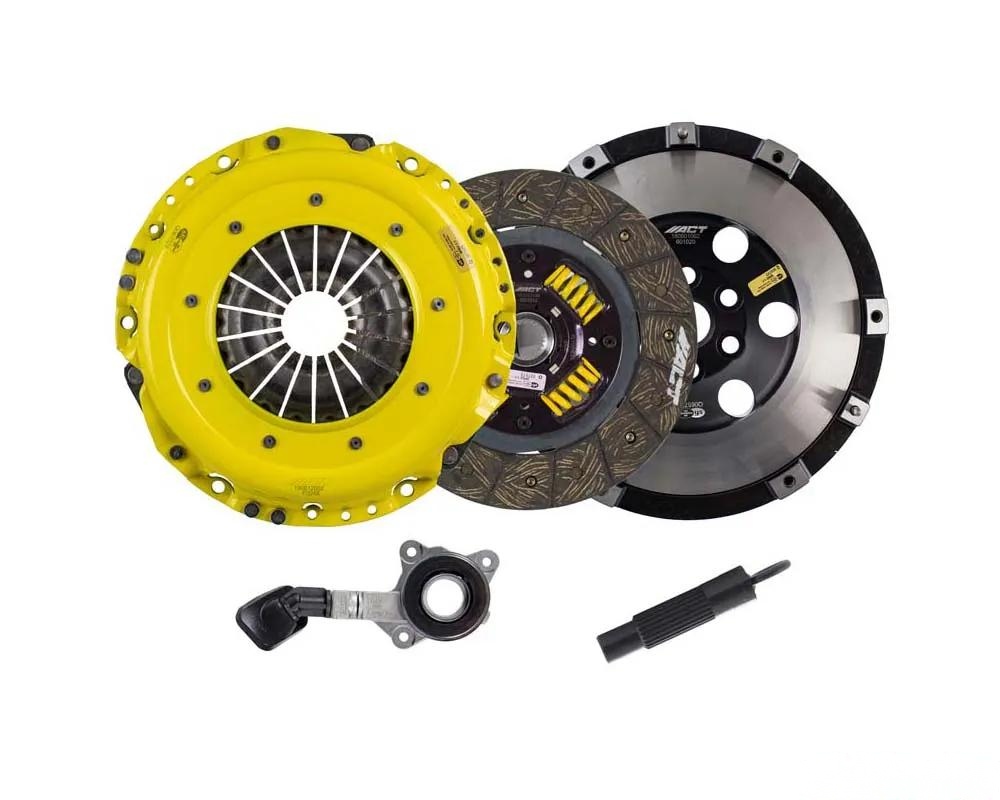

ACT FF5-XTSS Clutch Kit

The ACT FF5-XTSS is designed for drivers who demand high performance and reliability from their clutch systems. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design, which enhances clamp load, minimizes deflection, and extends clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring optimal performance under extreme conditions.

Pressure Plate Features

• Precision cover stampings for enhanced rigidity and consistency
• 100% clamp load tested to guarantee reliability
• Dynamically computer balanced for smooth operation at high RPMs

Clutch Disc Specifications

The performance street discs included in this kit are made from premium organic materials with a high copper content, which improves heat transfer. The steel-backed lining provides superior burst strength and durability. Reduced marcel in the discs allows for quicker shift action, making this kit ideal for both street and track applications.

Installation and Components

Each FF5-XTSS kit comes with essential components for installation, including:

• Pressure plate bolts (M8-1.25 x 20mm)
• Alignment tool for precise setup
• Release bearing for smooth operation

Note: Clutch master cylinder, pilot bushing, clutch slave cylinder, and flywheel bolts are not included.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Torque Capacity: 582 ft/lbs
• Torque Capacity Over OE: 0.58
• Product Weight: 29.6 lbs

Fitment

The ACT FF5-XTSS is compatible with the following models:

• Ford Focus 2013-2018
• Ford Focus RS 2015-2019
• Ford Focus ST 2015-2020

Installation Instructions

For detailed installation instructions, CLICK HERE.
