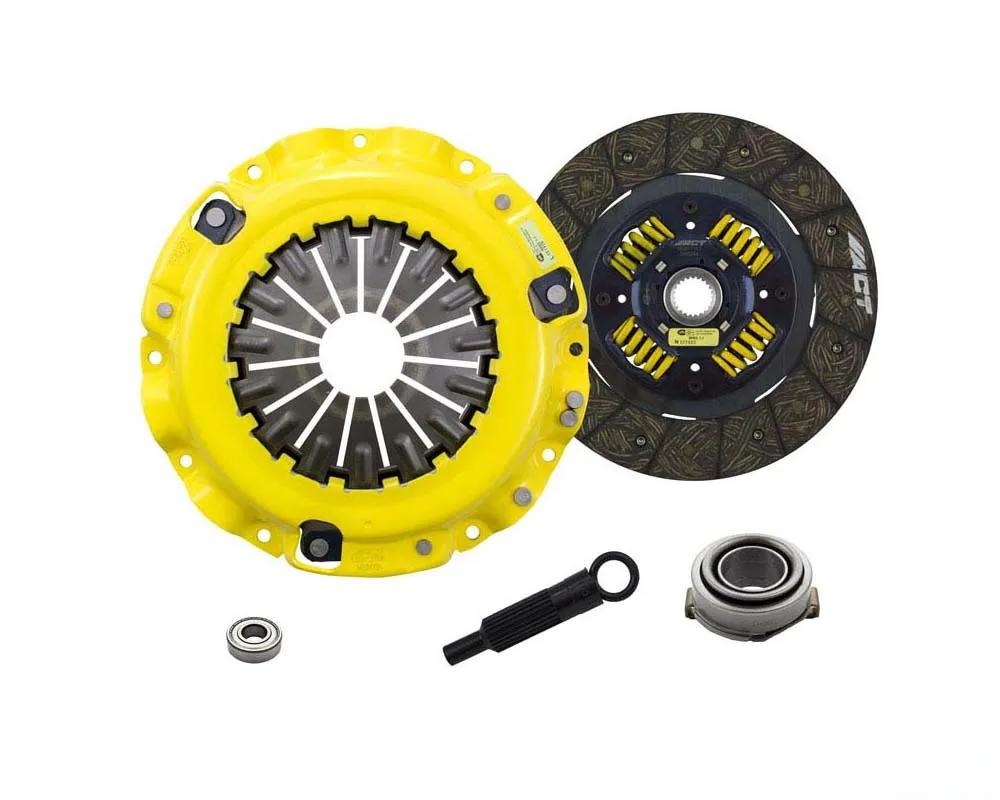

ACT Z64-XTSS Advanced Clutch Kit

The ACT Z64-XTSS is designed for those who demand nothing but the best from their vehicle's performance. This advanced clutch kit features the Xtreme pressure plate, perfect for both spirited driving and competitive racing. With its unique diaphragm design, the Z64-XTSS increases clamp load while minimizing deflection, which ultimately extends the life of your clutch.

One of the standout features of this kit is its four-stage heat-treating process applied to all diaphragms, ensuring remarkable durability and performance. The precision cover stampings of the ACT pressure plates provide superior rigidity and consistency, making it a reliable choice for a variety of driving conditions.

Customers have noted that the Z64-XTSS offers a moderate to heavy pedal effort, which allows for smooth engagement and a satisfying driving experience. Many have praised its quiet operation and increased strength, making it a popular choice for both street and track use.

Features:

• Moderate to heavy pedal effort with smooth engagement and minimal gear rattle.
• Longer friction life thanks to ACT's exclusive diaphragm design.
• Engineered with premium organic friction materials for heat tolerance and reduced fade.
• Recommended for both street and race applications.
• 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 16.2 lbs
• Torque Capacity: 440 ft/lbs
• Torque Capacity Over OE: 0.8

Fitment:

The Z64-XTSS is compatible with the following vehicles:

• Ford Probe (1989-1992)
• Mazda 626 (1988-1991)
• Mazda MX-6 (1988-1992)

Installation Instructions:

For detailed installation instructions, CLICK HERE.

In summary, the ACT Z64-XTSS is an excellent choice for drivers looking to enhance their vehicle's performance. With its robust construction and thoughtful engineering, this clutch kit promises to deliver the reliability and responsiveness you need on the road or track.
