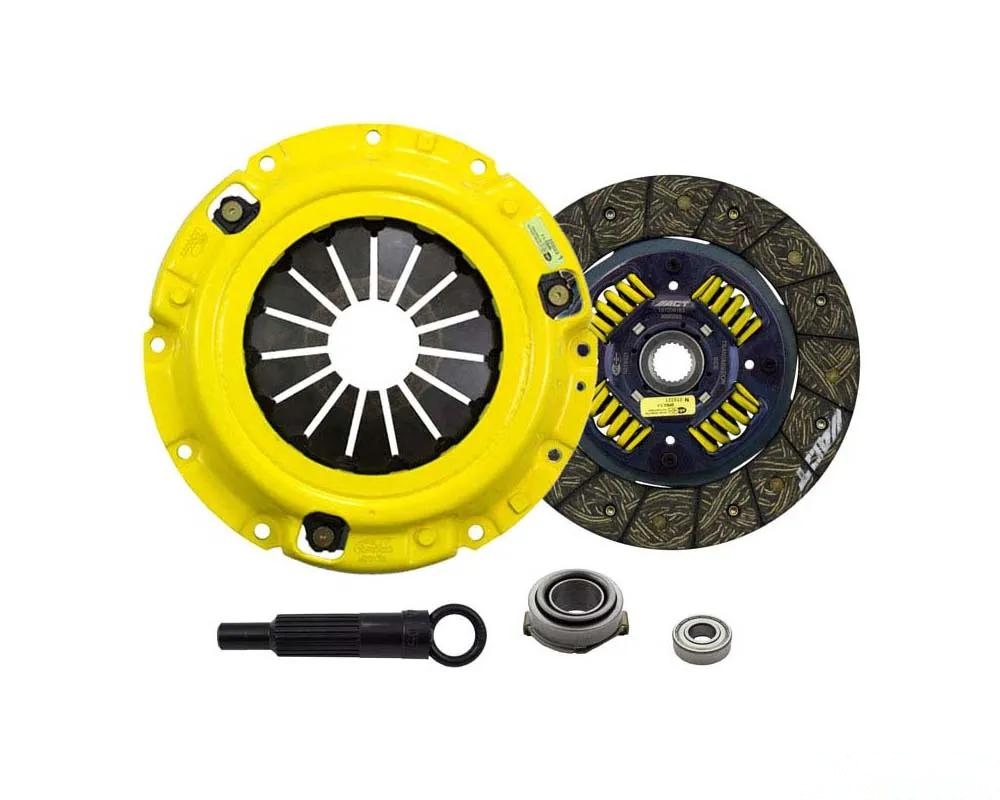

ACT FC2-XTSS Clutch Kit: Performance Meets Durability

If you're a Ford Ranger owner from 1983-1984 or 1993-1997, the ACT FC2-XTSS Clutch Kit is designed for you. This kit features an Xtreme pressure plate that caters to the most demanding drivers, ensuring that your clutch can handle the heat of both street and track use. With a unique diaphragm design, this pressure plate increases clamp load while reducing deflection, which translates into longer clutch life and consistent performance under pressure.

Key Features

• Moderate to heavy pedal effort with smooth engagement, perfect for spirited driving.
• Extended friction life thanks to ACT's exclusive diaphragm design.
• Engineered with premium organic materials that provide excellent heat tolerance and reduced fade.
• Ideal for both street and race applications.
• 100% clamp load tested and dynamically balanced for high RPM reliability.

Technical Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Torque Capacity: 350 ft/lbs
• Weight: 14.6 lbs
• Disc Material: Organic
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Instructions

Ready to install? For detailed installation instructions, CLICK HERE.

Real-World Feedback

A 1997 Ford Ranger owner shared, "I installed the ACT FC2-XTSS clutch kit last weekend, and the difference is night and day. The pedal feel is solid, and I can definitely feel the added torque capacity during hard pulls. No more slipping under load!"

Upgrade your Ford Ranger's performance with the ACT FC2-XTSS Clutch Kit, and experience the difference that a high-quality clutch can make. Whether you're hitting the streets or the track, this kit is built to perform.
