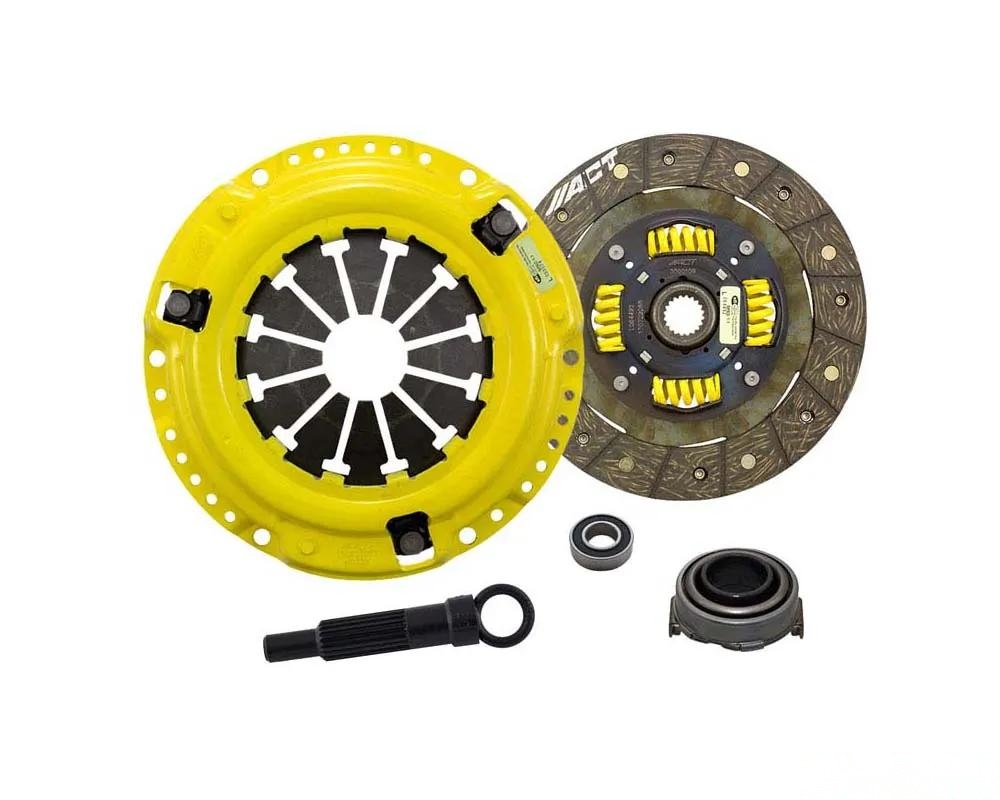

ACT HC5-XTSS Clutch Kit

The ACT HC5-XTSS clutch kit is engineered for those who demand high performance from their vehicles. This kit features the Xtreme pressure plate, designed with an exclusive diaphragm that enhances clamp load while minimizing deflection, ultimately extending clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring maximum durability and performance under stress.

Pressure Plate Features

• Precision cover stampings provide enhanced rigidity and consistency.
• 100% clamp load tested for reliability at high RPMs.
• Dynamically balanced for smooth operation.

Performance Street Disc

The Performance street discs included in this kit are made from premium organic materials, featuring a high copper content that promotes better heat dissipation. The steel-backed lining increases burst strength and durability, while a reduced marcel design allows for quicker shift actions, making it ideal for both street and race applications.

Installation Notes

• For detailed installation instructions, CLICK HERE.

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Organic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 295 ft/lbs
• Product Weight: 10.5 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Compatible Vehicles

• Acura EL (1997-2005)
• Honda Civic (1992-2005)
• Honda del Sol (1993-1997)
