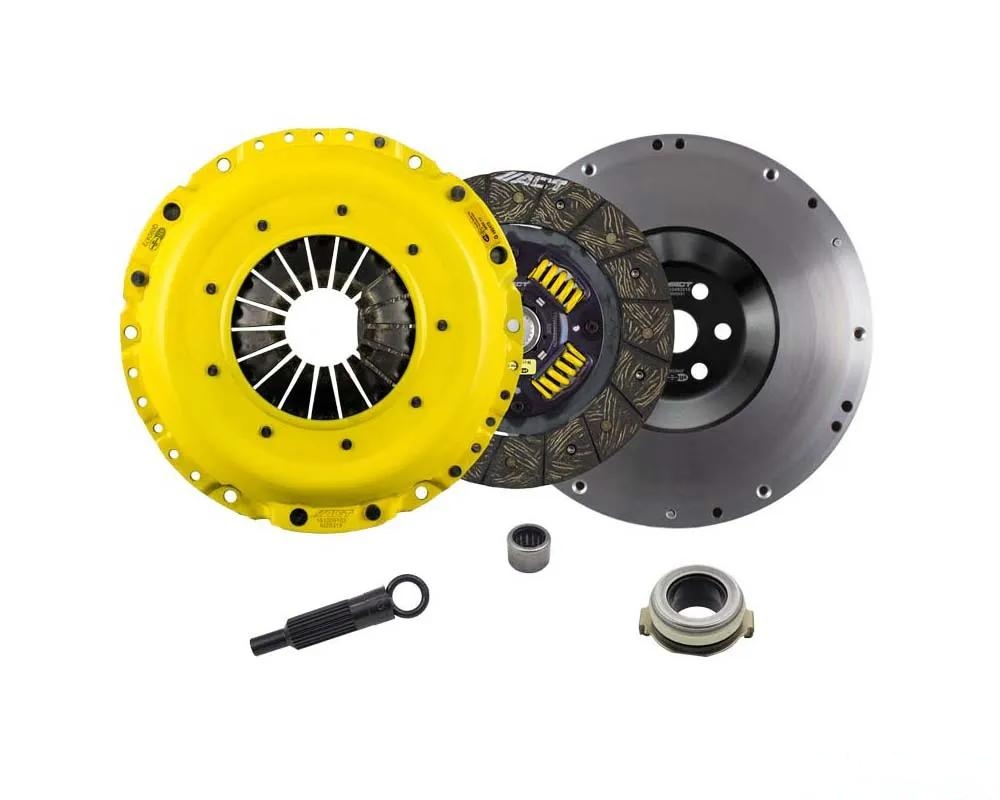

ACT ZX5-XTSS Clutch Kit

The ACT ZX5-XTSS is engineered for drivers demanding high-performance clutch engagement and durability. This kit features an Xtreme pressure plate designed with an exclusive diaphragm that increases clamp load while minimizing deflection, ensuring maximum clutch life even under rigorous conditions.

Key Features

• Moderate to heavy pedal effort with smooth engagement, suitable for both street and race applications.
• Extended friction life due to ACT's unique diaphragm design that enhances durability.
• Precision-engineered and dynamically balanced for reliable high RPM performance.
• Utilizes premium organic friction materials with high copper content for superior heat transfer and reduced fade.
• Quiet operation combined with increased strength for reliable performance.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Torque Capacity: 532 ft/lbs
• Weight: 37.7 lbs
• Pressure Plate Type: Xtreme
• Flywheel Type: Streetlite
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes
• Pressure Plate Bolts Included: Yes (M8-1.25 x 16mm)

Installation Notes

• Installation requires the use of the included ACT Streetlite flywheel.
• For detailed installation instructions, CLICK HERE.

Fitment

The ACT ZX5-XTSS clutch kit is compatible with the following vehicles:

• Mazda 3 (2004-2013)
• Mazda 6 (2003-2008)
