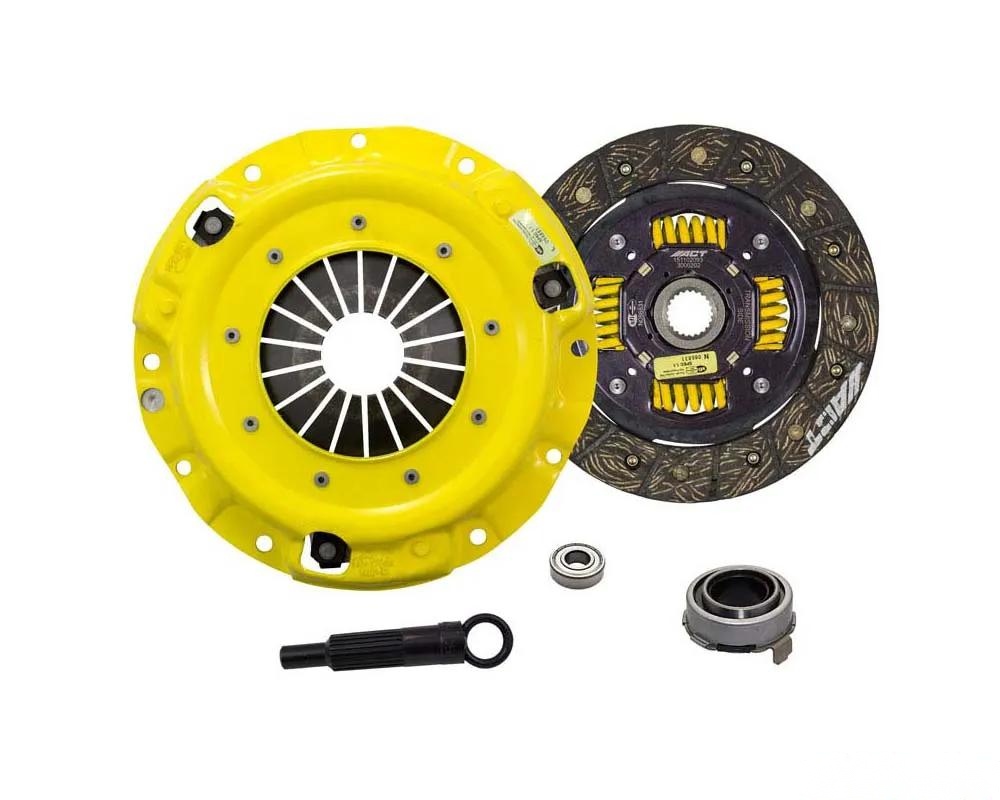

If you're looking to step up your clutch game, the Advanced Clutch XT/Perf Street Sprung Kit ZM1-XTSS is the way to go. This kit packs an Xtreme pressure plate that's built for those of us who really push our rides. The design of the ACT Xtreme pressure plates is no joke?they've got a unique diaphragm setup that ramps up the clamp load, cuts down on deflection, and helps your clutch last longer. Seriously, these things go through a four-stage heat-treating process, and that?s just one of the reasons they perform like champs.

The pressure plates are also crafted with precision cover stampings, so you know they?re rigid and consistent. And let?s talk about the discs. The ACT Performance street discs are a favorite for a reason. They?re made from high-quality organic materials with a good amount of copper mixed in, which means they handle heat better than your average disc. Plus, they have a steel-backed lining to boost burst strength and durability. You?ll notice the reduced marcel, which means quicker shifts?perfect for those spirited drives.

Now, if you're wondering about the pedal feel, expect a moderate to heavy effort with smooth engagement. You might hear a bit of gear rattle, but that?s just part of the game when you?re pushing the envelope. The friction life is longer thanks to ACT?s smart diaphragm design, and these components are engineered for both street and race use. Each unit is clamp load tested and dynamically balanced, so you can count on it to hold up at high RPMs without a hitch.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Moderate to heavy pedal effort with smooth engagement
• Longer friction life, thanks to the exclusive diaphragm design
• Engineered with premium organic materials for heat tolerance and reduced fade
• Perfect for both street and race applications
• 100% clamp load tested for reliable high RPM performance

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 7.9 in (200 mm)
• Disc Material: Organic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 10.9 lbs
• Torque Capacity: 270 ft/lbs
• Torque Capacity Over OE: 1

Notes:

• This kit must be used with a factory flywheel.

So if you?re rocking a Mazda Miata from 1990 to 1997, this ZM1-XTSS ACT kit is a solid choice. It?s built to handle the demands of serious driving while keeping everything smooth and reliable.
